6-21

LOWR

LOWER CASE

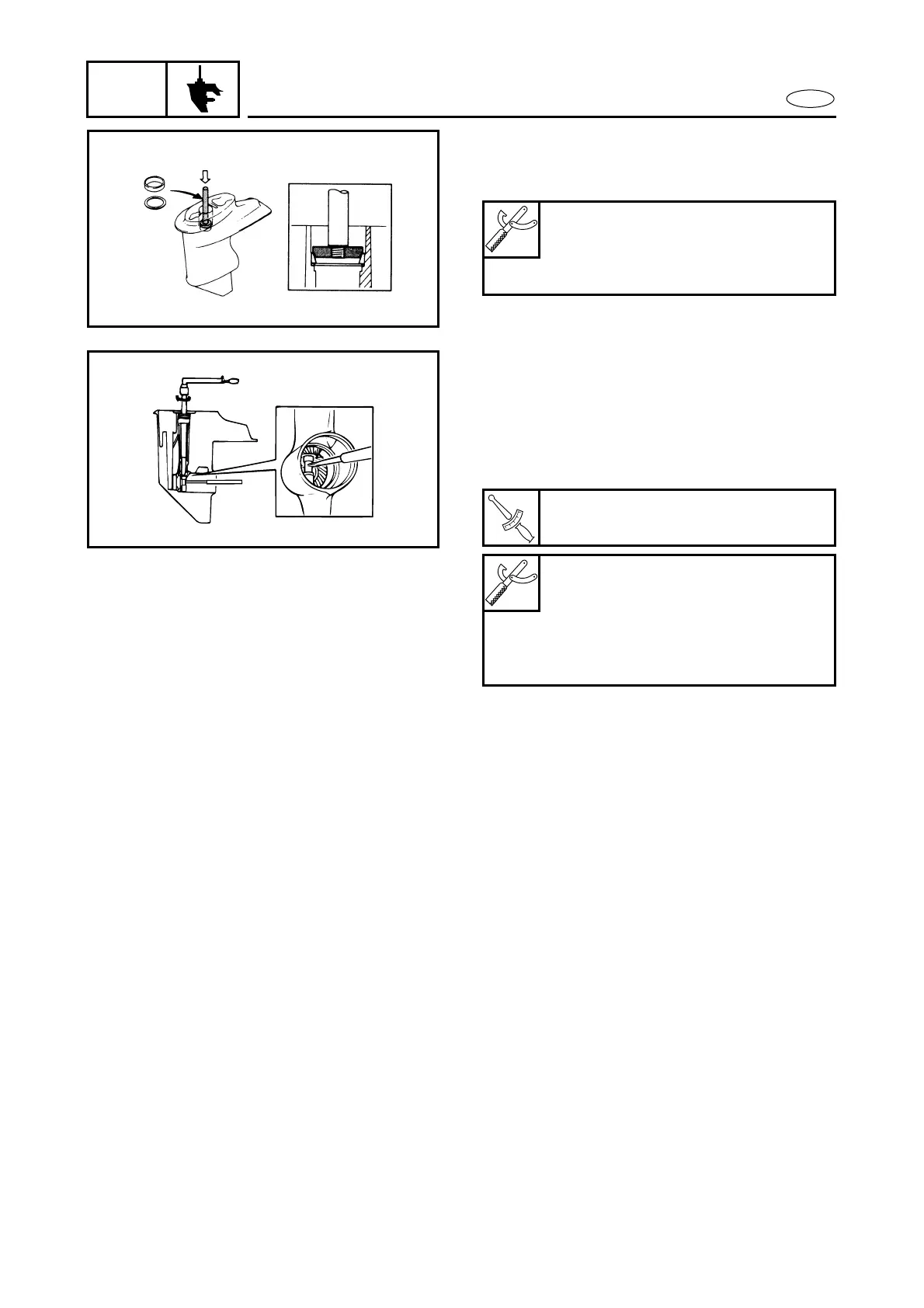

3. Install:

● Pinion gear shim(s)

● Drive shaft bearing outer race

Driver rod:

YB-06071/90890-06606

Bearing outer race installer:

YB-06156/90890-06626

Drive shaft installation

1. Install:

● Forward gear assy.

● Pinion gear

● Drive shaft assy.

● Pinion gear nut

Pinion gear nut:

95 Nm (9.5 m • kg, 68 ft • lb)

Pinion nut holder:

90890-06505

Adapter:

90890-06507

Drive shaft holder:

YB-06151/90890-06519
