LOWR

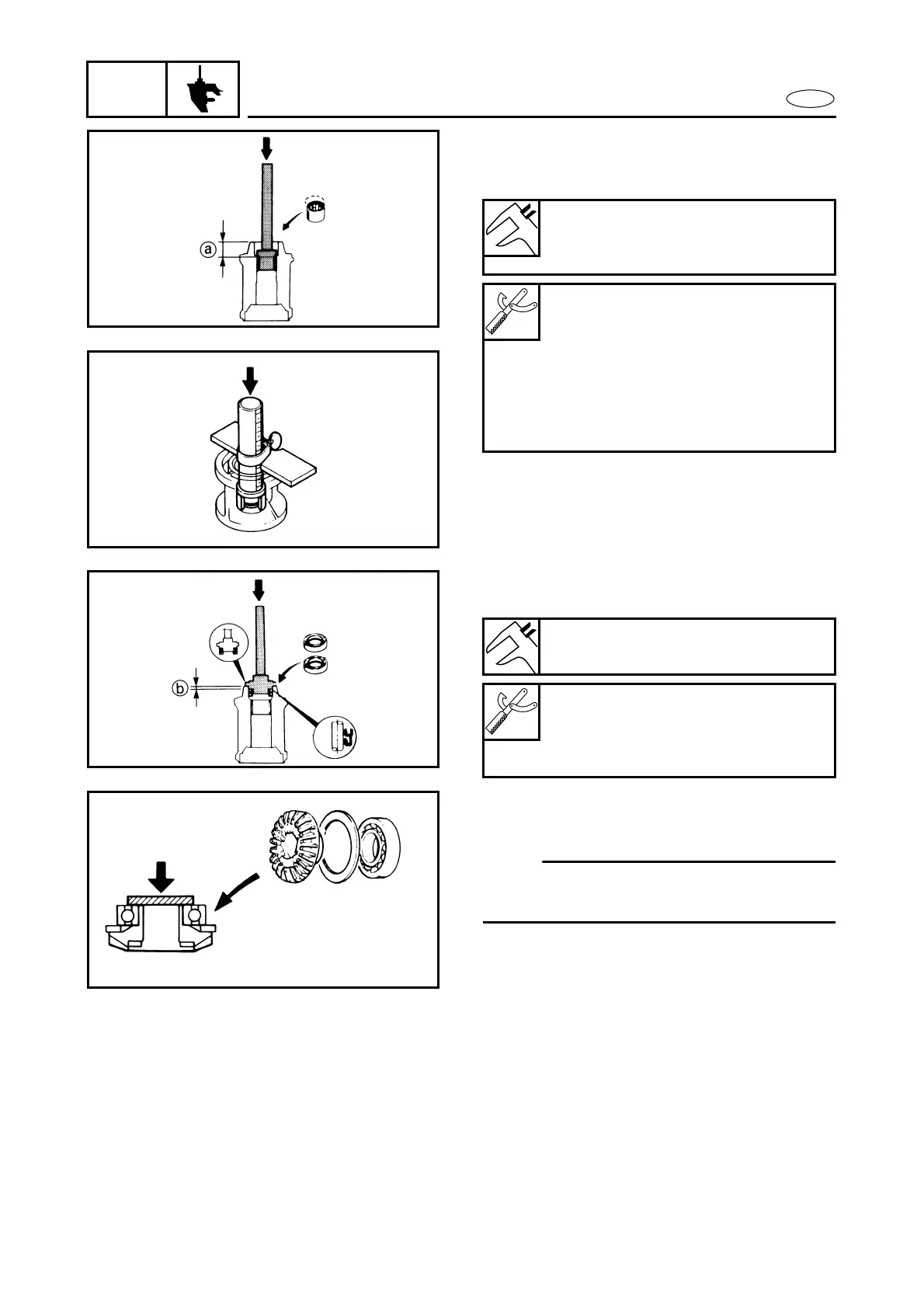

PROPELLER SHAFT HOUSING ASSY.
Propeller shaft housing assy. assembly
1. Install:
● Needle bearing
Å For USA and CANADA
ı For worldwide
Position a:
25.00 ~ 25.50 mm
(0.984 ~ 1.004 in)
Needle bearing attachment:
YB-06153/90890-06612
Driver rod:
YB-06071
Driver rod-S:
90890-06604
Bearing depth plate:
90890-06603
Å
ı
2. Install:
● Oil seal
Position b:
4.5 ~ 5.5 mm (0.177 ~ 0.216 in)
Needle bearing attachment:
YB-06269/90890-06633
Driver rod:
YB-06071/90890-06652
3. Install:
● Propeller shaft housing
NOTE:
Install the thrust washer and then press-fit
the ball bearing onto the reverse gear.
