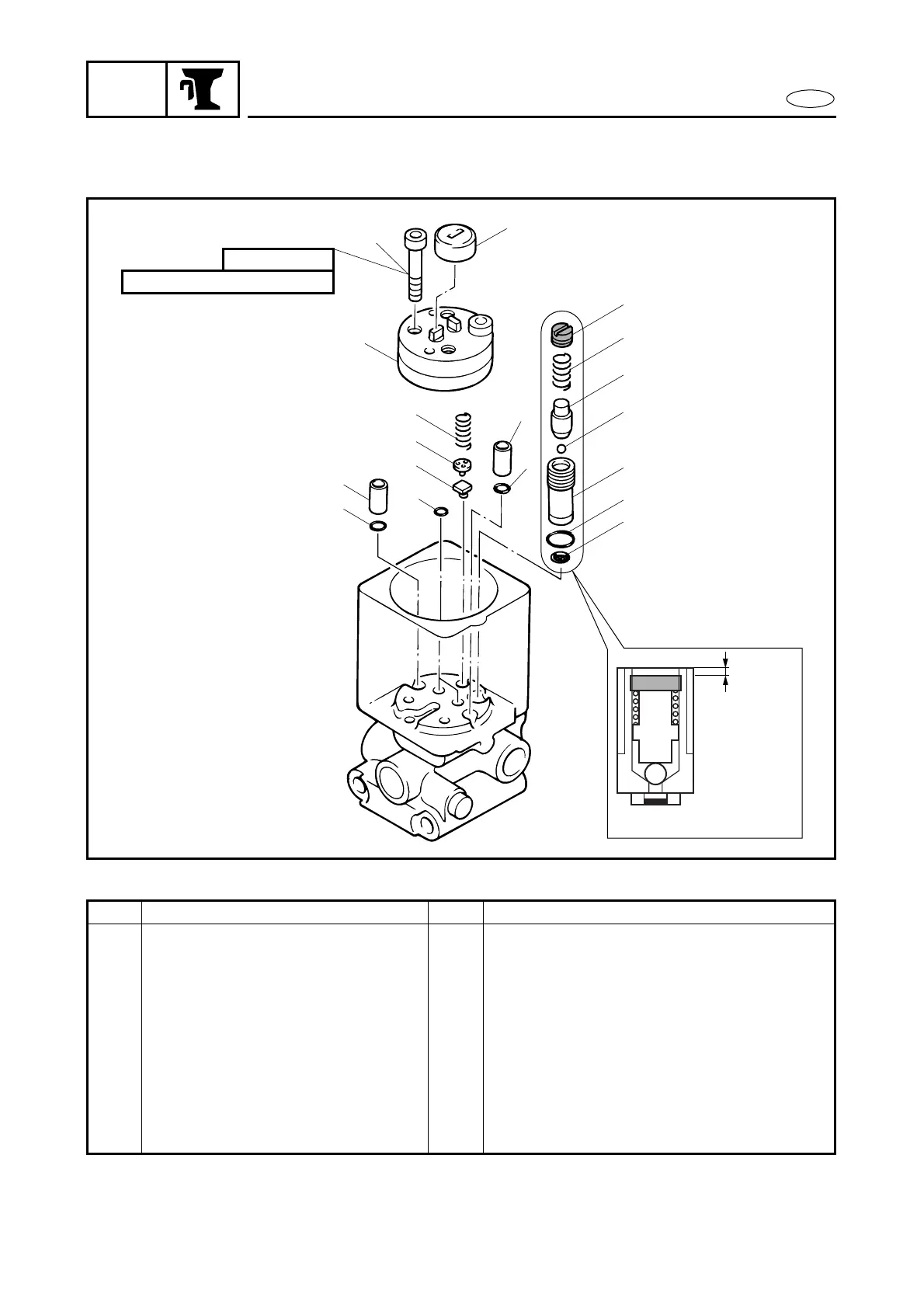

Yamaha F100X - Gear Pump Exploded Diagram

7-32
E
BRKT
GEAR PUMP
GEAR PUMP
EXPLODED DIAGRAM
2
1
3
4
5
6
7
8
9
4
5
10
11
12
13
14
15
16
6 × 35 mm
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
2.2 mm
(0.087 in)
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
GEAR PUMP REMOVAL Follow the left “Step” for removal.
PTT motor Refer to “PTT MOTOR, PUMP HOUSING,
AND TILT CYLINDER”.
1 Joint 1
2 Bolt 3
3 Gear pump assy. 1
4 Filter 2
5 O-ring 2
6 O-ring 2
7 Spring 1
