5-3

POWR

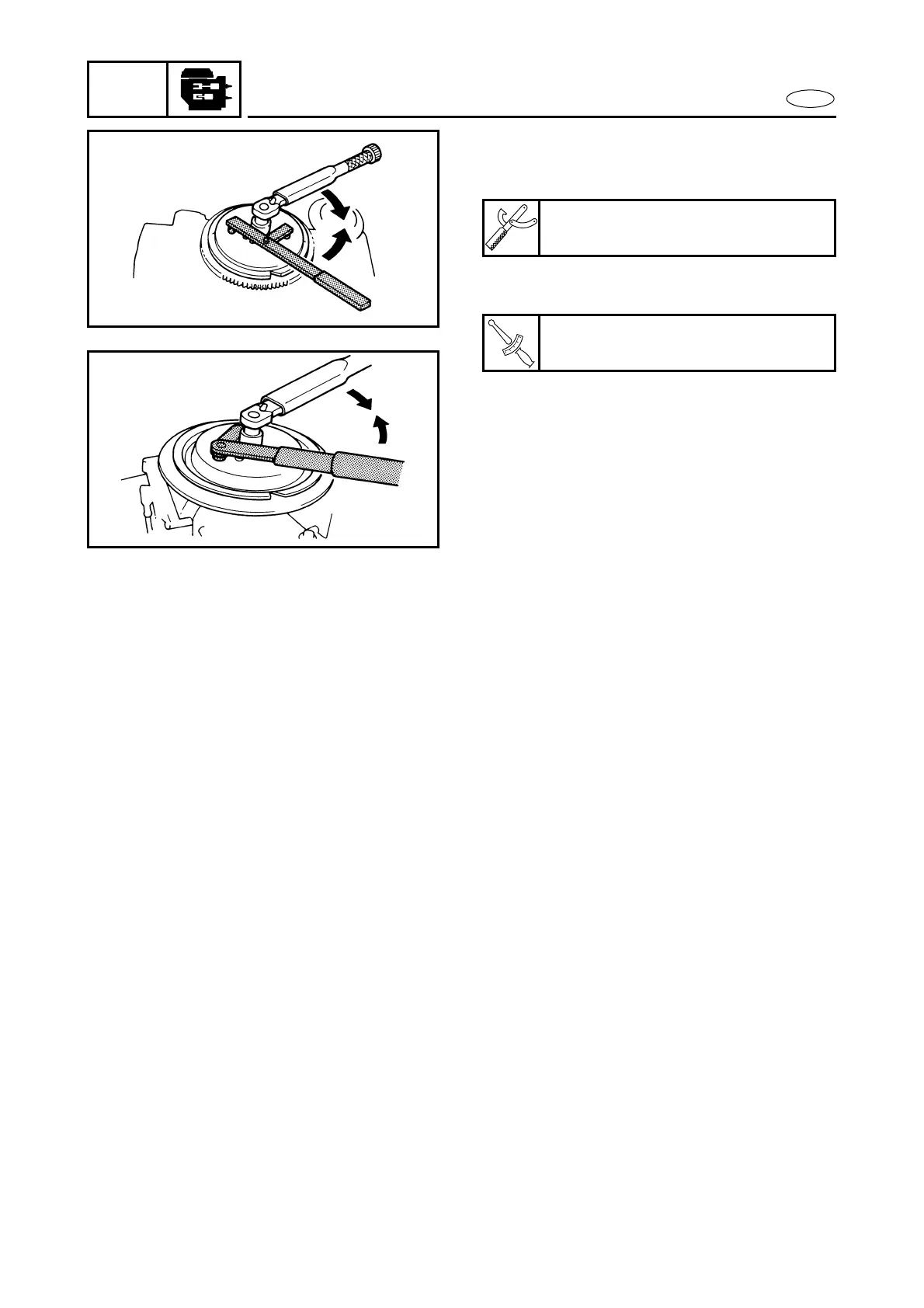

FLYWHEEL MAGNETO

Flywheel magneto installation

1. Install:

●

Flywheel magneto nut

For USA and CANADA

For worldwide

Flywheel holder:

YB-06139/90890-06522

Flywheel magneto nut:

190 Nm (19.0 m • kg, 137 ft • lb)
