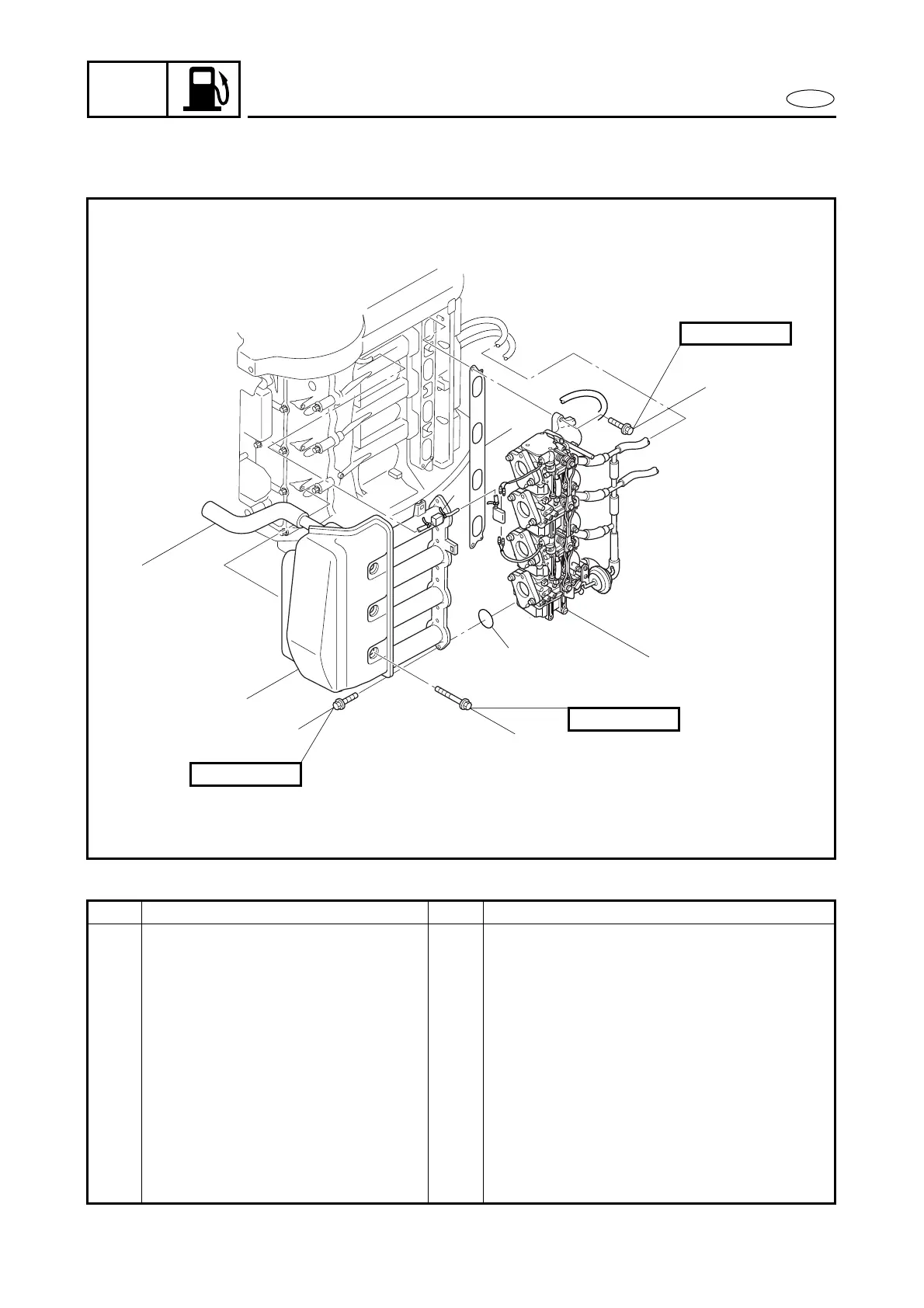

Yamaha F100X - Intake Assy. Exploded Diagram

4-9
E
FUEL
INTAKE ASSY.
INTAKE ASSY.
EXPLODED DIAGRAM
1
2
3
6
4
5
7
9
8
8 × 35 mm
8 × 60 mm
6 × 16 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
INTAKE ASSY. REMOVAL Follow the left “Step” for removal.
Control unit Refer to “CONTROL UNIT”.
1 Plastic locking tie 1
2 Hose 1
3 Bolt 3
4 Bolt 8
5 Intake silencer 1
6 O-ring 4
7 Bolt 5
8 Intake assy. 1
9 Gasket 1
Reverse the removal steps for installation.
