FUEL

FUEL PUMPS

SERVICE POINTS

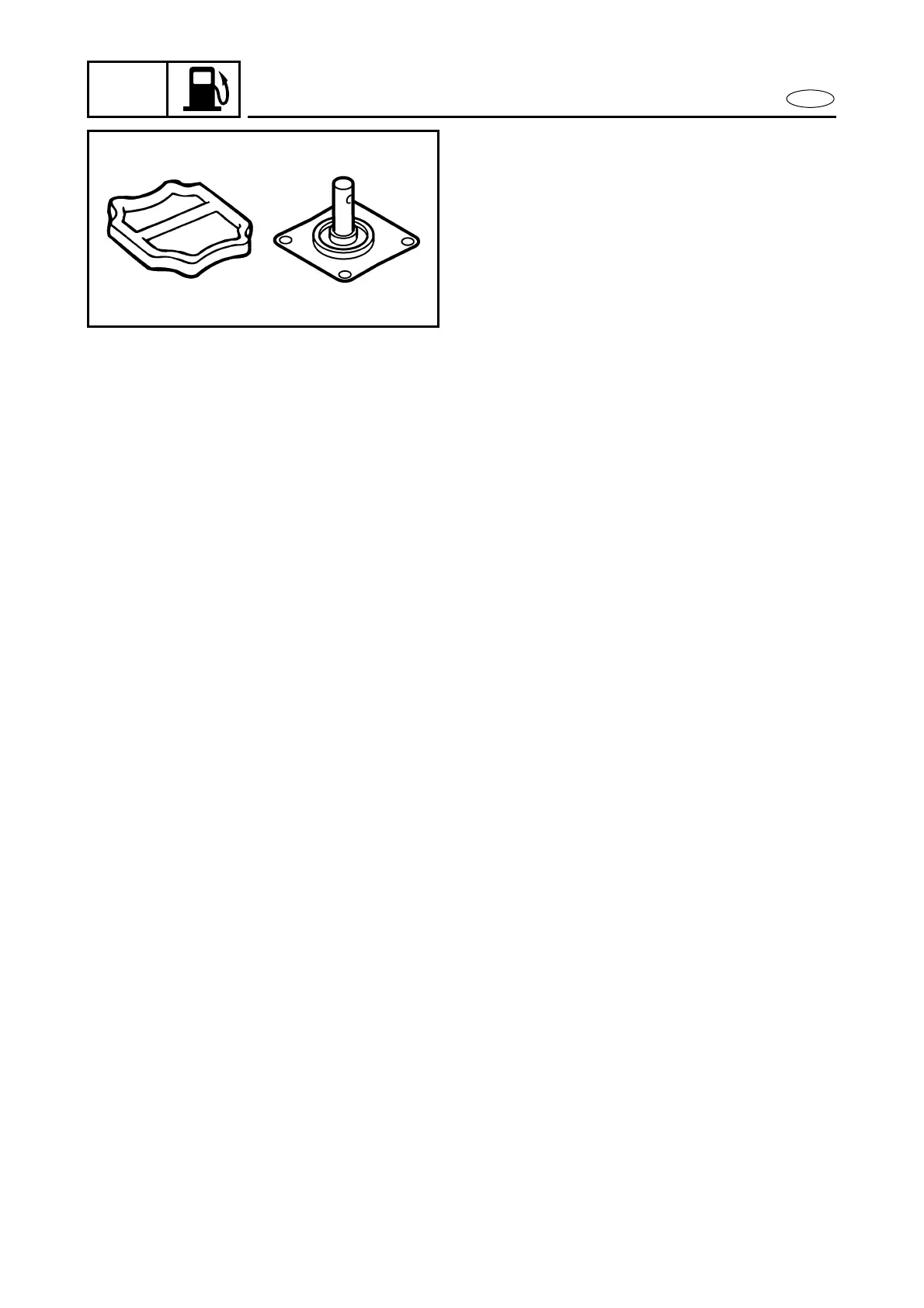

Fuel pump inspection

1. Inspect:

●

Diaphragms

Damage

→

Replace any defective

part.
