4-7

FUEL

CONTROL UNIT

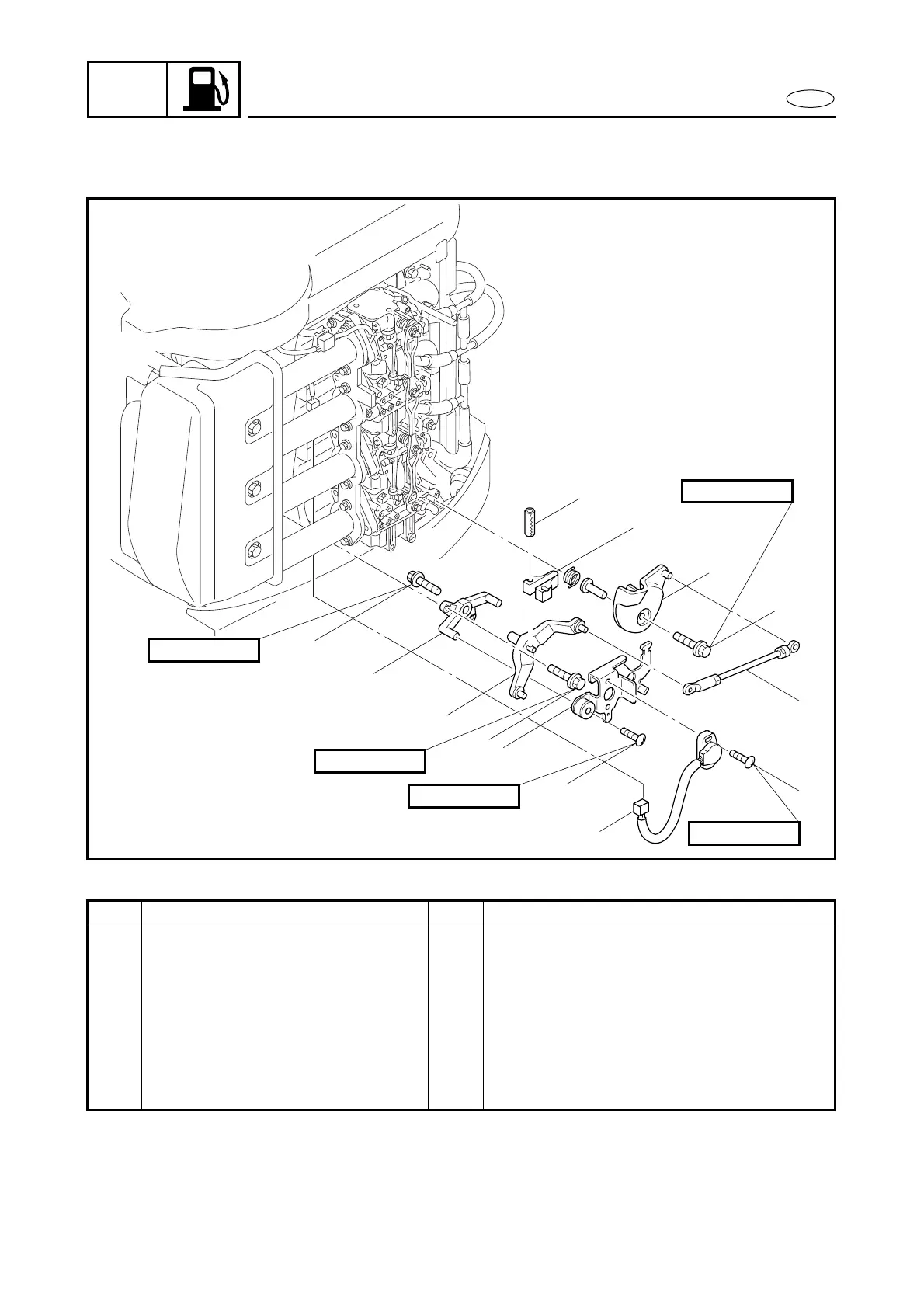

EXPLODED DIAGRAM

6 × 25 mm

6 × 30 mm

5 × 25 mm

5 × 10 mm

6 × 12 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

CONTROL UNIT REMOVAL

Follow the left “Step” for removal.

1 Throttle control shaft 1

2 Bolt 1

3 Accelerator cam 1

4 Screw 2

5 Throttle position sensor (TPS) 1

6 Screw 2

7 Bracket 1
