STARTING SYSTEM
BATTERY
Refer to “GENERAL” in chapter 3.

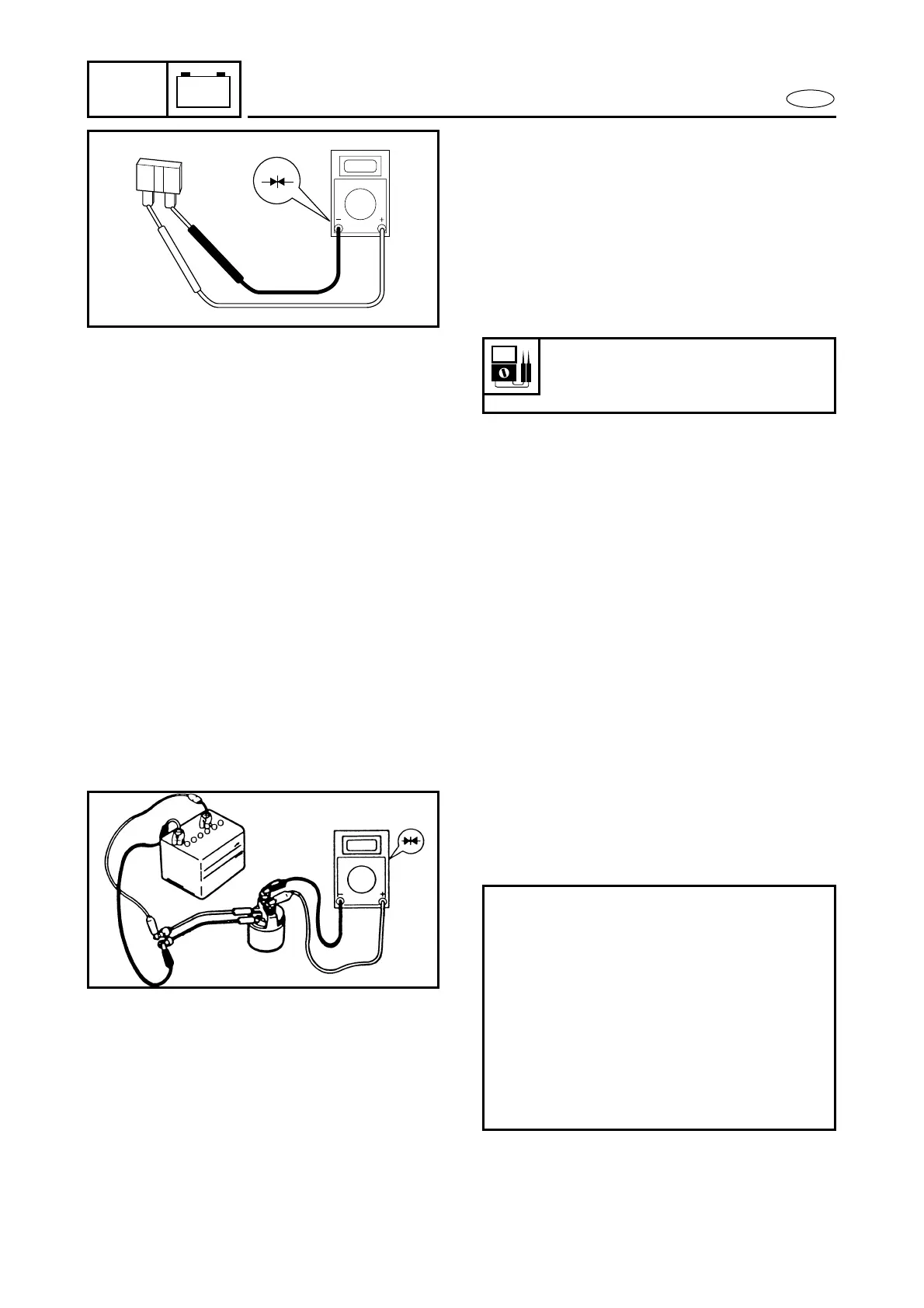

FUSES
1. Check:
● Fuse continuity
No continuity → Replace.
● Fuse rating
Out of specification → Replace.
WIRE HARNESS
1. Check:
● Wire harness continuity
No continuity → Replace.
WIRE CONNECTIONS
1. Check:
● Wire connections
Poor connections → Properly con-
nect.
Fuse rating:
20 A (main fuse)
30 A (starter fuse)
STARTER RELAY
1. Check:
● Starter relay
Faulty → Replace.
Checking steps:
● Connect the tester leads between the
starter relay terminals as shown.
● Connect the brown lead terminal to
the positive battery terminal.
● Connect the black lead terminal to the
negative battery terminal.
● Check that there is continuity between
the starter relay terminals.
● Check that there is no continuity after
the brown or black lead is removed.
