4-3

FUEL

FUEL PUMPS

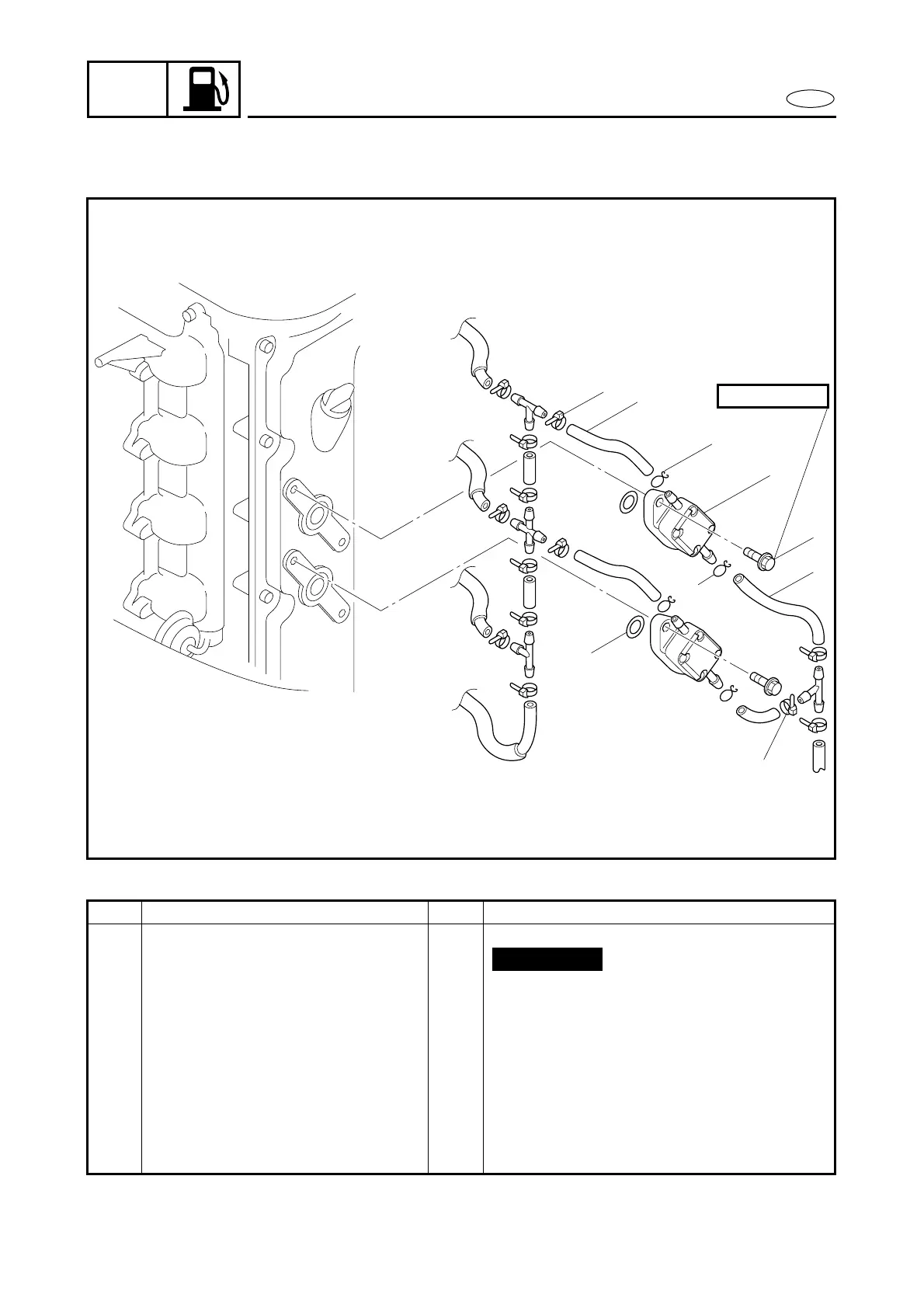

EXPLODED DIAGRAM

6 × 30 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

FUEL PUMP REMOVAL

Follow the left “Step” for removal.

1 Plastic locking tie 4

2 Clip 4

3 Fuel hose

(fuel pump-to-fuel hose joint)

4 Fuel hose

(fuel hose joint-to-fuel pump)

5 Bolt 4

6 Fuel pump 2

7 O-ring 2

Reverse the removal steps for installation.

Not reusable
