5.2.4 Connection via MIL Connectors
It is possible to connect a MIL cable to an I/O module directly without using a terminal block.
n
MIL Cable Connection
T
o prevent the MIL cable from being disconnected, a cable connector cover is required. The
cable connector cover is sold separately.
• SCCC01: for flat ribbon cable
• SCCC02: for discrete wire cables (DI, DO cables)
MIL connector
Connector cover

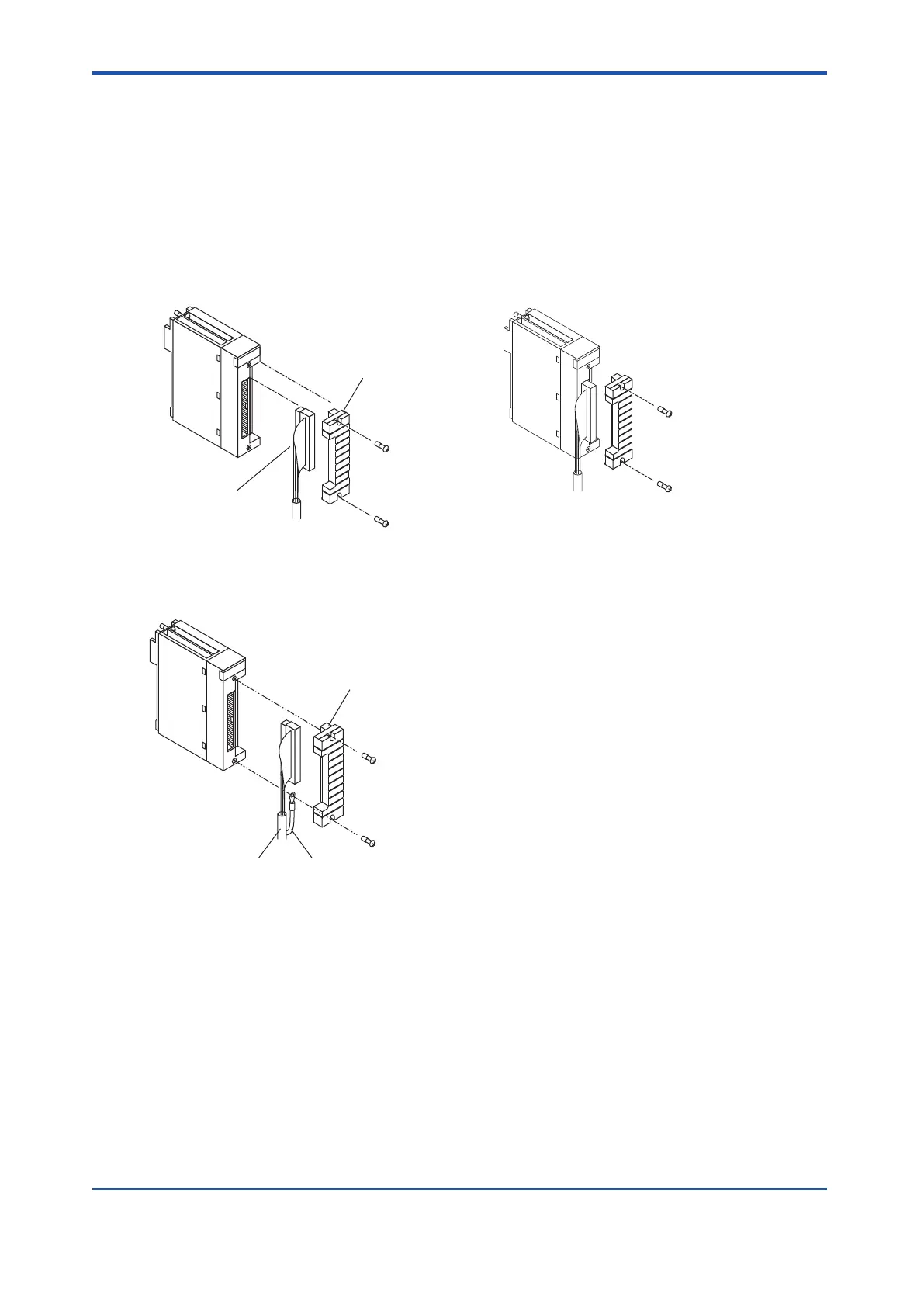

Figure 5.2.4-1 MIL Cable Connection
If the MIL cable has a shield wire, this wire needs to be fastened to the screw at the lower part
of the MIL cable connector cover
.
MIL cable
Connector cover
Sheathed cable
Figure 5.2.4-2 Shield Wire Connection
<5.2 How to Connect Signal Cables > 5-13
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
