YOKOGAWA SSC60D User Manual

4.2.3 Setting Switches
START
/STOP
BATTERY
ON
OFF
PORT
DOMN
STA
CN1
ON
OFF
START/STOP switch
Maintenance connector
Battery ON/OFF switch
Front setting switch
(6-bit dipswitch)

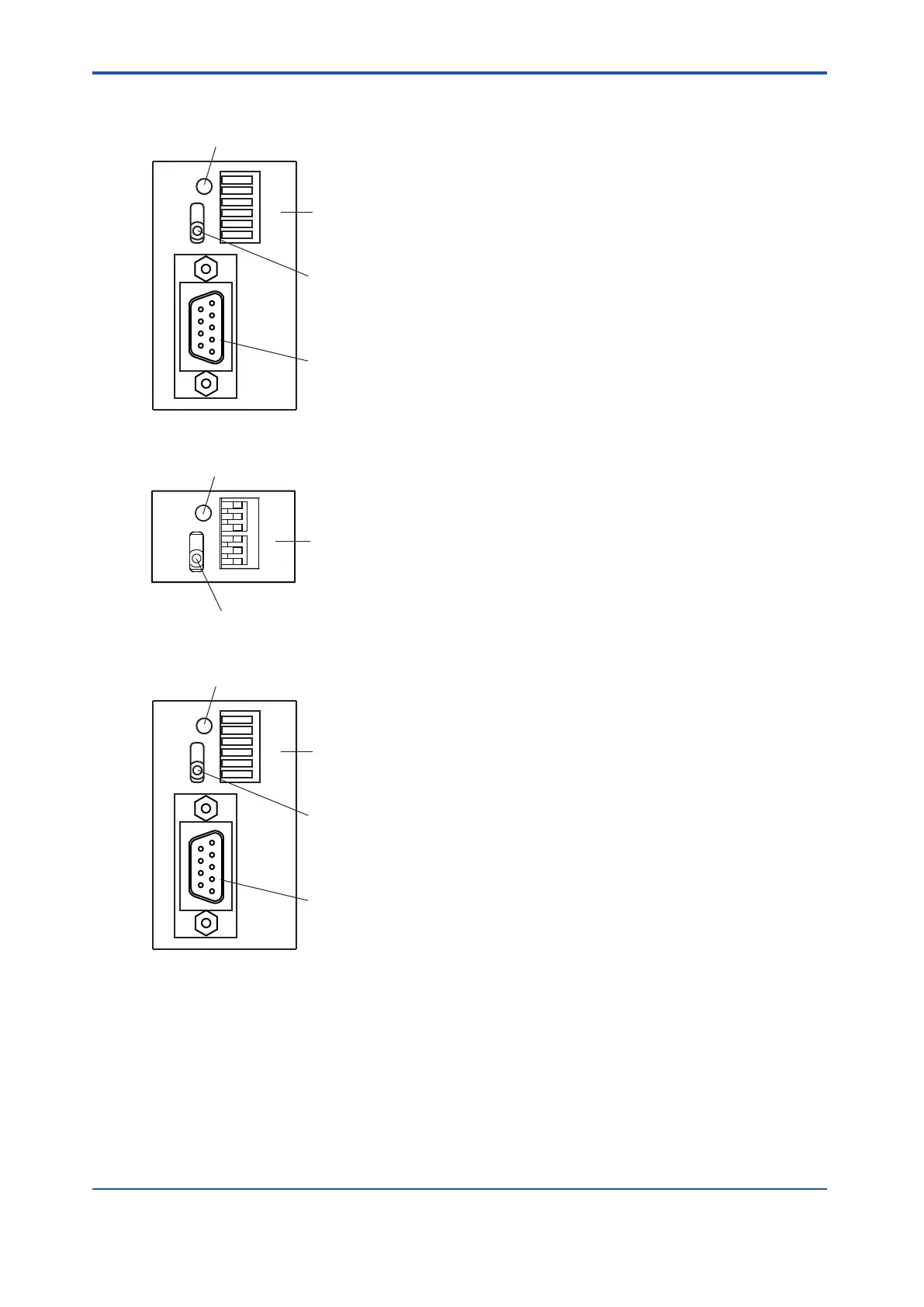

Figure 4.2.3-1 SCP401 Setting Switch
BATTERY
ON
OFF
PORT
FIX
DOMN
STA
ON
OFF
START
/STOP
START/STOP switch
Battery ON/OFF switch
Front setting switch
(6-bit dipswitch)
Figure 4.2.3-2 SCP461 Setting Switch
START
/STOP
BATTERY
ON
OFF
PORT
DOMN
STA
CN1
ON
OFF
FIX
START/STOP switch
Maintenance connector
Battery ON/OFF switch
Front setting switch
(6-bit dipswitch)
Figure 4.2.3-3 SCP451 Setting Switch
•
START/STOP:
This maintenance switch is used for forcing the processor module CPU stop or restart.
If this switch is pressed when the processor module is still operating, the CPU will stop. If
this switch is pressed when the processor module is not operating, the CPU will restart.
This switch is located inside a hole next to the START/STOP sign. Push the switch using
a non conductive slender bar of around 1 to 2 mm diameter.
• Battery ON/OFF switch:
<4.2 Processor Module > 4-8
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
