1.4.3 Communication Modules
The communication module is used for linking the safety control station with external devices
through the communication lines to convert the signals for data exchange.
n
T
ypes and External View of Communication Modules
The following types of communication modules are available:
• ALR111: RS-232C communication module
• ALR121: RS-422/RS-485 communication module
• ALE111: Ethernet communication module
When using ALE111, use the style S1 module with unit revision U:2 or later. The unit revision
is indicated on the top of the module. However
, the unit revision is not indicated if it is U:0.
ALR111
ALR121
STATUS
ACT
DX
TM1
RCV 1 2
SND 1 2
LED display
LED display close-up

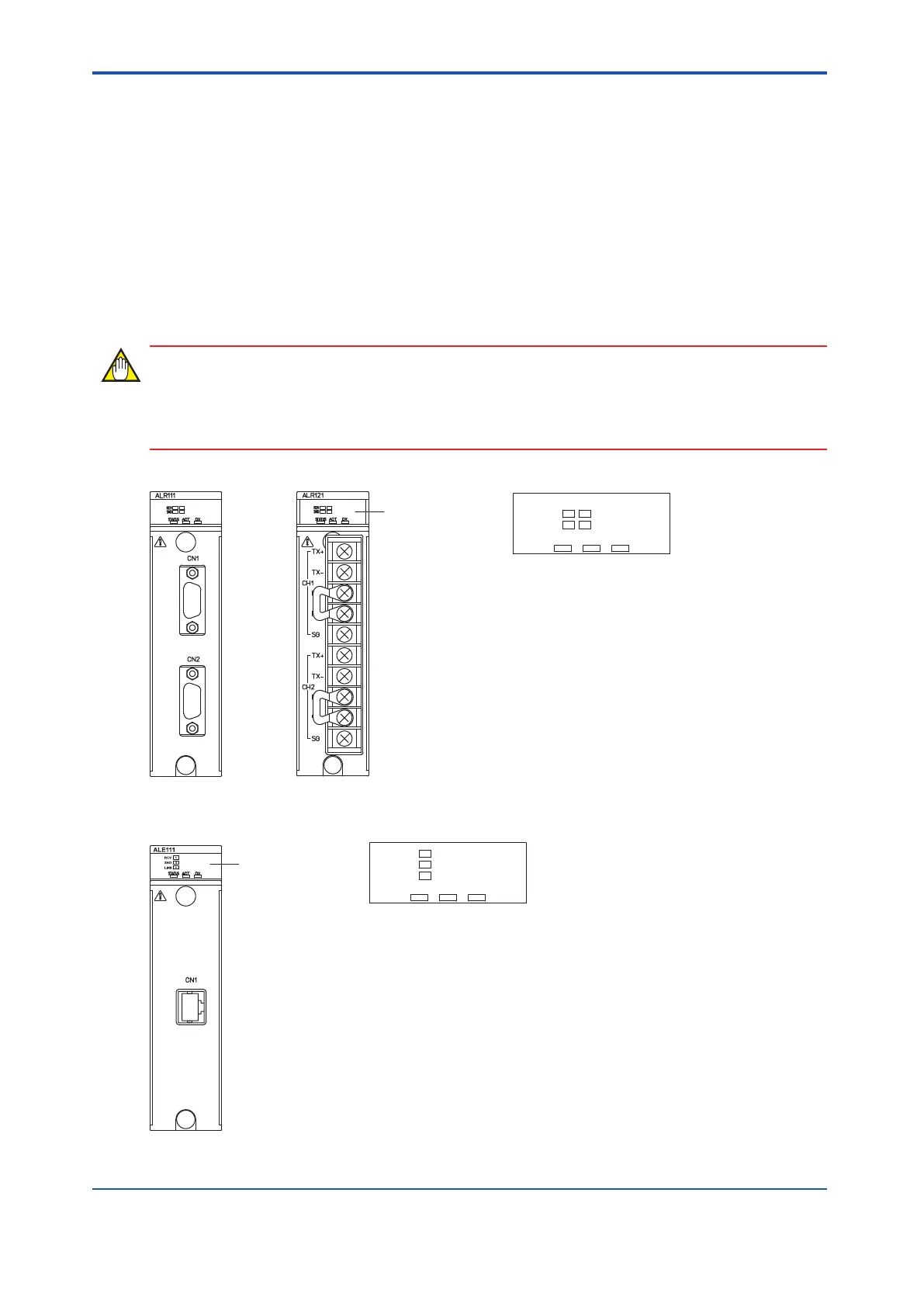

Figure 1.4.3-1 External View of Serial Communication Module
ALE111
STATUS
ACT
DX
RCV 1
SND 1
LINK 1
LED display
LED display close-up
Figure 1.4.3-2 External View of Ethernet Communication Module
<1.4 Input/Output Modules > 1-18
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
