YOKOGAWA SSC60D User Manual

8.5.1 Mounting Relay Boards
Relay boards can be installed on a rack, on a wall, or on a DIN rail.
n
Reserve Cable Area
Make sure to reserve an area for laying system cables shown in the following figures in all the
mounting methods.
130 mm or more
(cable area)
100 mm or more
(cable area)
System cable
Cable tray
Wall mountableRack mountable
100 mm or more
(cable area)
DIN rail mountable
DIN rail

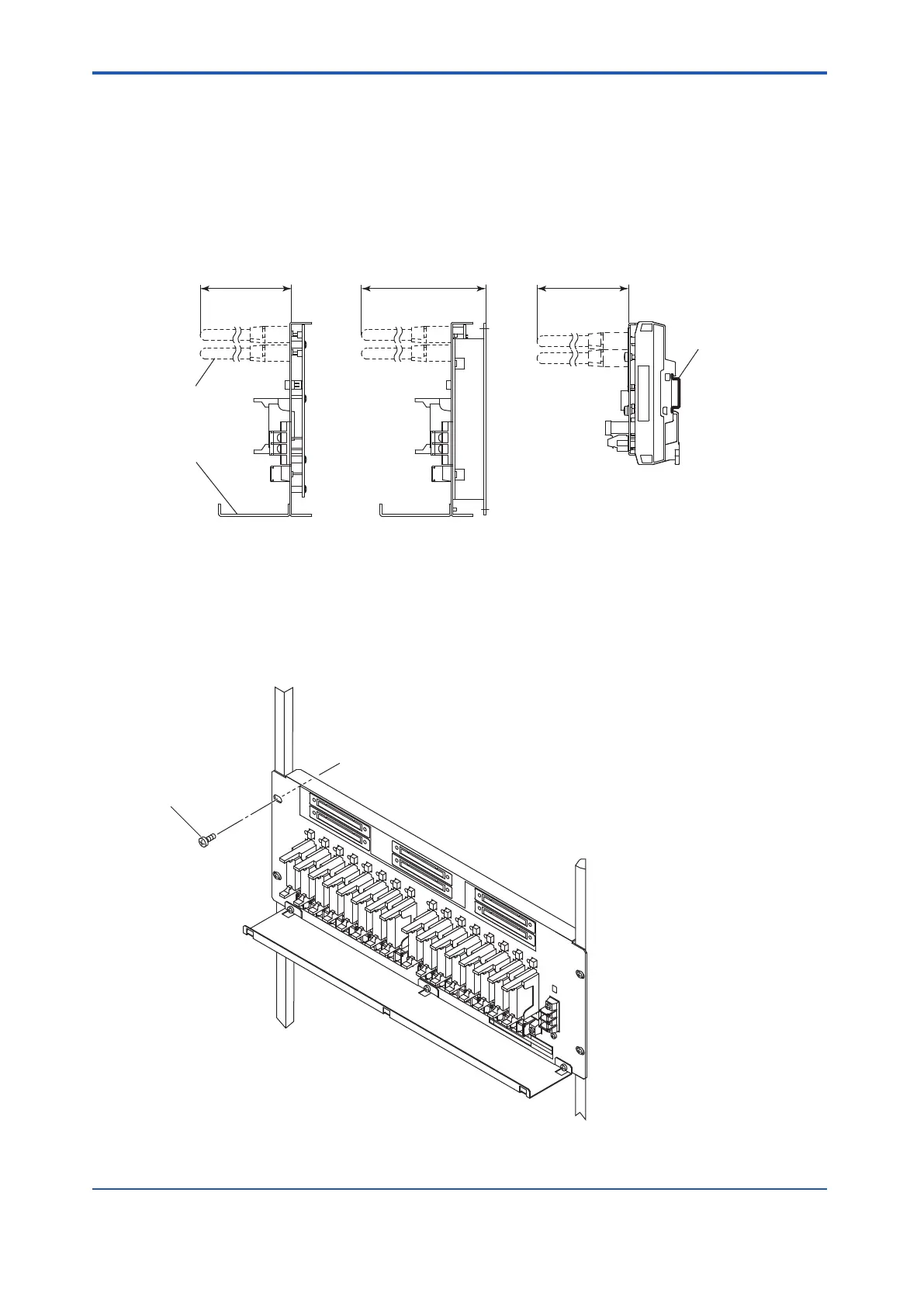

Figure 8.5.1-1 System Cable Area
n
Mounting on a Rack
A relay board can be mounted on a 19-inch-width rack and then placed in a cabinet or on an
instrument board.
Rack or Cabinet
M5 screw
Figure 8.5.1-2 Mounting on a Rack
<8.5 Maintenance > 8-19
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
