6.6 Front Panel of the Vnet/IP Interface Card
The Vnet/IP interface card (Model: VI702) can be used for control communication and open
communication on Vnet/IP network.
•
Vnet/IP interface card VI702: PCI Express
n
Configuration
• RDY lamp
This lamp illuminates to indicate that the card is working properly as the result of the peri-
odic diagnosis.
• RCV lamp
This lamp illuminates when a signal is received.
• SND lamp
This lamp illuminates when a signal is sent.
• Vnet/IP connector
These connectors are used for connecting with the Layer2 Switch.
The connector type is RJ45.

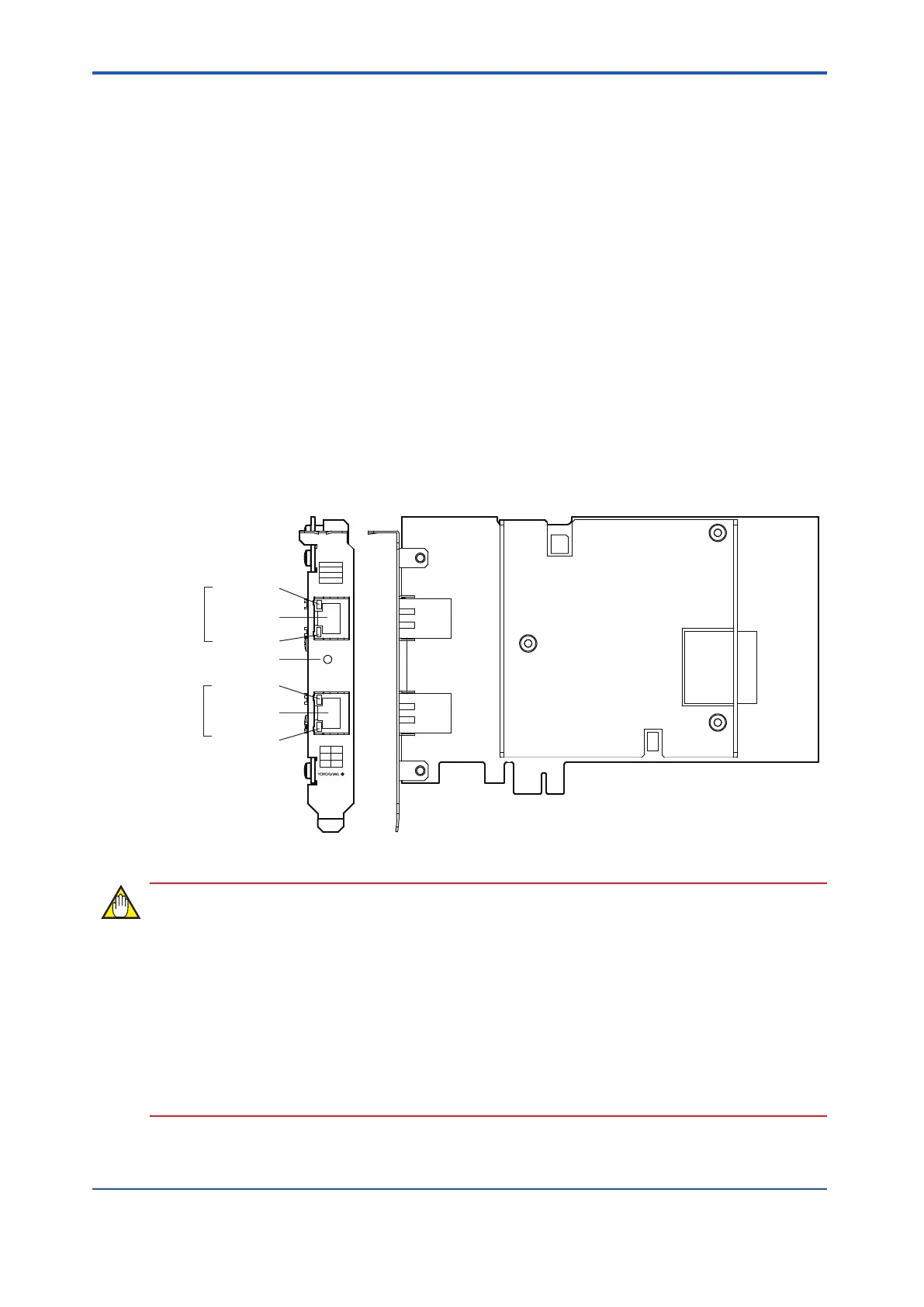

The front panel of VI702 is shown as follows:
Vnet/IP
connector
SND lamp
RCV lamp
RCV lamp
SND lamp
Vnet/IP
connector
BUS 1
side
RDY lamp
BUS 2
side
BUS1
RCV
SND
RDY
BUS2
RCV
SND
U
H
F
MODEL
VI702
STYLE
S1
Figure 6.6-1 Vnet/IP Interface Card (VI702)
IMPORTANT
Note the following points when installing and uninstalling the VI702.
•
Always install the VI702 before installing the control bus driver and Vnet/IP open commu-
nication driver.
If the VI702 is installed after the control bus driver, the VI702 is not recognized. In this
case, delete the driver, install the VI702, and then install the driver again.
• If the control bus driver and Vnet/IP driver are installed and you want to uninstall the
VI702, delete these drivers first. If this procedure is not followed, an error dialog box will
be displayed after restarting the PC and communication might not be possible.
<6.6 Front Panel of the Vnet/IP Interface Card > 6-11
