6.1 Front Panel of the Control Bus Interface
Card
The control bus interface card (Model: VF702) can be used for control communication on V
net.
•
Control bus interface card VF702: PCI Express
n
Configuration
• RCV lamp
This lamp illuminates when a signal is received.
• SND lamp
This lamp illuminates when a signal is sent.
• BNC connector
This connector is used to connect the V net cable to the VF702
It is necessary to connect a T-type connector to this BNC connector.

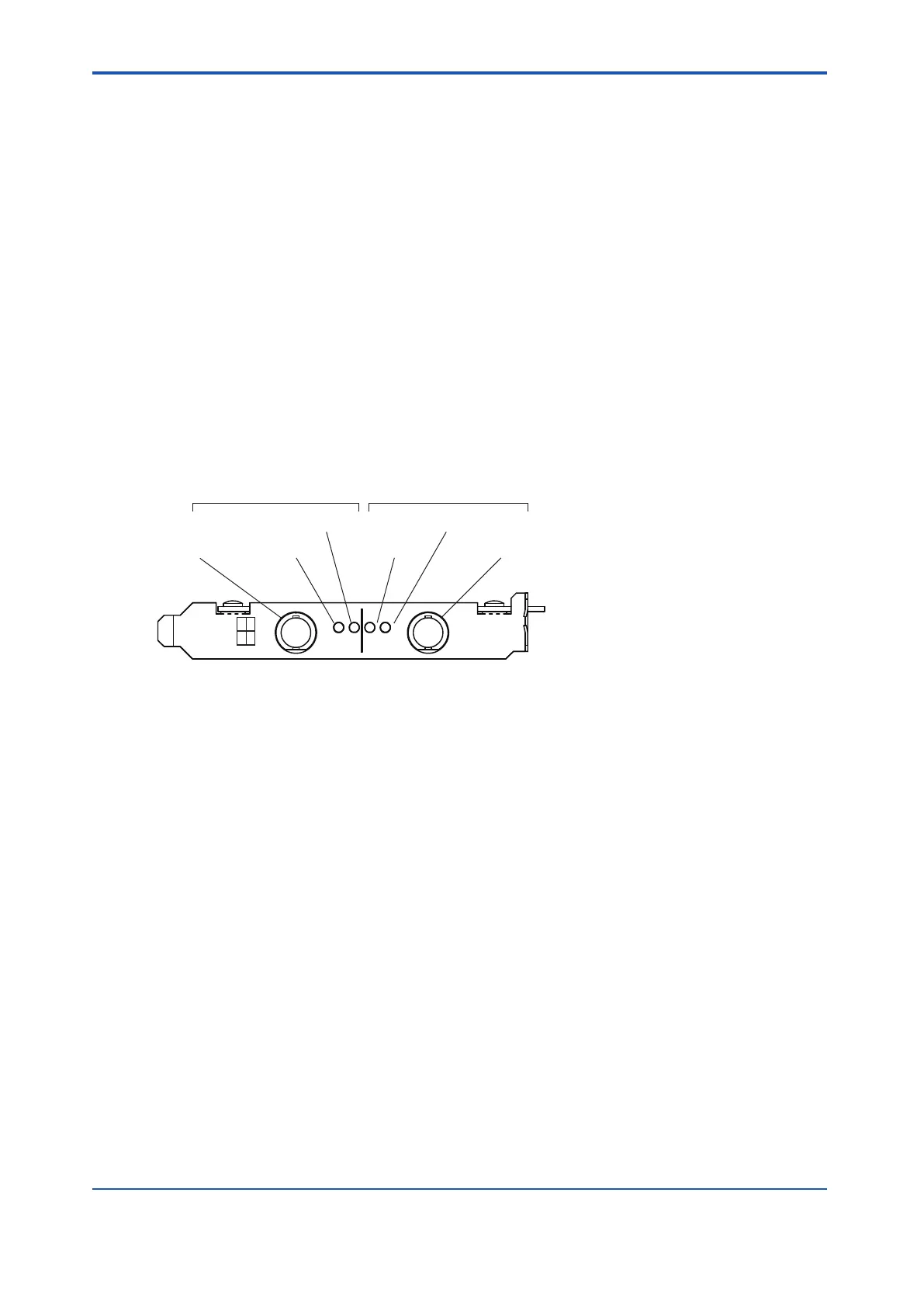

The front panel of VF702 is shown as follows:
U H
RCV
SND
SND RCV
BUS1
BUS2
VF702
BNC connector SND lamp
RCV lamp RCV lamp
SND lamp
BNC connector
BUS 2 side BUS 1 side
Figure 6.1-1 Control Bus Interface Card (VF702)
<6.1 Front Panel of the Control Bus Interface Card > 6-2
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
