YOKOGAWA SSC60D User Manual

1
0
2 1 3 4 5 6 7 8
MSB: Most Significant Bit (highest-order bit)
LSB: Least Significant Bit (lowest-order bit)
Station number (7 bits) (An example where the address “Station Number” 60)
Station number parity (1 bit, odd parity)
Bit number
P
LSB
MSB

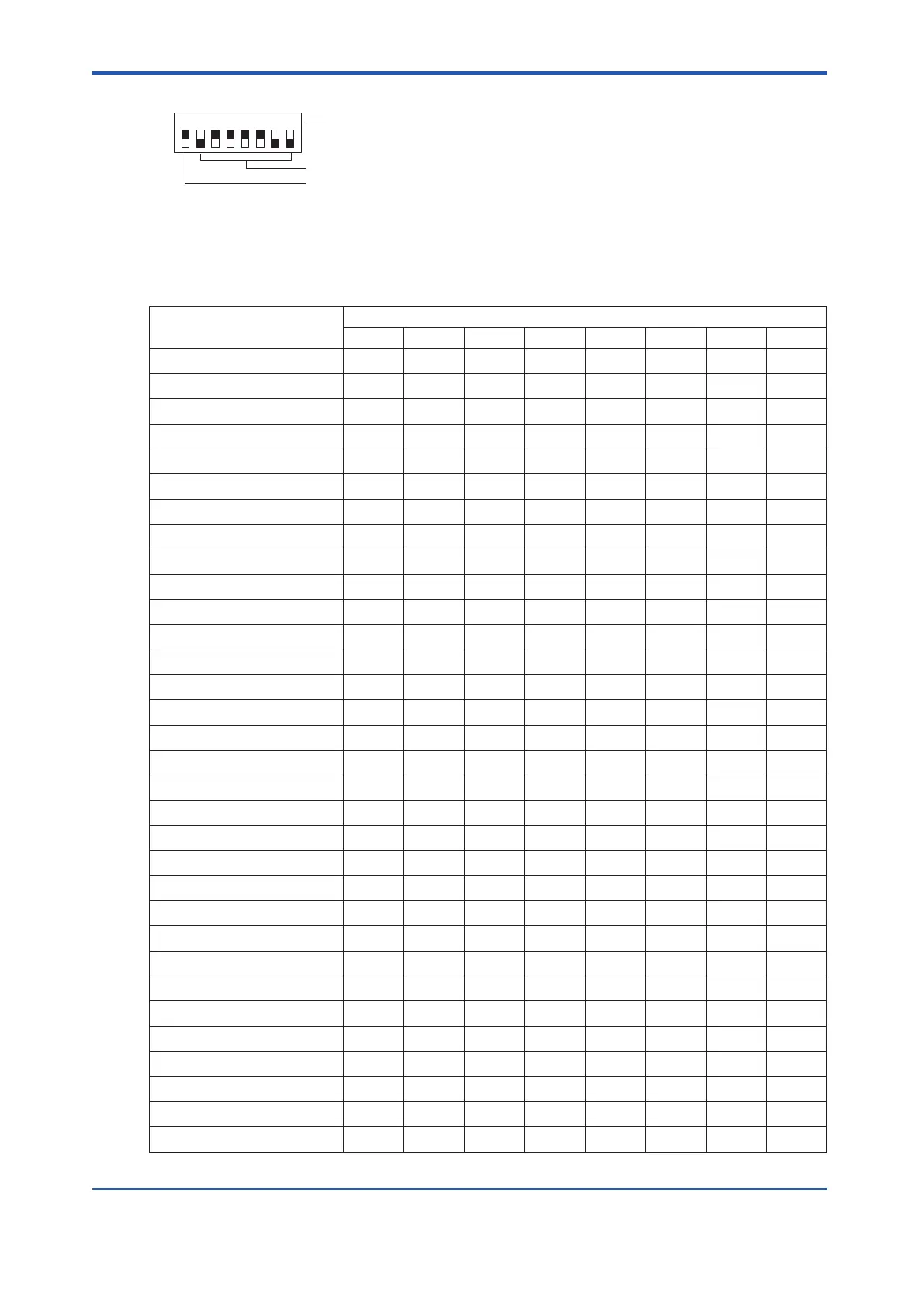

Figure 6.2-4 DIP Switches for Setting Station Numbers
Table 6.2-2 Station Numbers and Switch Positions
Station number
DIP switch bit number
1 2 3 4 5 6 7 8
1 0 0 0 0 0 0 0 1
2 0 0 0 0 0 0 1 0
3 1 0 0 0 0 0 1 1
4 0 0 0 0 0 1 0 0
5 1 0 0 0 0 1 0 1
6 1 0 0 0 0 1 1 0
7 0 0 0 0 0 1 1 1
8 0 0 0 0 1 0 0 0
9 1 0 0 0 1 0 0 1
10 1 0 0 0 1 0 1 0
11 0 0 0 0 1 0 1 1
12 1 0 0 0 1 1 0 0
13 0 0 0 0 1 1 0 1
14 0 0 0 0 1 1 1 0
15 1 0 0 0 1 1 1 1
16 0 0 0 1 0 0 0 0
17 1 0 0 1 0 0 0 1
18 1 0 0 1 0 0 1 0
19 0 0 0 1 0 0 1 1
20 1 0 0 1 0 1 0 0
21 0 0 0 1 0 1 0 1
22 0 0 0 1 0 1 1 0
23 1 0 0 1 0 1 1 1
24 1 0 0 1 1 0 0 0
25 0 0 0 1 1 0 0 1
26 0 0 0 1 1 0 1 0
27 1 0 0 1 1 0 1 1
28 0 0 0 1 1 1 0 0
29 1 0 0 1 1 1 0 1
30 1 0 0 1 1 1 1 0
31 0 0 0 1 1 1 1 1
32 0 0 1 0 0 0 0 0
Continues on the next page
<6.2 Setting Control Bus Interface Card Station Address > 6-5
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
