AEPV7D-411: 24 V DC

AEP7D-11: 100-120 V AC

AEP7D-21: 220-240 V AC

AEP7D-41: 24 V DC

• Power cable (with connector for power distribution unit)

S9756UV: For AEPV7D-111 or AEP7D-11, 2 m

S9757UV: For AEPV7D-211 or AEP7D-21, 2 m

S9758UV: For AEPV7D-411 or AEP7D-41, 2 m

• Connecting procedure

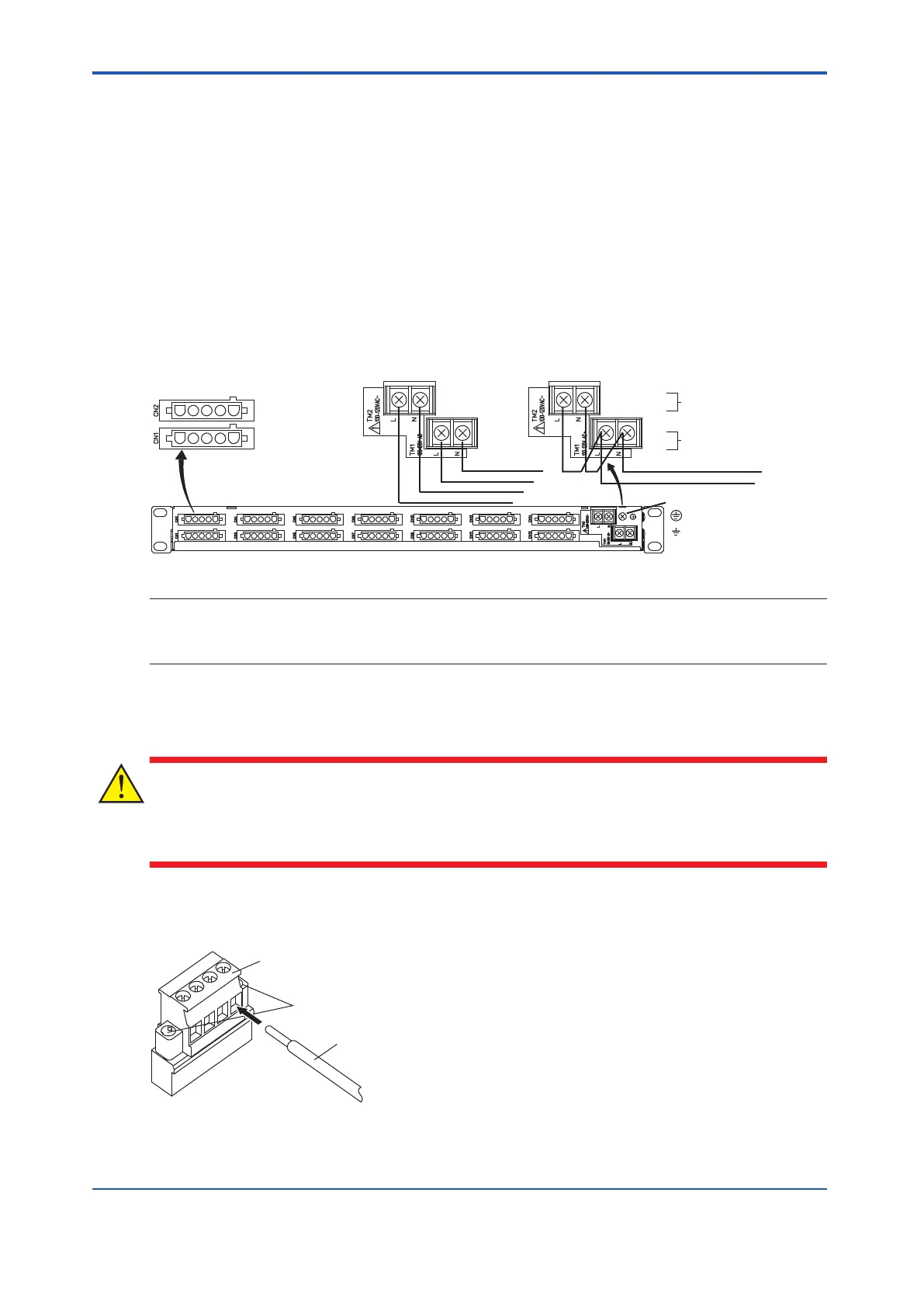

The following figure shows the power terminal of AEP7D.

For single power supply

For dual power supply

Power Input terminal

Power distribution connector

(CN1 to CN14)

For AC power supply

For DC power supply

For AC power supply

For DC power supply

Grounding terminal

Figure 3.1-1 Power Distribution Unit (AEP7D) and Power Input Terminal

SEE

ALSO

For more information about power distribution unit, refer to:

4.9, “Power Distribution Unit” on page 4-25

Connecting a Power Cable to a DIN Rail Mountable T

erminal Board

Connect the power supply using the following sequence of steps.

CAUTION

You can use dual power supply. Before connecting the power supply, check the positive and

negative polarity

1. Prepare the ends of the cable.

Connect the power cable to the power input terminals.

Power Input terminal

Power supply cable

Figure 3.1-2 Connecting the Power Cable

<3.1 Power Cable Wiring > 3-3

IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
