Actual signals and parameters 207
TIMED FUNC 1 Timed function 1 is active. See parameter group 36 TIMED
FUNCTIONS.
37
TIMED FUNC 2 Timed function 2 is active. See parameter group 36 TIMED
FUNCTIONS.
38
TIMED FUNC 3 Timed function 3 is active. See parameter group 36 TIMED
FUNCTIONS.
39
TIMED FUNC 4 Timed function 4 is active. See parameter group 36 TIMED
FUNCTIONS.
40
MNT TRIG FAN Cooling fan running time counter is triggered. See
parameter group 29 MAINTENANCE TRIG.
41
MNT TRIG
REV
Revolutions counter is triggered. See parameter group 29
MAINTENANCE TRIG.
42
MNT TRIG
RUN
Run time counter is triggered. See parameter group 29
MAINTENANCE TRIG.
43
MNT TRIG
MWH
MWh counter is triggered. See parameter group 29
MAINTENANCE TRIG.
44
SEQ PROG Relay output control with Sequence programming. See
parameter 8423 ST1 OUT CONTROL.
50
MBRK On/Off control of a mechanical brake. See parameter group
43 MECH BRK CONTROL.
51
JOG ACTIVE Jogging function active. See parameter 1010 JOGGING
SEL.
52
STO STO (Safe torque off) has been triggered. 57
STO(-1) STO (Safe torque off) is inactive and the drive operates
normally.
58
1402 RELAY
OUTPUT 2
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 output relay module is connected to the drive.
See parameter 0181 EXTENSION.
NOT SEL
1403 RELAY
OUTPUT 3
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 output relay module is connected to the drive.
See parameter 0181 EXTENSION.
NOT SEL
1404 RO 1 ON
DELAY
Defines the operation delay for relay output RO 1. 0.0 s

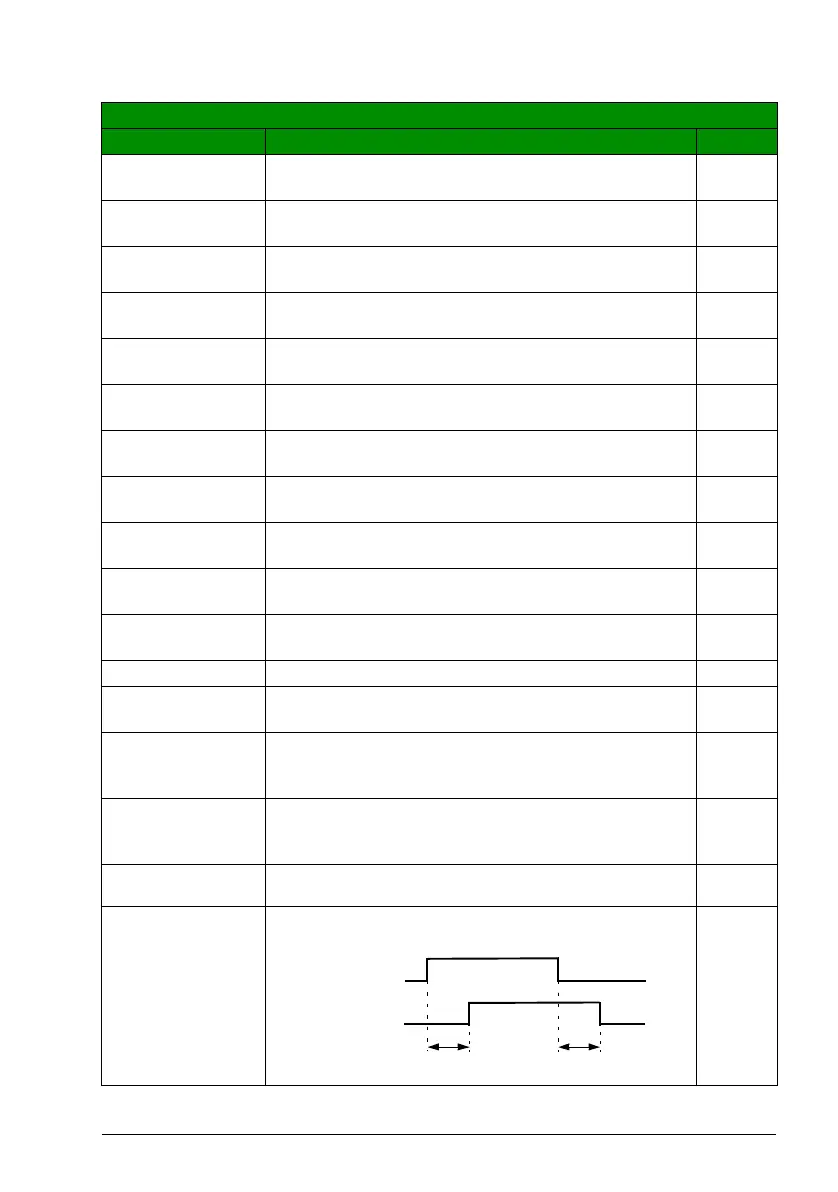

0.0…3600.0 s Delay time. The figure below illustrates the operation (on)
and release (off) delays for relay output RO.
1 = 0.1 s
All parameters
No. Name/Value Description Def/FbEq
Control event
Relay status
1404 On delay 1405 Off delay
