Actual signals and parameters 281

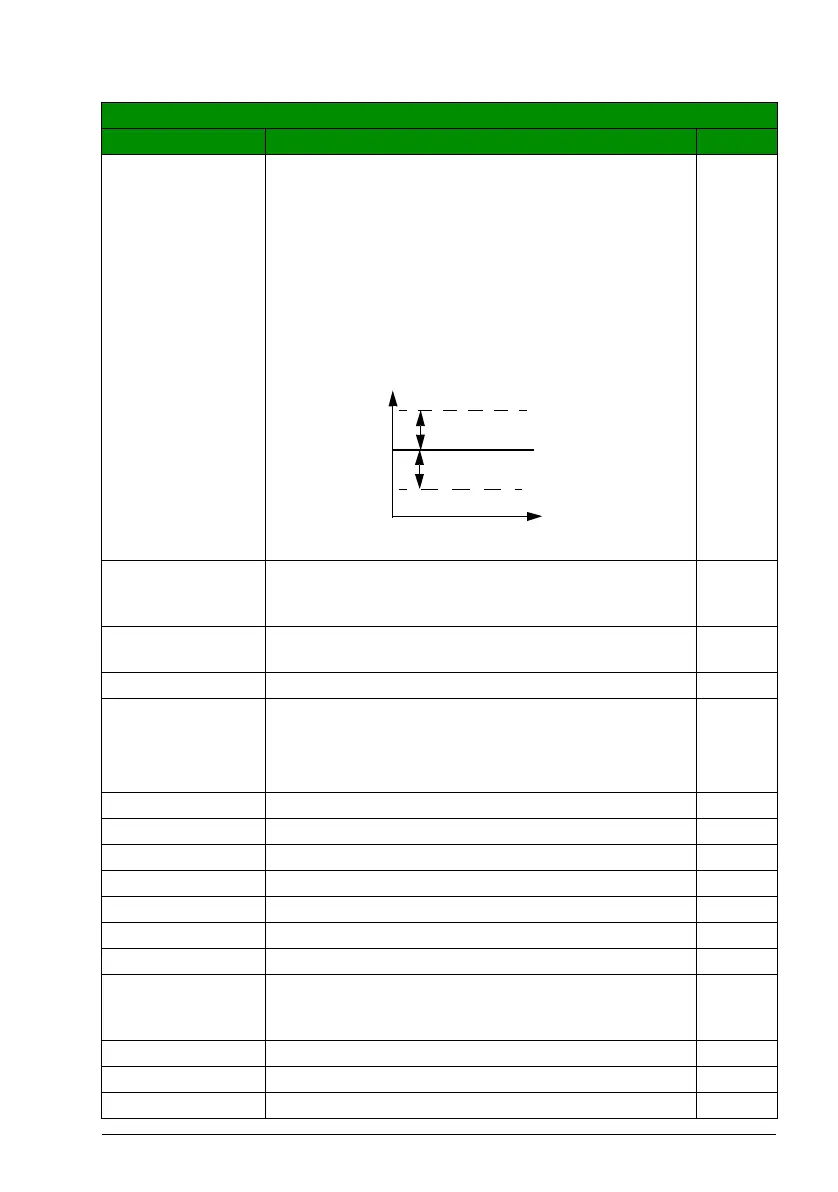

4025 WAKE-UP DEV Defines the wake-up deviation for the sleep function. The
drive wakes up if the process actual value deviation from
the PID reference value exceeds the set wake-up deviation
(4025) longer than the wake-up delay (4026). Wake-up level
depends on parameter 4005 ERROR VALUE INV settings.
If parameter 4005 is set to 0:
Wake-up level = PID reference (4010) - Wake-up deviation
(4025).
If parameter 4005 is set to 1:
Wake-up level = PID reference (4010) + Wake-up deviation
(4025)
See also figures for parameter 4023 PID SLEEP LEVEL.
0
x…x Unit and range depend on the unit and scale defined by
parameters 4026 WAKE-UP DELAY and 4007 UNIT
SCALE.
4026 WAKE-UP
DELAY
Defines the wake-up delay for the sleep function. See
parameter 4023 PID SLEEP LEVEL.
0.50 s
0.00…60.00 s Wake-up delay 1 = 0.01 s
4027 PID 1 PARAM
SET
Defines the source from which the drive reads the signal
that selects between PID parameter set 1 and 2.
PID parameter set 1 is defined by parameters 4001…4026.
PID parameter set 2 is defined by parameters 4101…4126.
SET 1
SET 1 PID SET 1 is active. 0
DI1 Digital input DI1. 1 = PID SET 2, 0 = PID SET 1. 1
DI2 See selection DI1.2
DI3 See selection DI1.3
DI4 See selection DI1.4
DI5 See selection DI1.5
SET 2 PID SET 2 is active. 7
TIMED FUNC 1 Timed PID SET 1/2 control. Timed function 1 inactive = PID
SET 1, timed function 1 active = PID SET 2. See parameter
group 36 TIMED FUNCTIONS.
8
TIMED FUNC 2 See selection TIMED FUNC 1.9
TIMED FUNC 3 See selection TIMED FUNC 1.10
TIMED FUNC 4 See selection TIMED FUNC 1
.11
All parameters
No. Name/Value Description Def/FbEq
Wake-up level
when 4005 = 1
Wake-up level
when 4005 = 0
t
4025
4025
PID reference
