Operation principle and hardware description 39
Type designation key
The type code contains information on the specifications and configuration of the unit.
• The first 23 digits form the basic code. It describes the basic construction of the unit.
The fields in the basic code are separated with hyphens.
• The option codes follow the basic code. Each option code starts with an identifying
letter (common for the whole product series), followed by descriptive digits. The option
codes are separated by plus signs.
The selections are listed below. For more information, contact your local ABB
representative.
Basic code
When no options are selected, the following features are included as standard: 1-phase 230 V connection for
control electronics to be supplied by online UPS, auxiliary power connection 1-phase, 50/60 Hz supply 230
VAC control voltage, NTAC-02, NAMU-6x, doubly-fed induction generator control program. Control logic for
cabinet liquid circuit heater, cooling connection with G2” thread, cooling connection on the right-hand side of
the cabinet, EMC 2nd Environment filter, du/dt limitation by choke, common mode filter, Emergency stop cat. 0,
ICU 200 mm with bottom entry cables, bottom exit of cables, cable entry plates (blank plates), coated boards,
one set of default language documents.
Digit no. Name/Description Alternatives Description
1…6 Product series ACS800
8…11 Construction 67LC Cabinet mounted liquid-cooled wind turbine
converter for the control of an induction
generator
13…21 Size 1075/0575
1375/0575
1375/1125
1595/0865
2035/1125
Rotor-side converter kVA rating / Grid -side
converter kVA rating
23 Voltage rating 7 7 – Voltage range 525…690 V

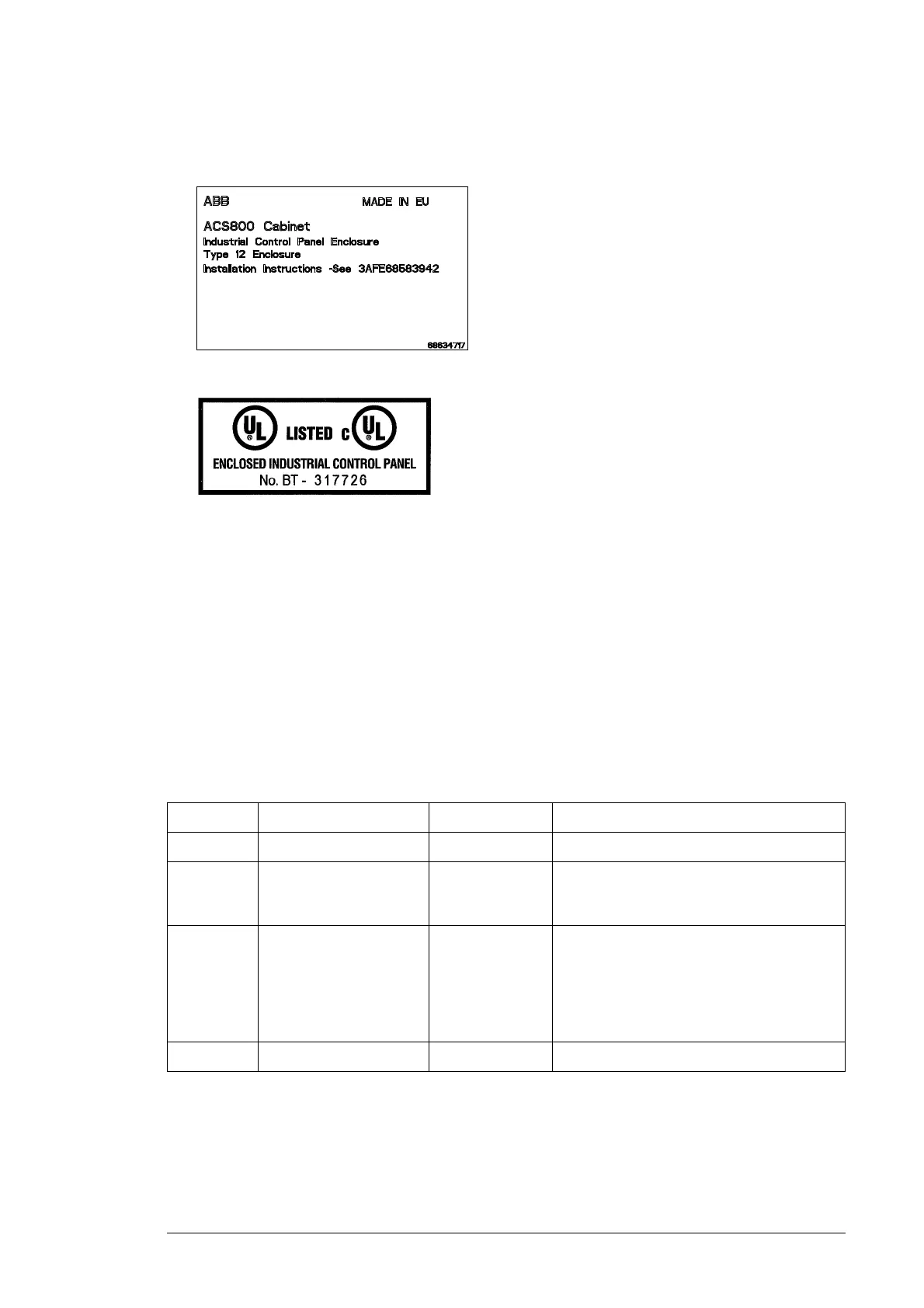

UL Type 12 label (USA and Canada only)
UL508A label
