Maintenance 93

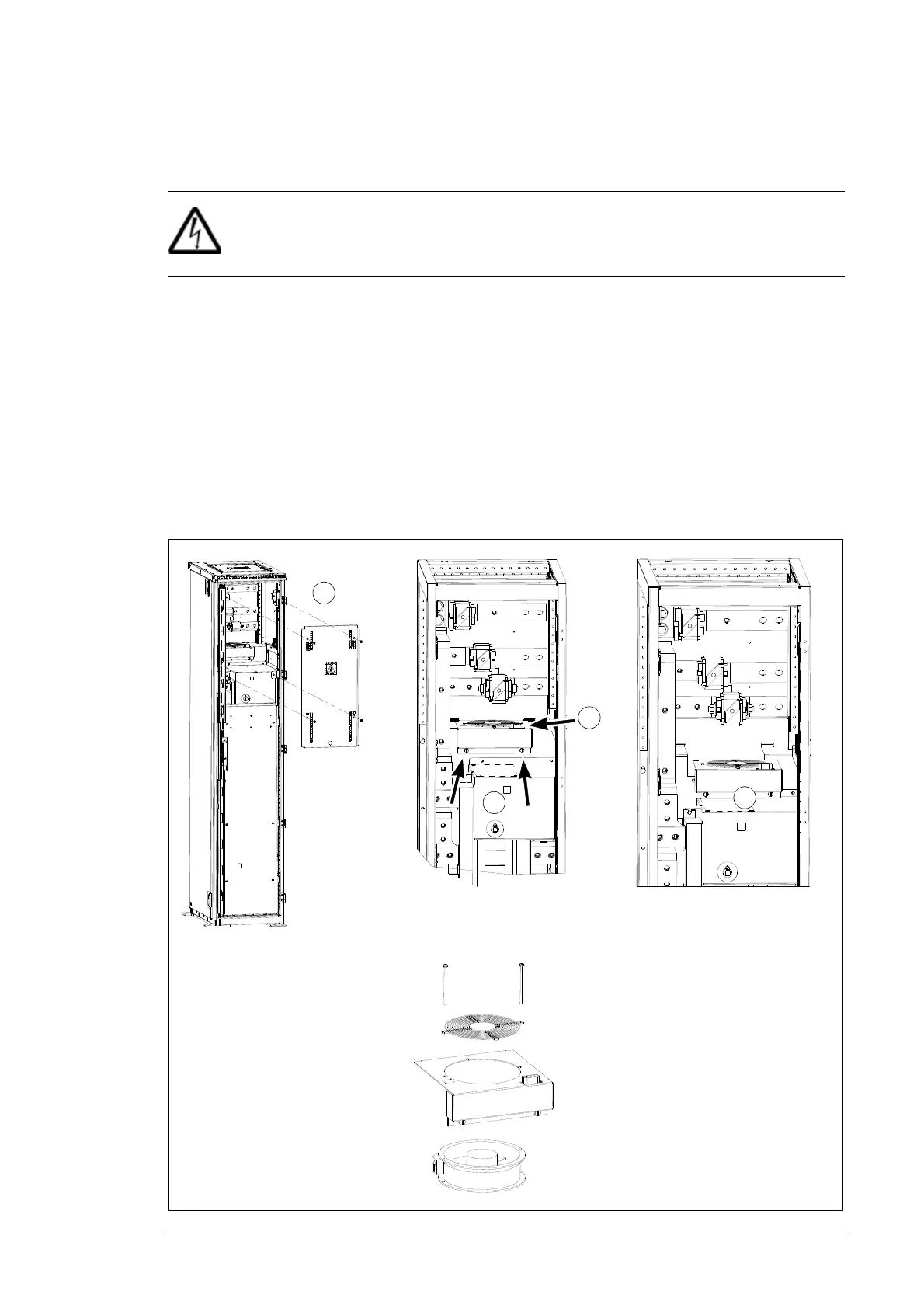

Replacing the fan in the 400 mm wide incoming cubicle
(option +C111)
WARNING! Read and follow the instructions on the first pages of this manual.
Ignoring the instructions can cause physical injury or death, or damage to the
equipment.
1. Ensure that the converter is disconnected from the power supply network and all other
precautions described in section Safety in installation and maintenance, page 12 have
been taken into consideration.
2. Disconnect the 230 V AC supply cables from connectors X1 and X2 at the right side of
the cabinet.
3. Open the door and remove the upper shroud of the cubicle by removing four screws.
4. Disconnect the plug.
5. Loosen the two fastening screws of the fan.
6. Pull the fan out. Remove the two screws if you want to remove the fan from the collar.
7. Install a new fan in reverse order.
5
6
4
3
Removing the fan from the collar
