56 Planning the electrical installation
Grid-side converter cables (or cables to the power cabinet (option +C109))

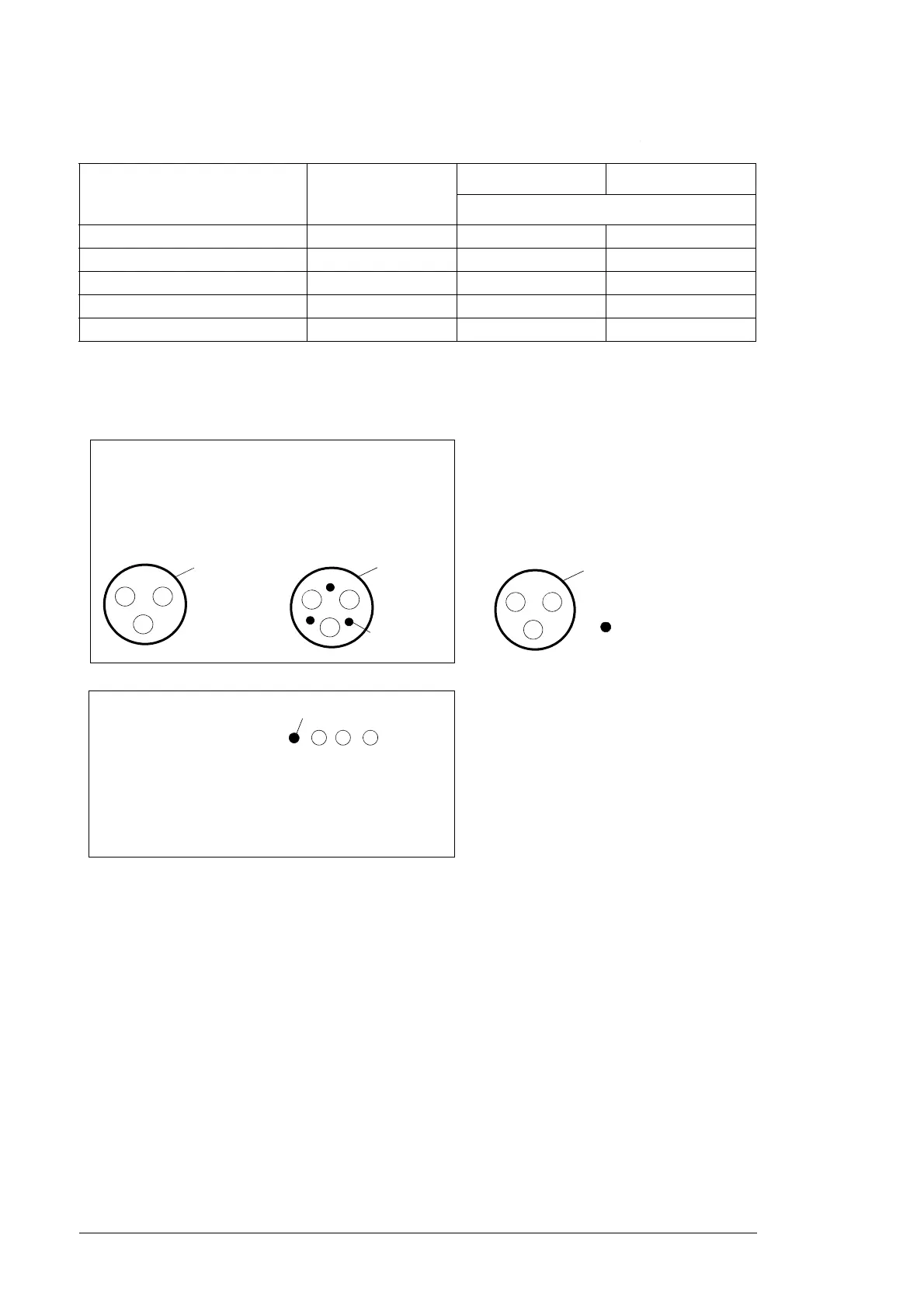

Alternative power cable types
Power cable types that can be used with the converter are represented below.
Type name
Grid-side converter
current rating [A]
500 kcmil (253 mm
2
) 350 kcmil (177 mm
2
)
nr of cables / phase
ACS800-67LC-1075/0575-7 480 2 3
ACS800-67LC-1375/0575-7 480 2 3
ACS800-67LC-1375/1125-7 941 5 6
ACS800-67LC-1595/0865-7 720 3 4
ACS800-67LC-2035/1125-7 941 5 6
Symmetrical shielded cable: three phase conductors
and a concentric or otherwise symmetrically
constructed PE conductor, and a shield
Recommended
PE conductor
and shield
Shield
Shield
A separate PE conductor is required if the
conductivity of the cable shield is <50% of the
conductivity of the phase conductor.
A four conductor
system: three phase
conductors and a
protective conductor.
PE
PE
PE
Can be used for rotor cables
(not recommended)
