Rockwell Automation Publication 825-UM004D-EN-P - November 2012 121
825-PDN DeviceNet Communication Card Chapter 9
Using the Node Commissioning Tool of RSNetWorx for DeviceNet
1. From the Tools menu at the top of the screen, select Node
Commissioning.
2. To prompt a screen similar to Fig
ure 43, select Browse.

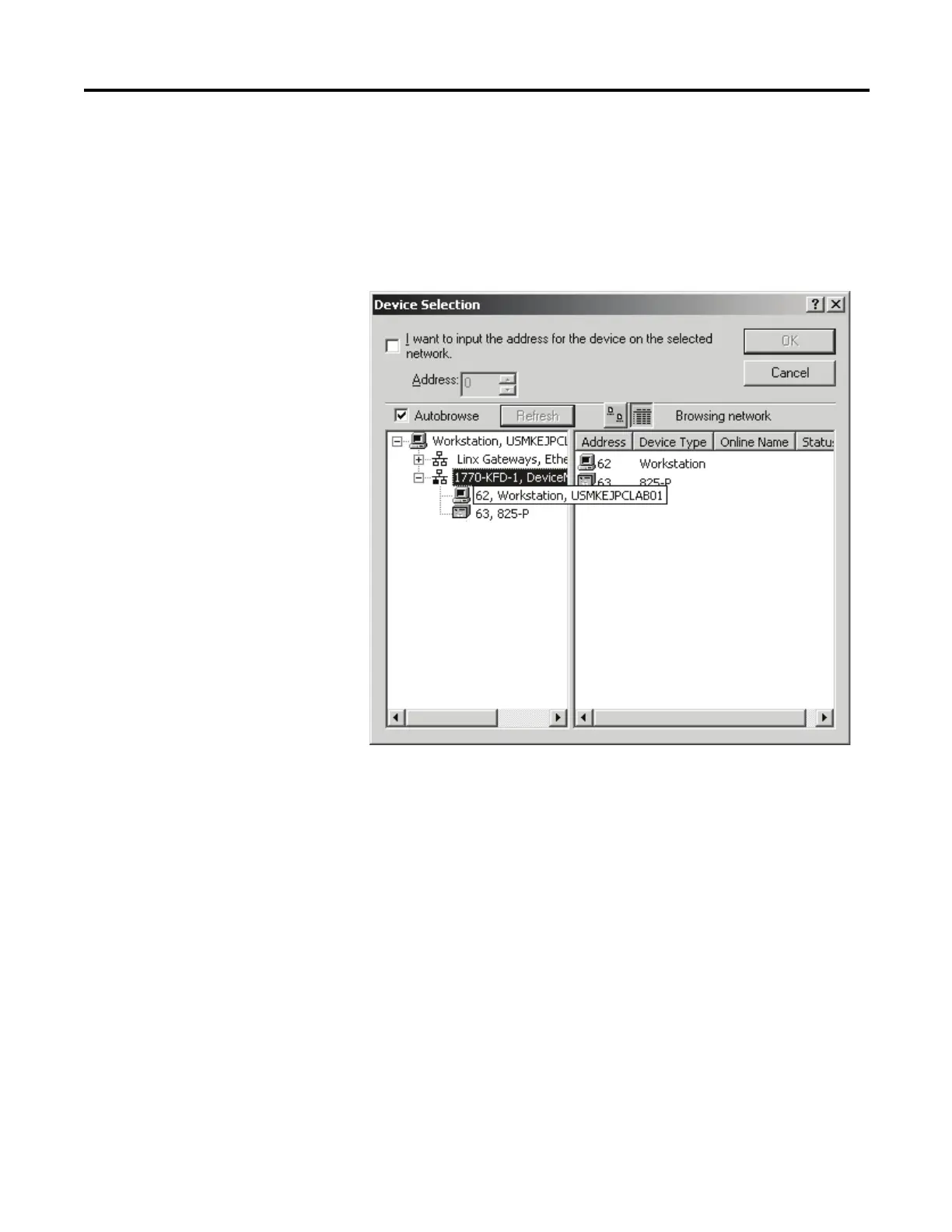

Figure 43 - Node Commissioning Device Solution Window
Explicit Messaging
The 825-PDN is capable of using explicit messages to retrieve data that is not
automatically acquired based on the input and output assembly of the device.
The example shows how to configure an explicit message with a ControlLogix
processor.
To assist in the development of the example, the network consists only of the
825-P Modular Protection System and scanner. Therefore, the only mapped
information in the scanner is the 825-P Modular Protection System.
