Chapter 5 Using MPS Explorer

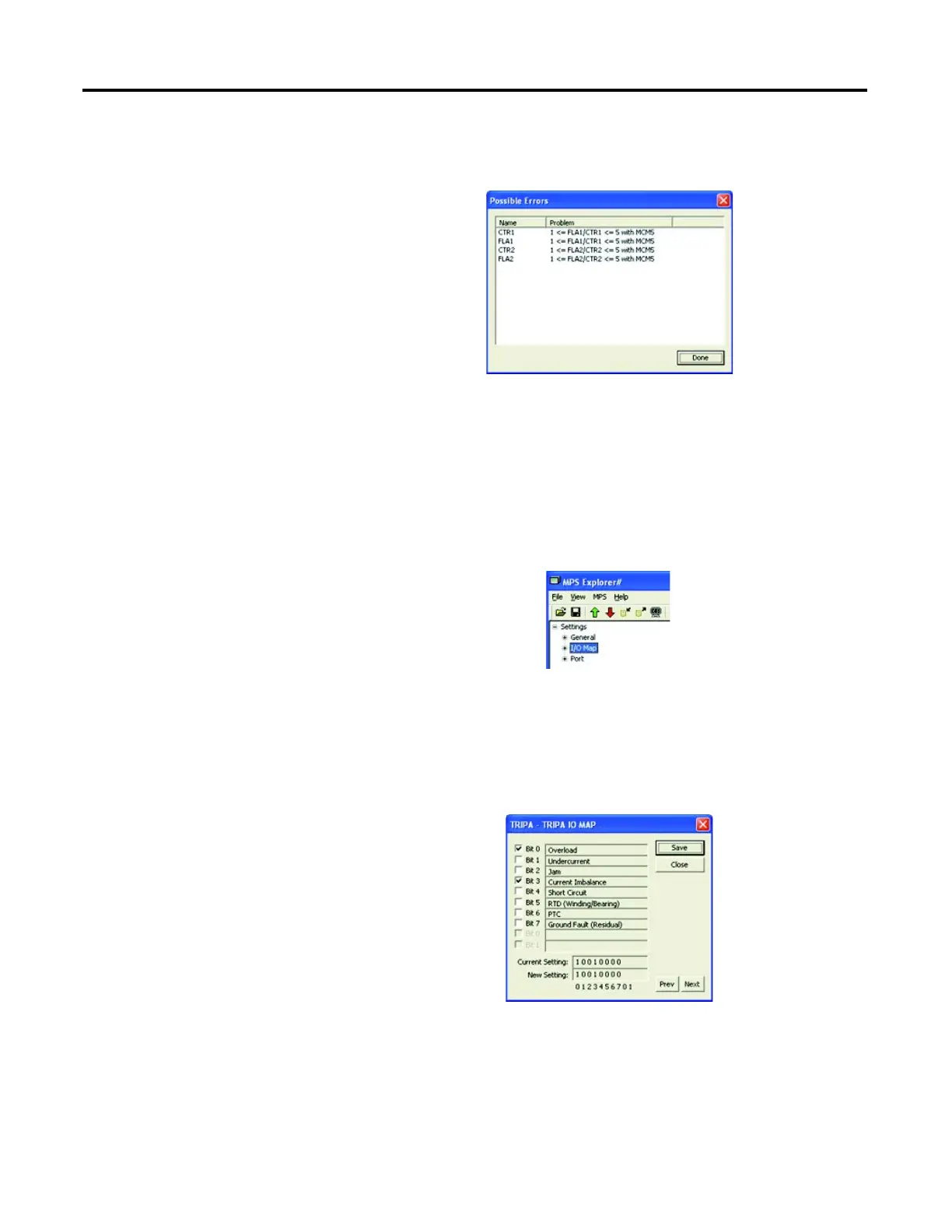

A list of possible errors will appear showing the name and problem that may
contribute to an error.
I/O Mapping
MPS Explorer allows the user to easily configure the I/O Map to assign
protection trip functions to the Trip relay, assign functions to the auxiliary
relay and assign functions to the selected input.
When connected to the device, the user can select I/O Mapping from the
Settings tree as shown.
Then, a list of the Trip, Auxiliary Relays and Inputs will be displayed for
configuration. Once the list is displayed, the user can locate a specific Trip,
Auxiliary or Input to modify. Double-click on a name to open the dialog box that
will display each available bit with a corresponding parameter. To enable a bit,
click the check box, and then click Save.
