Allen-Bradley 825-P User Manual

Rockwell Automation Publication 825-UM004D-EN-P - November 2012 23
Installation Chapter 2
Converter Module Connection

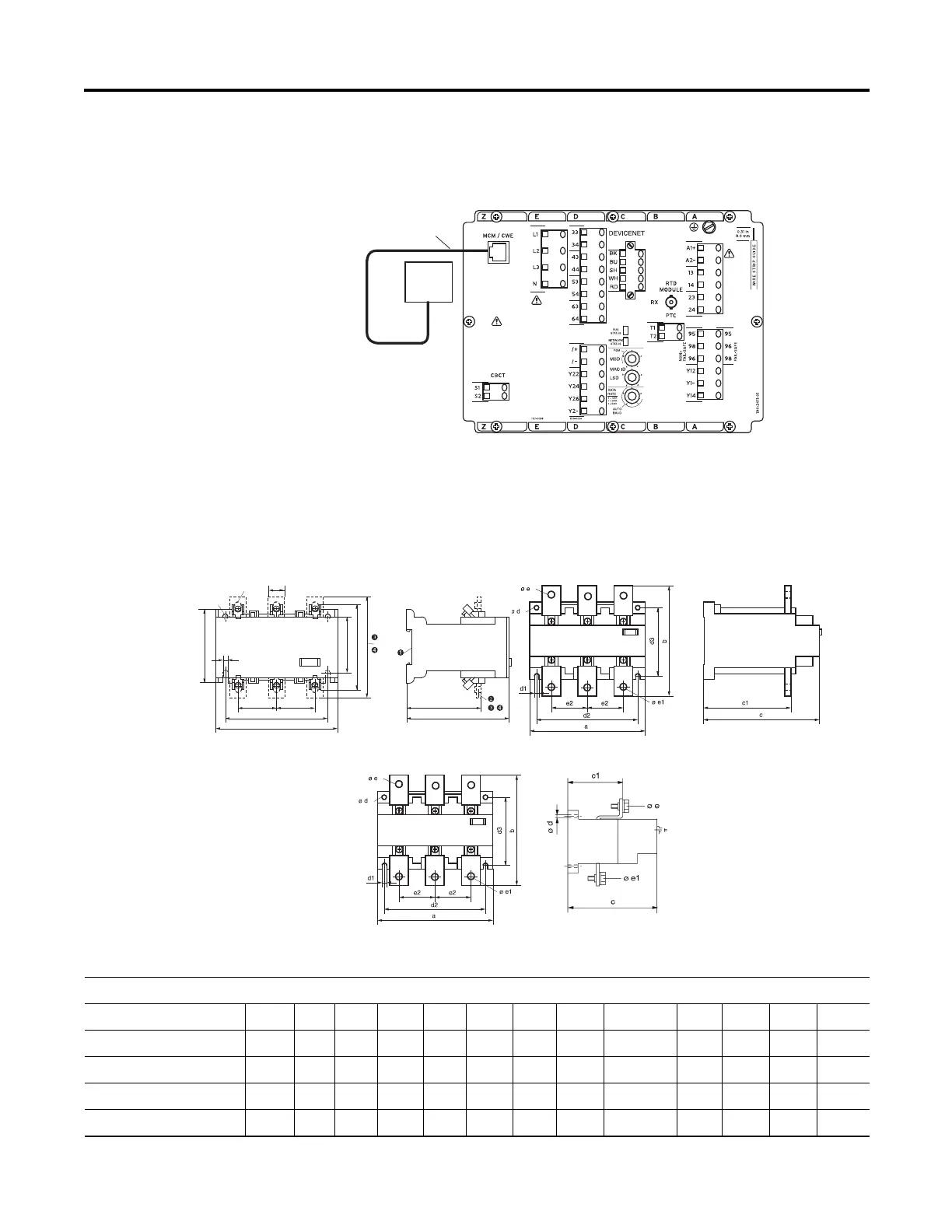

Figure 8 - Converter Module Connection
Figure 9 - Converter Module Dimensions
NOTE: The 825-P relay is not EMC-tested for converter module connecting cable lengths greater
than the 4-meter cable that is supplied.
MCM
4 M Connection Cable
(supplied with MCM)
d3
b
b2
e2
e2
d2
a
c1
c
ø e
d1
ø d
b1
e3
Cat. No. 825-MCM2…825-MCM180 Cat. No. 825-MCM420
Cat. No. 825-MCM630N
Dimensions
Cat. No. a b c c1 ø d d1 d2 d3 ø e ø e1 e2 b1 b2
825-MCM2, -MCM5, -MCM20 120 85 102 66 5.3 5.3 100 55 2x2.5 mm
2
— 38.5
825-MCM180 120 102 72 5.3 5.3 100 55 38.5 75 110/118
825-MCM420 155 145 156 118 6.3 6.3 135 88 11 M10 48
825-MCM630N 155 145 177 118 6.3 6.3 135 88 11 M10 48
