132 Rockwell Automation Publication 825-UM004D-EN-P - November 2012

Chapter 10 Modbus RTU Communications

Wiring

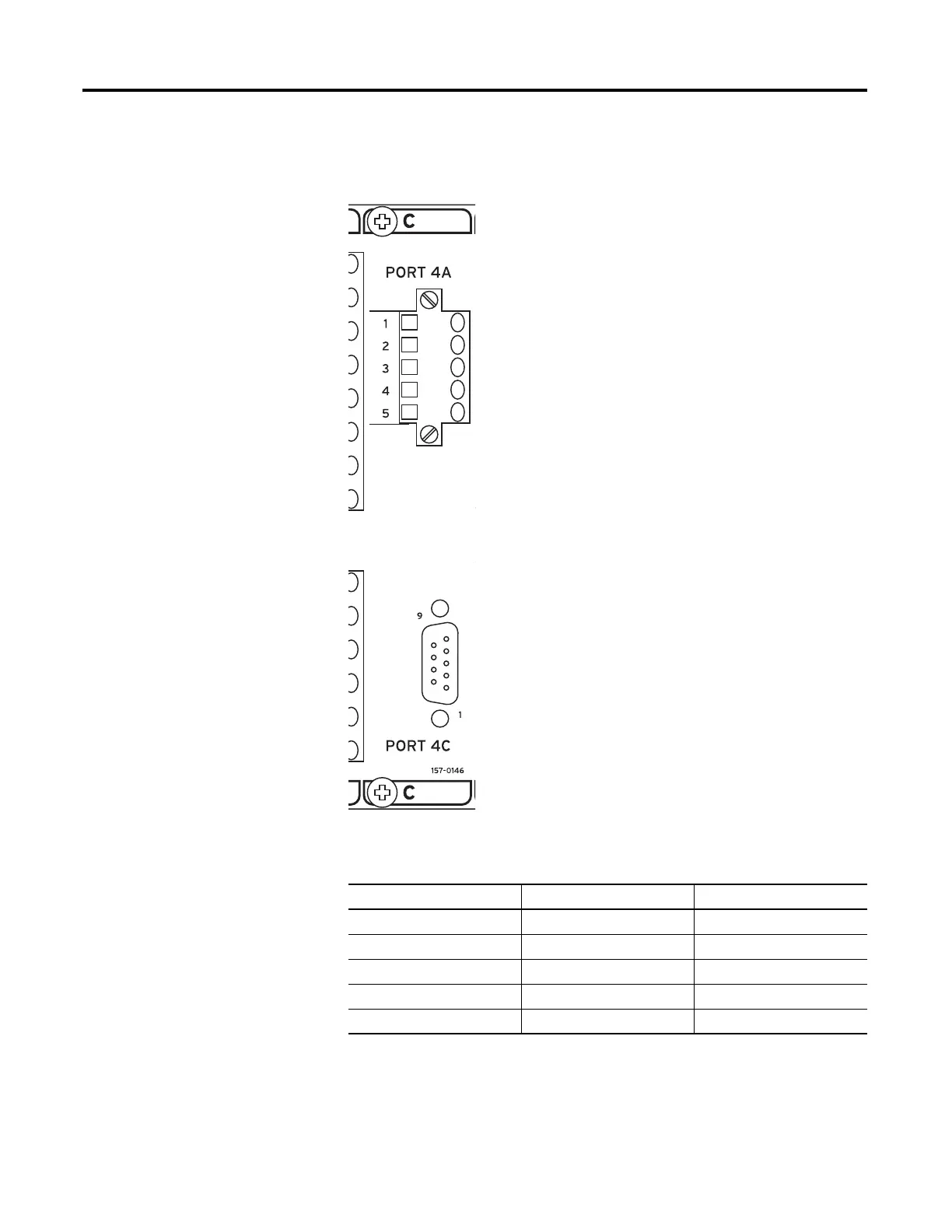

Table 61 - RS 485 Connections (top to bottom)

Pin Pin Function Definition

1 Dx+ Transmit Data (Positive)

2 Dx- Transmit Data (Negative)

3 Rx+ Receive Data (Positive)

4 Rx- Receive Data (Negative)

5SH Shield
