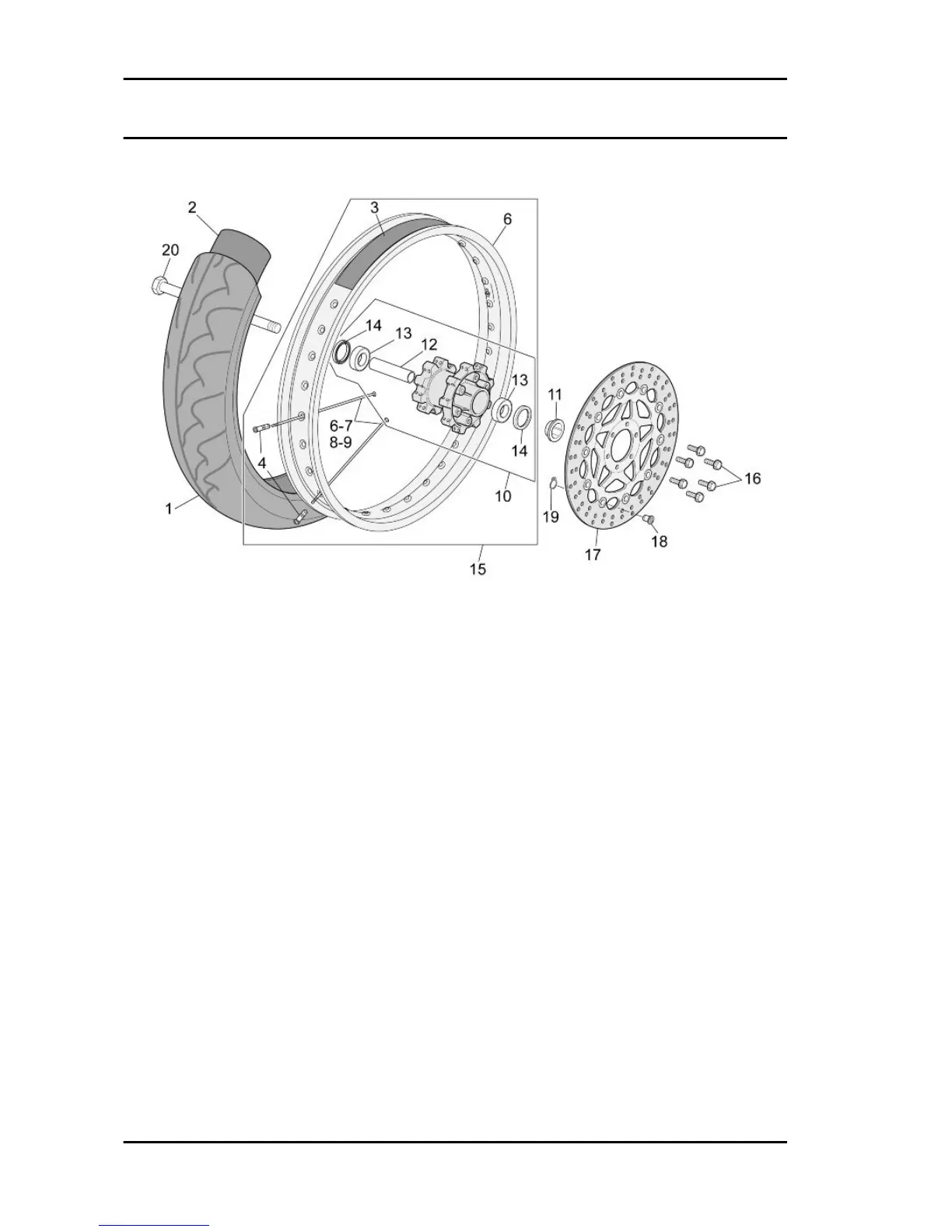

Front
Key:
1. Tyre
2. Air chamber
3. Wheel flap
4. Nipples
5. Rim
6. Front wheel radius
7. Front wheel radius
8. Front wheel radius
9. Front wheel radius
10.Hub
11.Wheel spacer
12.Bearings spacer
13.Hub bearing
14.Oil seal
15.Bare front wheel
16.TSPEI screw
17.Brake disc
18.Magnet
Suspensions RX SX 125
SUSP - 140
