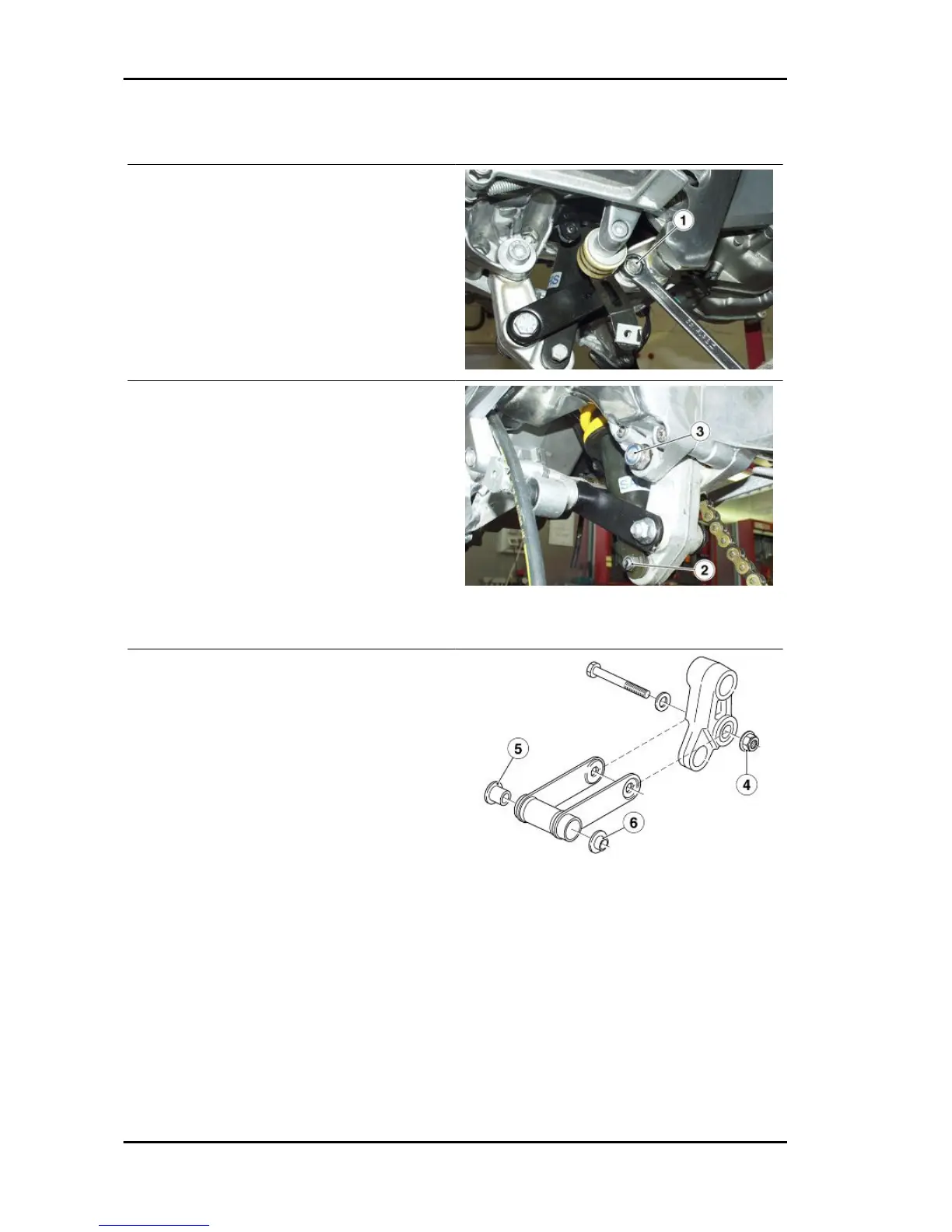

APRILIA SX 125 User Manual

Removing
•
Working from the right side, unscrew
and remove the nut (1).
•
Slide off the screw from the opposite
side and collect the washer.
•
Working from the left side, unscrew
and remove the nut (2).
•
Slide off the screw from the opposite
side.
•
Working from the left side, unscrew
and remove the nut (3).
•
Slide off the screw from the opposite
side and collect the washer.
•
Remove the complete suspension
connecting rod assembly unit.
CONNECTING ROD ASSEMBLY REMOVAL
•
Remove the complete suspension
connecting rod assembly unit.
•
Unscrew and remove the nut (4).
•
Slide off the screw from the opposite
side and collect the washer.
•
Remove the single connecting rod.
•
Remove the right bushing (5) and the
left bushing (6) from the single con-
necting rod.
Suspensions RX SX 125
SUSP - 170
