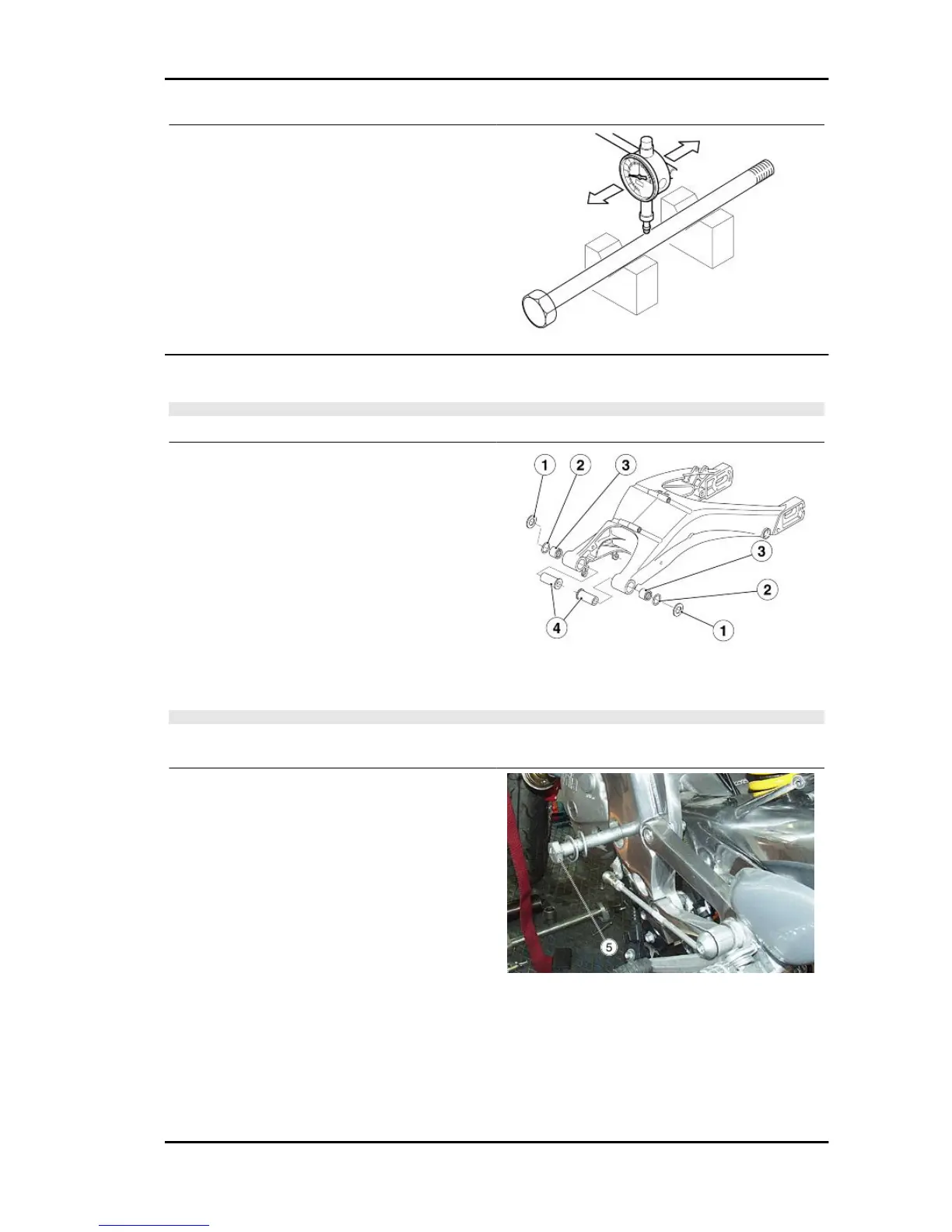

SWINGARM PIN

With a dial gauge check if the pin eccentricity ex-

ceeds the limit value. Otherwise, replace the pin.

Maximum pin eccentricity: 0.3 mm (0.01 in)

Installing

CAUTION

REPLACE BOTH ROLLER CASINGS

•

Clean all the swingarm coupling com-

ponents completely and grease them

with lithium grease.

•

Using a buffer of suitable diameter as-

semble the two new roller casings (3)

centring them axially in their housing.

•

Fit the two O-rings (2).

•

Fit both needle bearing (4) bushings

inside the swingarm.

•

Fit the external plastic washers (1).

CAUTION

DUE TO THE REARCARRIAGE WEIGHT, THE FOLLOWING OPERATIONS REQUIRE THE INTER-

VENTION OF A SECOND OPERATOR.

•

Place the swingarm on the chassis.

•

Move it into position so that the holes

are aligned and, at the same time fully

insert the pin (5) from the left side.

RX SX 125 Chassis

CHAS - 177
