6 Measurement results
The measurement dialog box is your active dialog box during measurements, displaying your results.
There are three different dialog boxes, depending on configuration. A number of parameters and menu
items are common.
6.1 Common parameters

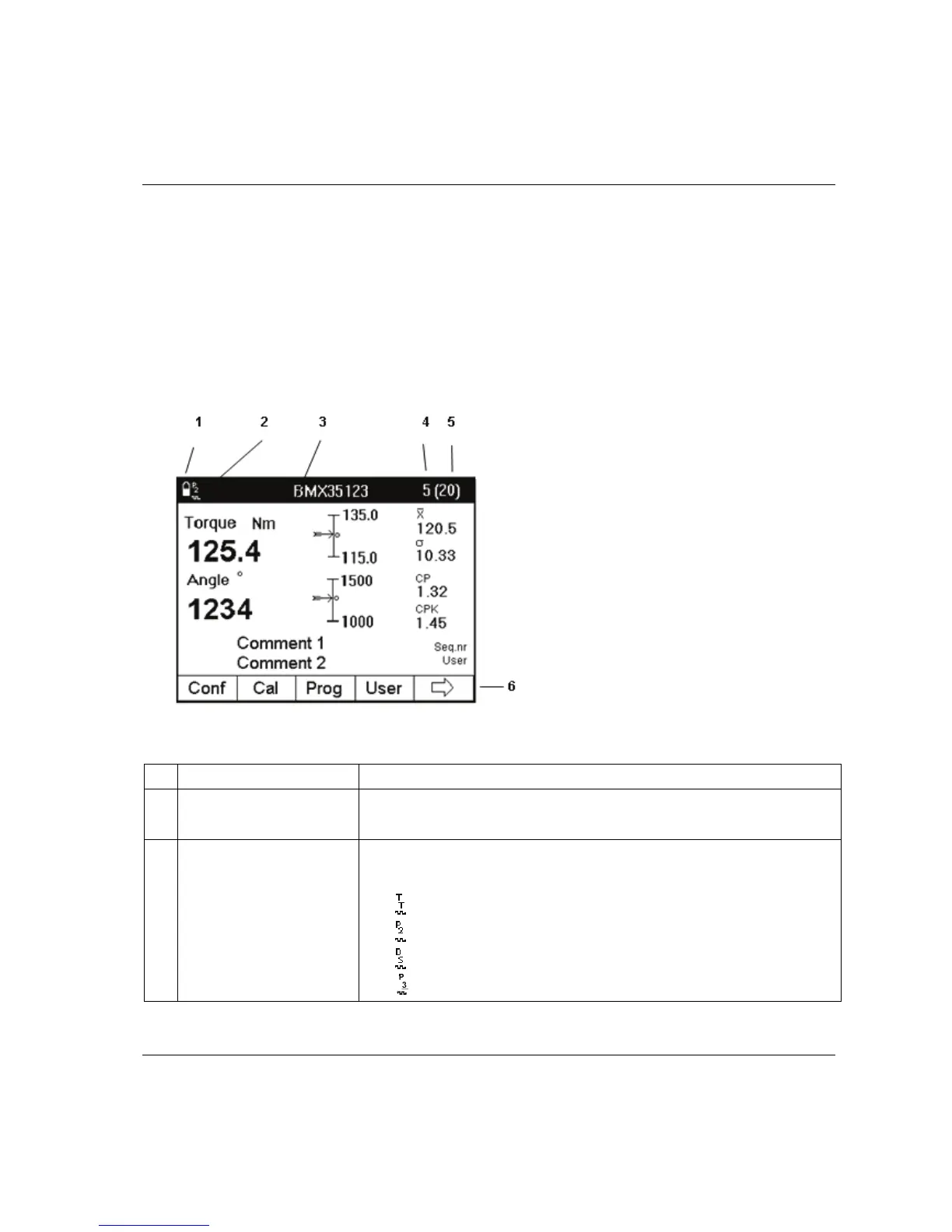

The result dialog boxes have a number of
common parameters.
See the table below for a description.
No Display Description
1 Battery symbol This indicates how much power there is left in the battery. When the battery indicator is
all white the battery is fully charged and when the battery indicator is all black the
battery has less than 8% of a full charge left.
2 Communication symbol
Note: The Communication
symbol is shaded grey when
no communication is possible.
When the communication is
active, the symbol turns white.
The symbol states which communication mode ACTA is in. It is set in the
Prog>ToolType setup window.
ToolsTalk communication.
Focus 2000 / Power Focus 2000 communication.
DS/DL serial communication.
Power Focus 3000/PF4000 serial communication.
