ACTA 4000 User Guide Measurement results
9836 4171 01 2008-12 83 (136)

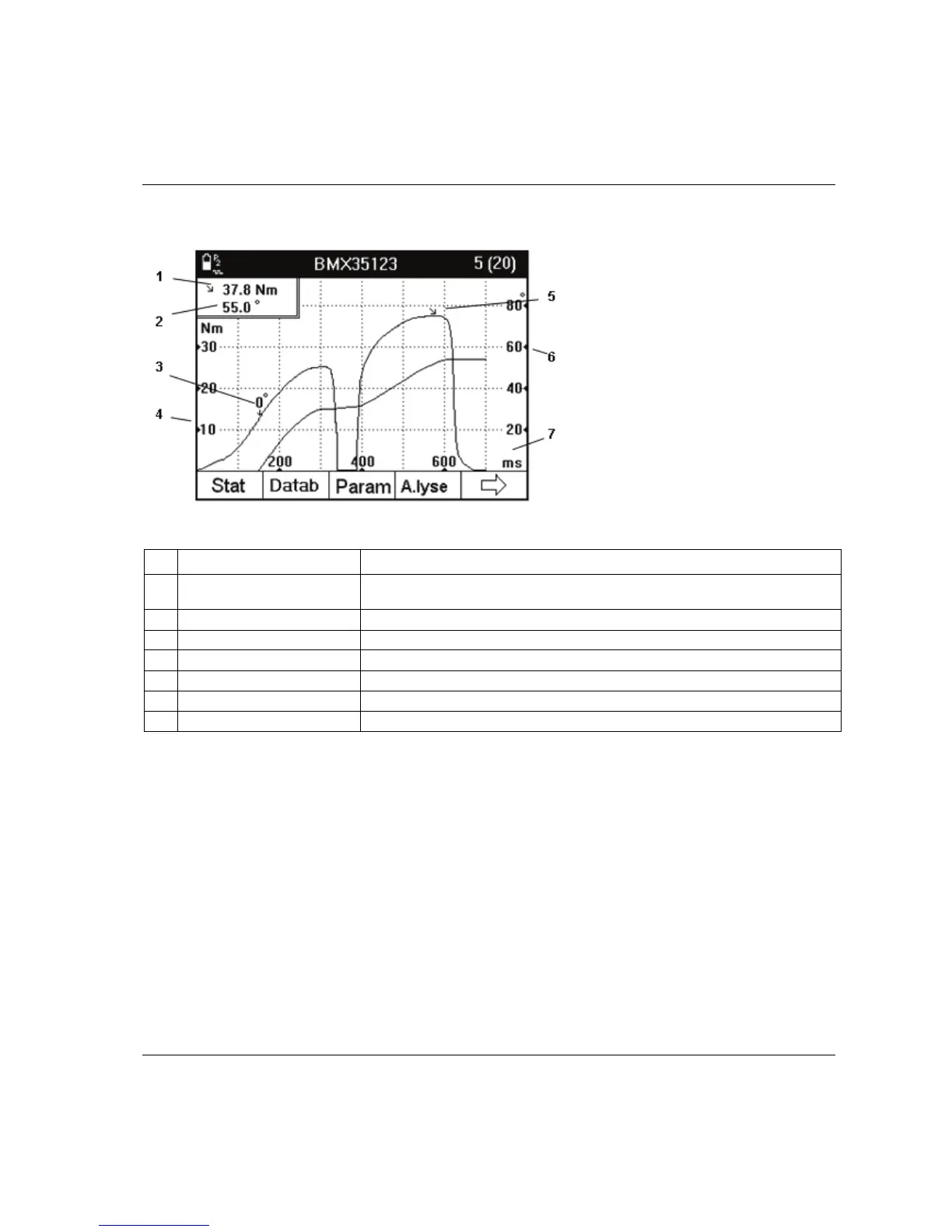

6.2.3 Trace Measurement dialog box
Trace measurement dialog box
In addition to the Basic and
Custom Display dialog box, ACTA
Advanced Analysis also features a
Trace display dialog box. This
dialog box displays measurements
graphically according to your
preference.
No Display Description
1 Peak torque The highest torque value during the tightening operation. When the result is outside the
acceptance interval, the text flashes.
2 Measured angle Angle outside the accepted interval flashes in the same way as the torque.
3 Angle start point This is the torque level, defined in the configuration, where the angle starts to count.
4 Scale Y-vice left The values and unit for the Y-scale.
5 Peak point The level where the torque is at maximum and where it stops to count.
6 Scale Y-vice right Angle information when parameter includes torque and angle (time).
7 Scale X-vice The values and unit for the X-scale.
The Trace Display Window can easily be configured to display traces of Torque and Angle, Torque and
Time or, Torque and Angle over Time.
The Trace Display Window also features a Zoom-in function. If it is necessary study an area of the
tightening operation curve in detail, it can be zoomed-in up to five consecutive times. See section
Programming ACTA, menu block
Param (Parameters) for instructions.
