• "Receiving (<number of active calls>)": The test call has been automatically
activated by calls received for this configured test call endpoint from the
configured remote endpoint. When all these calls terminate, the status returns to
"Idle".
• "Terminating (<number of active calls>)": The Drop Call command has been
clicked to stop the test call and the test call is in the process of terminating the
currently active test calls.
• "Summary - Established Calls: <established calls>, ASR: <%>": The test call has
been successfully completed (or was prematurely stopped by clicking the Drop
Call command) and shows the following:
♦ Total number of test calls that were established.
♦ Number of successfully answered calls out of the total number of calls
attempted (ASR).
40.1.3 Test Call Configuration Examples
Below are a few examples of test call configurations.
Single Test Call Scenario: This example describes the configuration of a simple test
call scenario that includes a single test call between a simulated test endpoint on the
device and a remote endpoint.

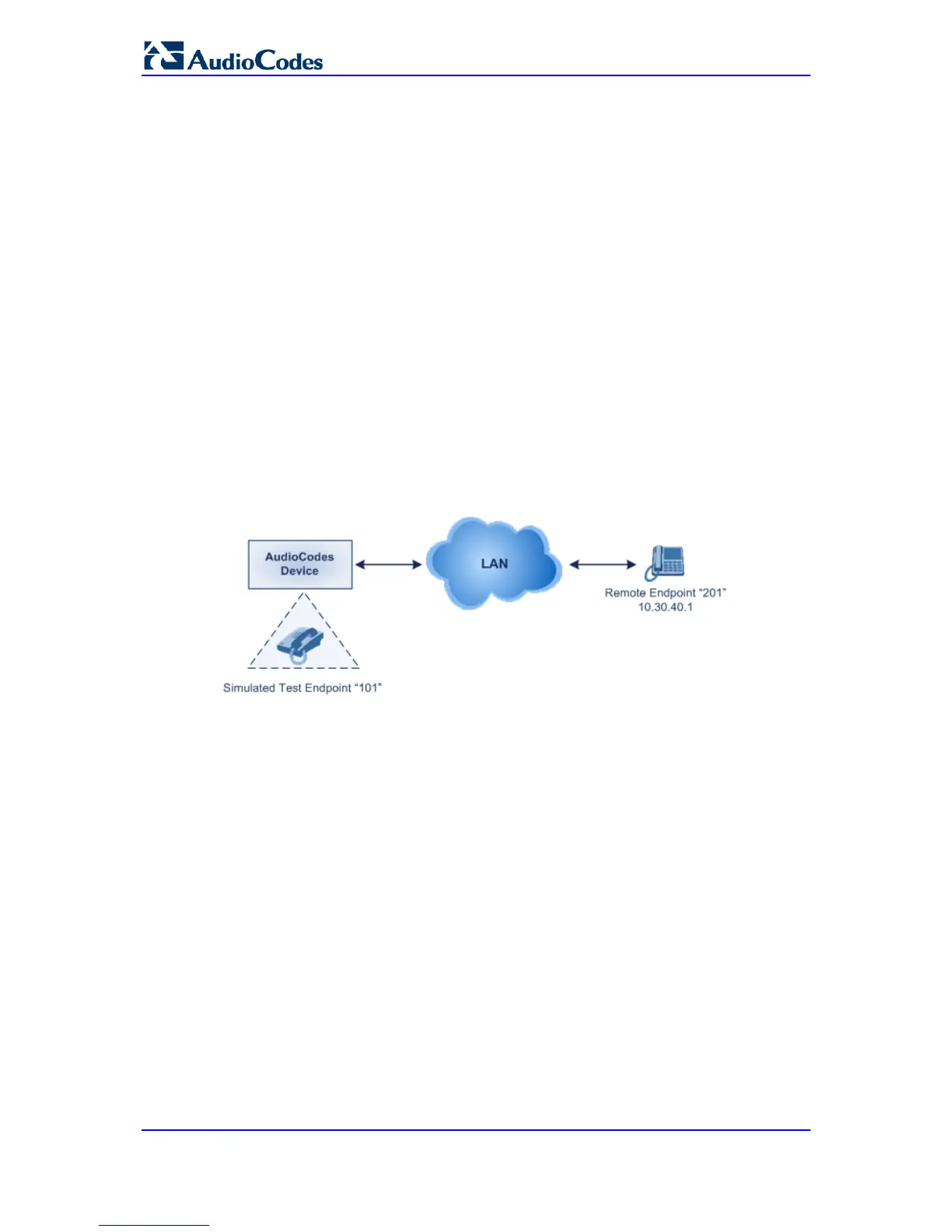

Figure 40-3: Single Test Call Example
• Test Call table configuration:
♦ Endpoint URI: "101"
♦ Called URI: "201"
♦ Route By: Dest Address
♦ Destination Address: "10.30.40.01"
♦ Test Mode: Once (default)
Alternatively, if you want to route the test call using the Tel-to-IP Routing table for the
Gateway / IP-to-IP application, configure the following:
• Test Call table configuration:
♦ Endpoint URI: 101@10.0.0.1
♦ Route By: GW Tel2IP
♦ Called URI: 201@10.30.40.1
• Tel-to-IP Routing table configuration:
♦ Dest. Phone Prefix: 201 (i.e., the Called URI user-part)
♦ Source Phone Prefix: 101 (i.e., the Endpoint URI user-part)
♦ Dest. IP Address: 10.30.40.1
