3-7

Confidential

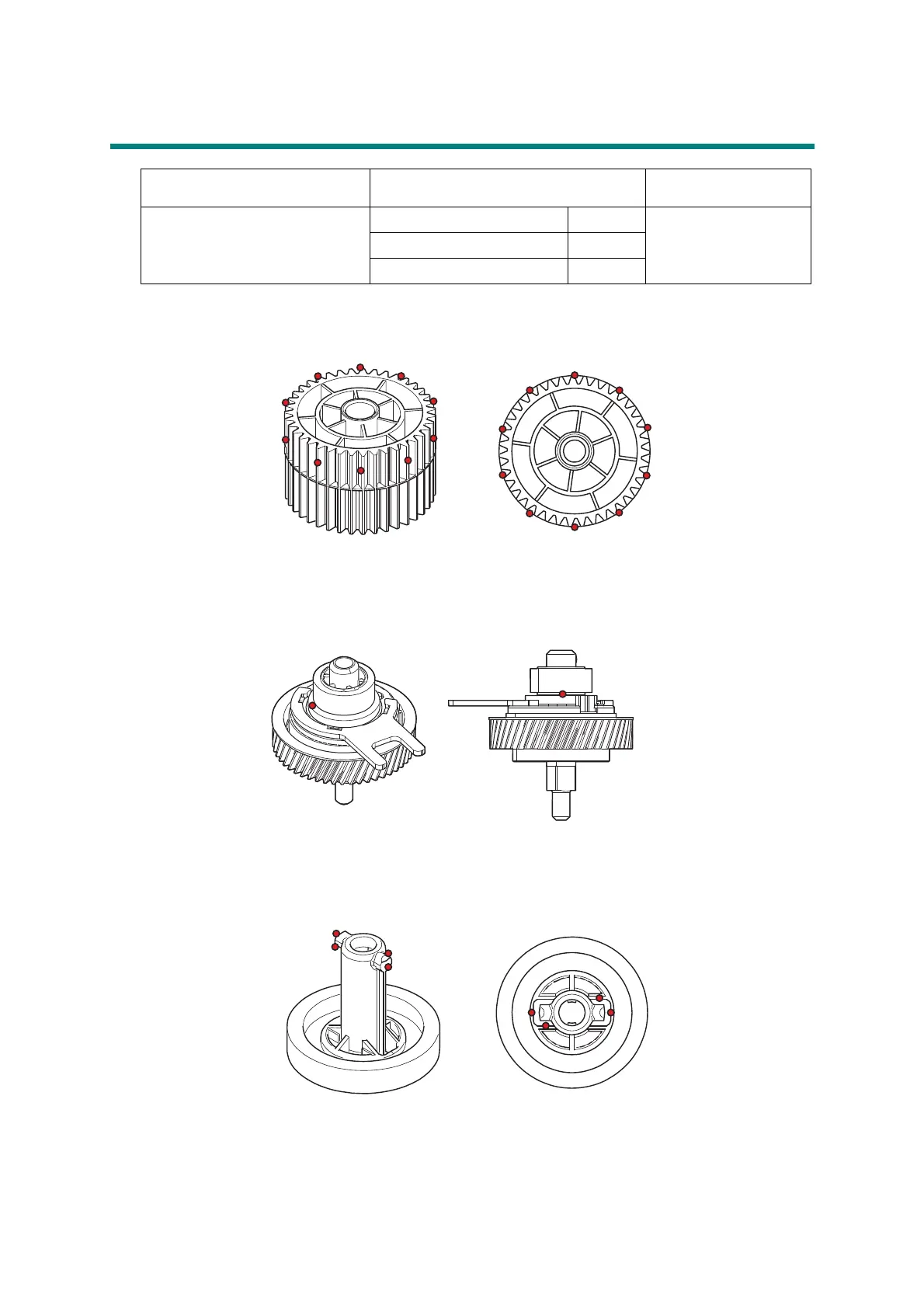

5. LUBRICATION

 Fuser drive gear 39

Fig. 3-3

 Develop clutch 51R

Fig. 3-4

 Develop joint gear 37

Fig. 3-5

Lubricating oil type

(Maker name)

Lubrication point Quantity of lubrication

FLOIL BG-10KS (Kanto Kasei)

Fuser drive gear 39 10 places

1.5 - 2.0 mm dia. ballDevelop clutch 51R 1 place

Develop joint gear 37 4 places
