1.3.21 Print frame pattern (single-side printing) (function code: 69)
<Function>
This function is used to print the frame pattern on single side of the paper to check for printing
flaws and omission.
<Operating Procedure>
(1) Set the paper specified in the default paper settings (A4 or Letter) to the paper tray.
(2) Press the [6], and then the [9] key in the initial state of maintenance mode. "PRINTING"
is displayed on the LCD, and the frame pattern (refer to the figure below) is printed on
single side of the paper.
(3) When printing is completed, "WAKU SX" is displayed on the LCD.
(4) When the [X] key is pressed, the machine stops this operation and returns to the initial
state of maintenance mode.

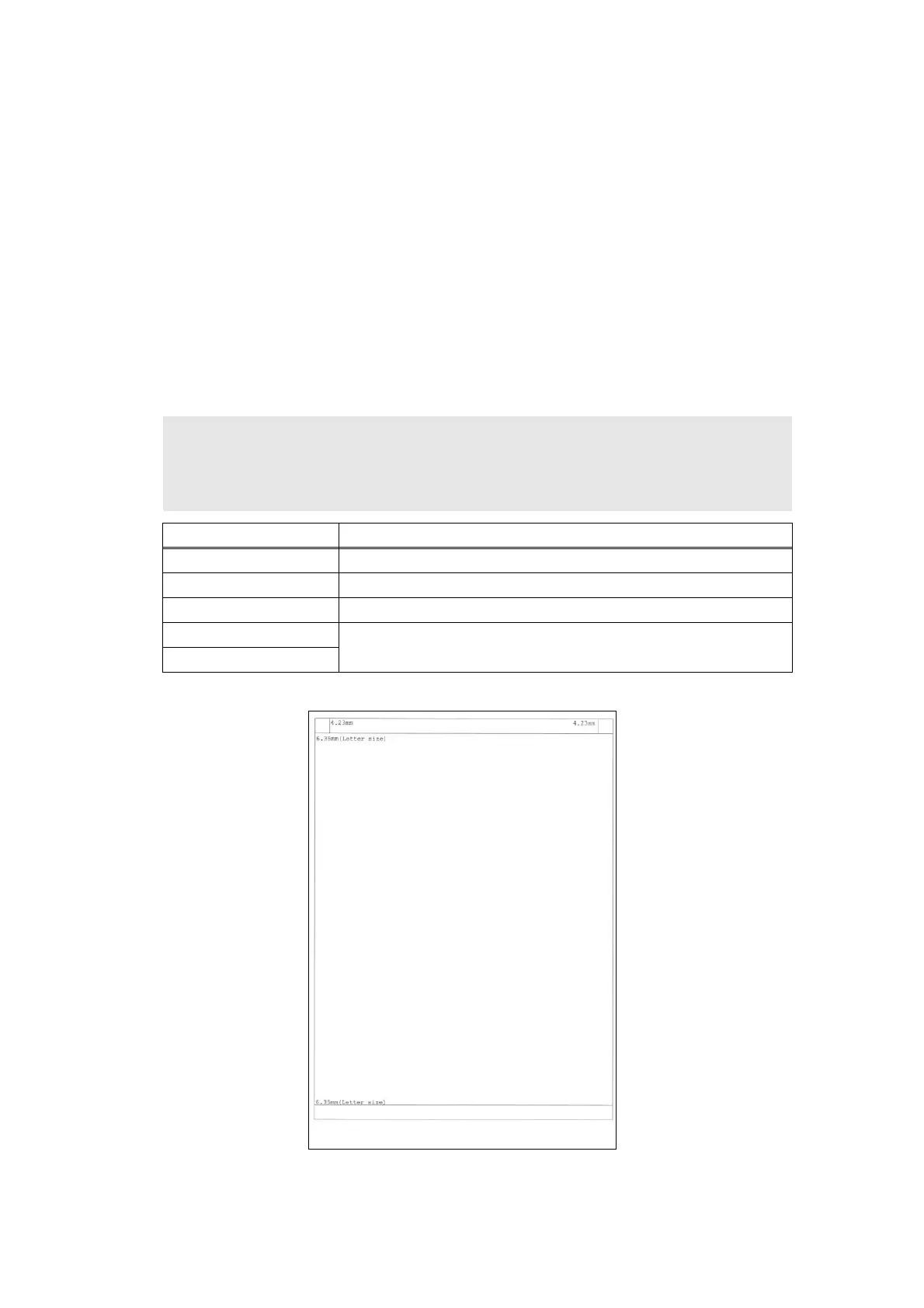

 Frame pattern
Fig. 5-12
Note:
• If printing fails, printing is stopped with displaying any of the errors shown in the table below. To
retry printing, refer to the "Remedy" in the table below and eliminate the error cause. "PRINTING"
is displayed on the LCD, and the frame pattern is printed on a single sheet of paper.
Error display Remedy
Replace Toner Replace the toner cartridge to release the error.
Cover is Open Close the front cover.
No Paper Refill the paper and close the paper tray to release the error.
Jam Tray1 Remove the jammed paper, and then close the paper tray and all
covers to release the error.
Jam Rear
