3-102

Confidential

9.34 Internal temperature sensor

(1) Release the internal temperature sensor harness from the securing fixtures, and remove

the internal temperature sensor.

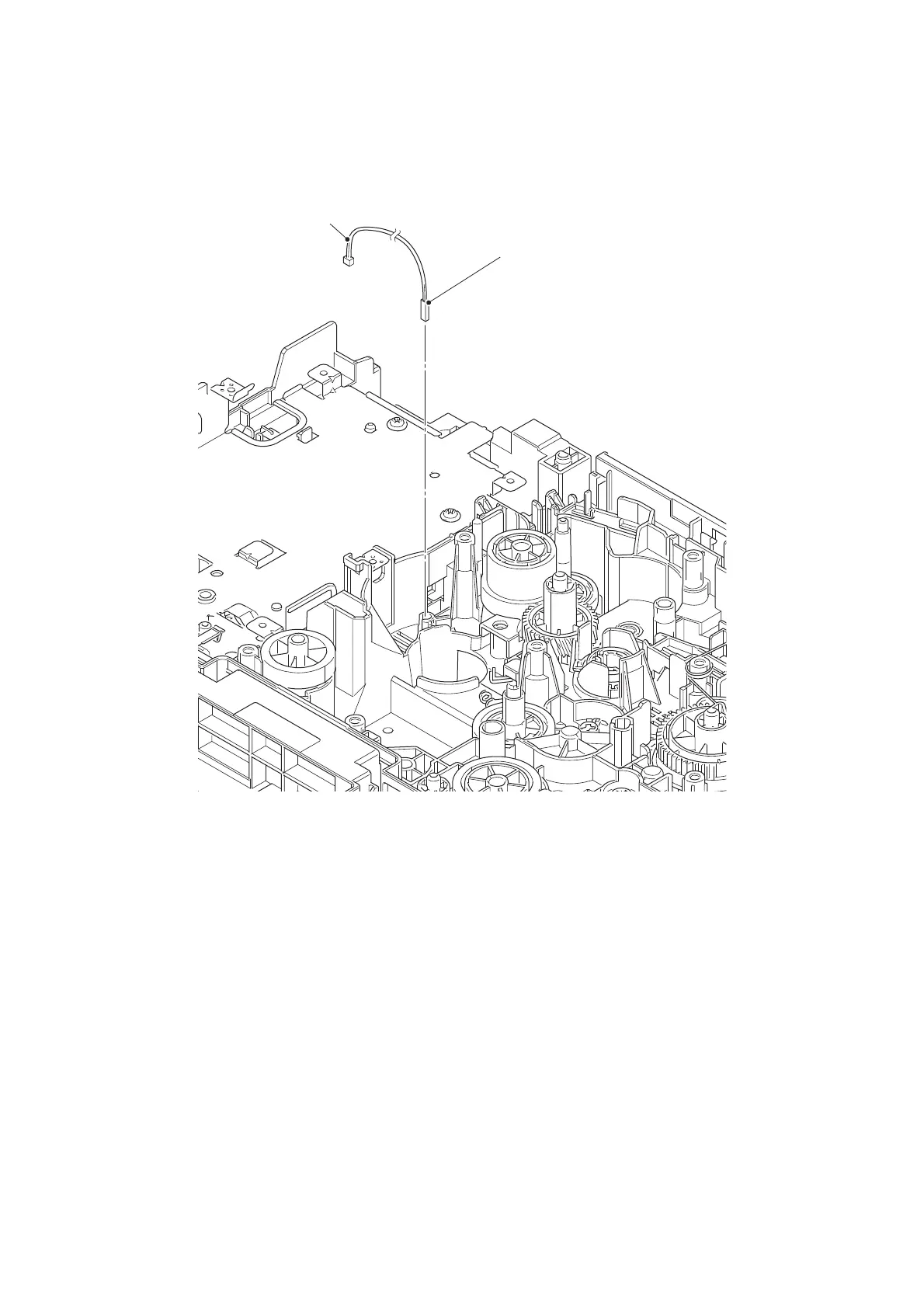

Fig. 3-102

Harness routing: Refer to “10. Left side of the machine”.

Internal temperature sensor

Internal temperature sensor harness
