3-129

Confidential

10.7 LT pickup clutch

(1) Release the LT pickup clutch harness from the securing fixtures. Release the hook, and

remove the LT pickup clutch from the LT unit.

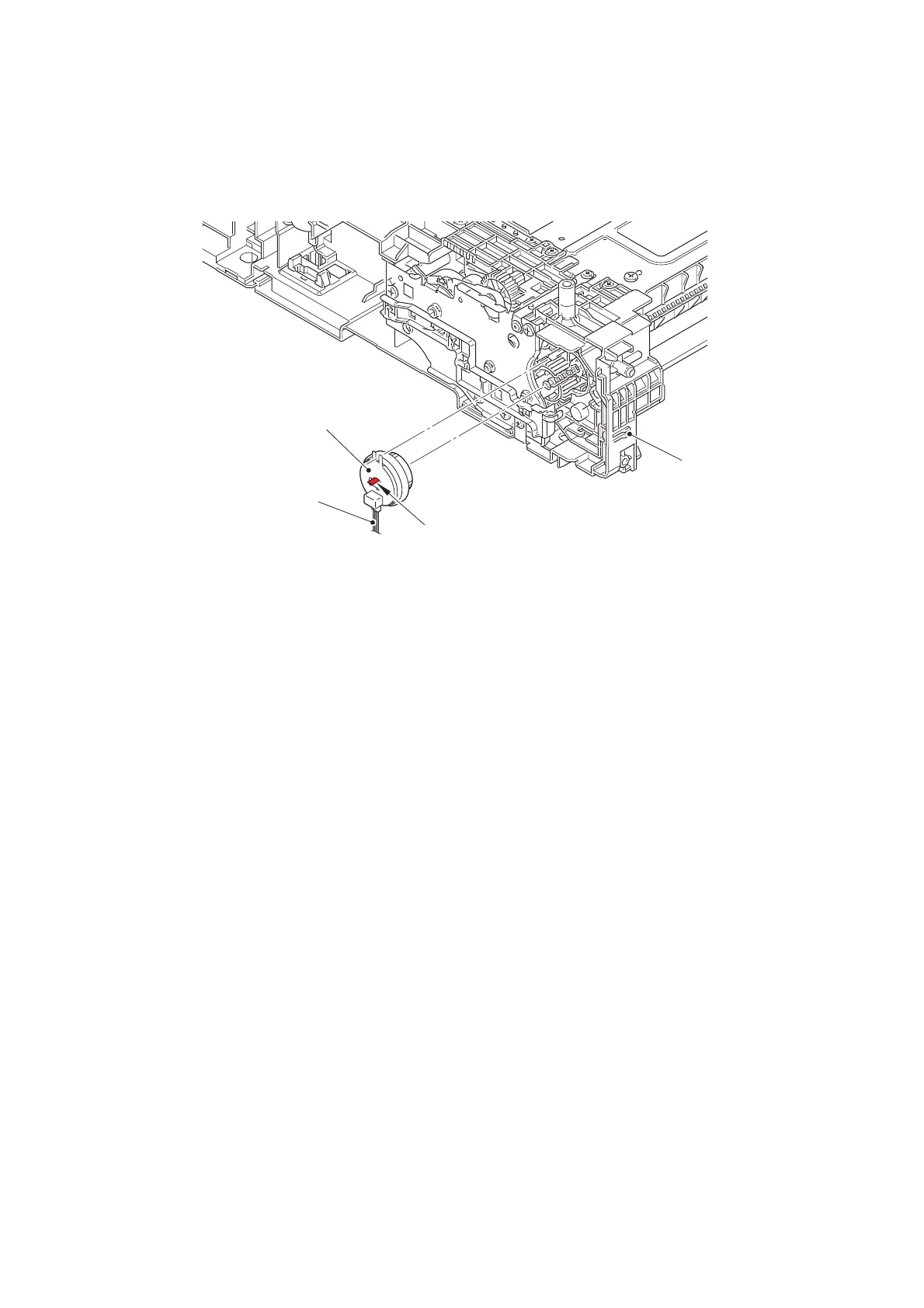

Fig. 3-131

LT unit

LT pickup clutch

LT pickup clutch harness

Hook
