2.4 PF kit MP
(1) Push the front cover release button, and open the front cover ASSY.
(2) Open the MP roller cover. Release the hook on the MP holder bushing, and slide the MP
holder bushing in the direction of the arrow 2.
(3) Slide the MP roller holder ASSY in the direction of the arrow 3 to remove it from the MP
separation roller shaft. Then remove the MP roller holder ASSY.
(4) Raise the MP separation pad ASSY to the 50-degree position, and remove it in the
direction of the arrow 4.
(5) Remove the MP separation pad spring.

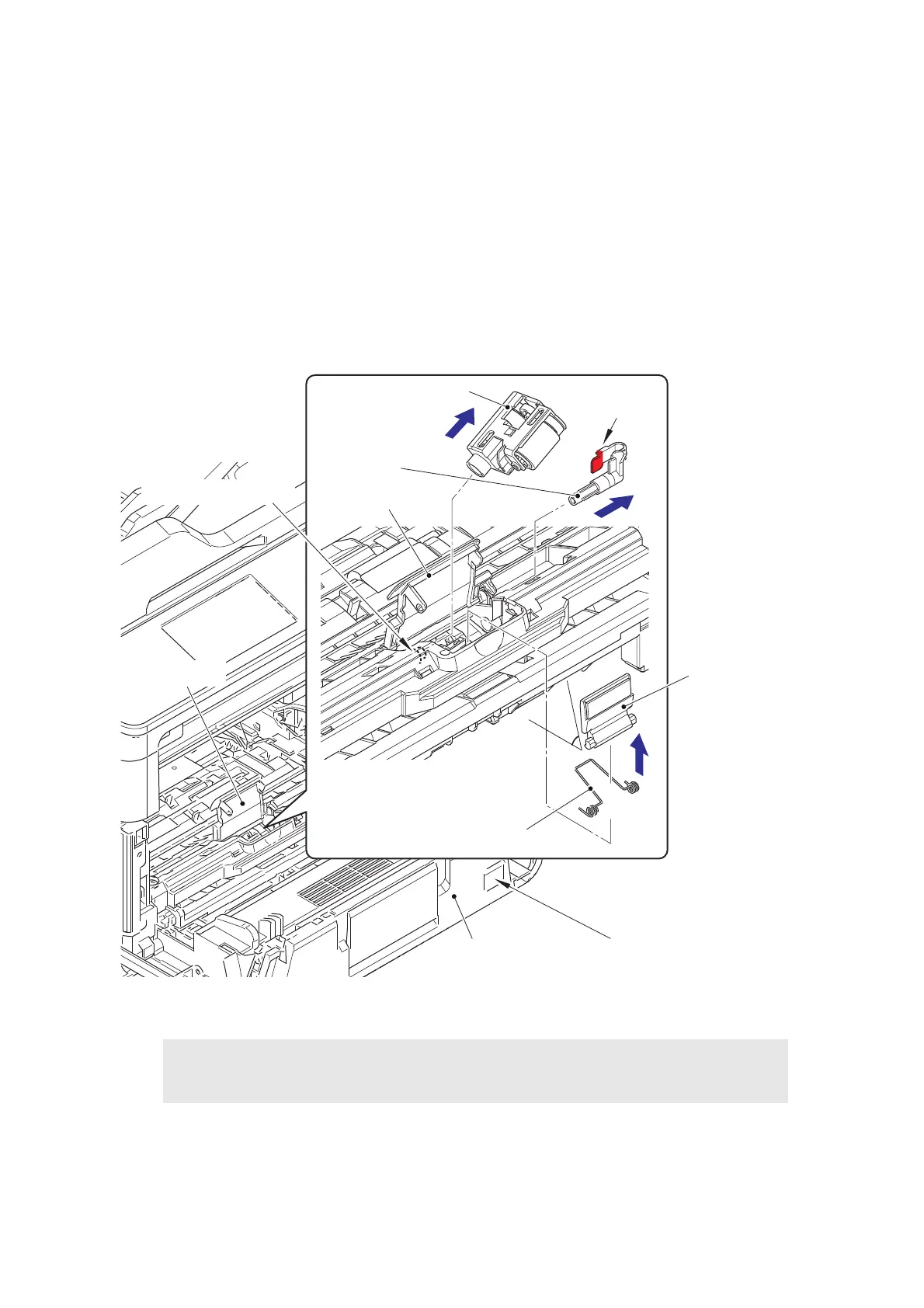

Fig. 7-20
Assembling Note:
• Attach the MP roller holder ASSY while pushing the MP separation pad ASSY.
MP separation
pad ASSY
MP separation pad spring
MP holder bushing
MP roller holder ASSY
Front cover release button
Front cover ASSY
Hook
50°
MP separation roller shaft
3
2
4
MP roller cover
MP roller cover
