3-137

Confidential

10.11 LT paper empty sensor PCB ASSY

(1) Release the hook on the bushing, and pull out the LT separation roller shaft to remove

the LT paper empty actuator.

(2) Release the hook, and remove the LT paper empty actuator cover.

(3) Release the LT paper empty sensor harness from the securing fixtures.

(4) Remove the taptite bind B M3x10 screw, and remove the LT paper empty sensor PCB

ASSY.

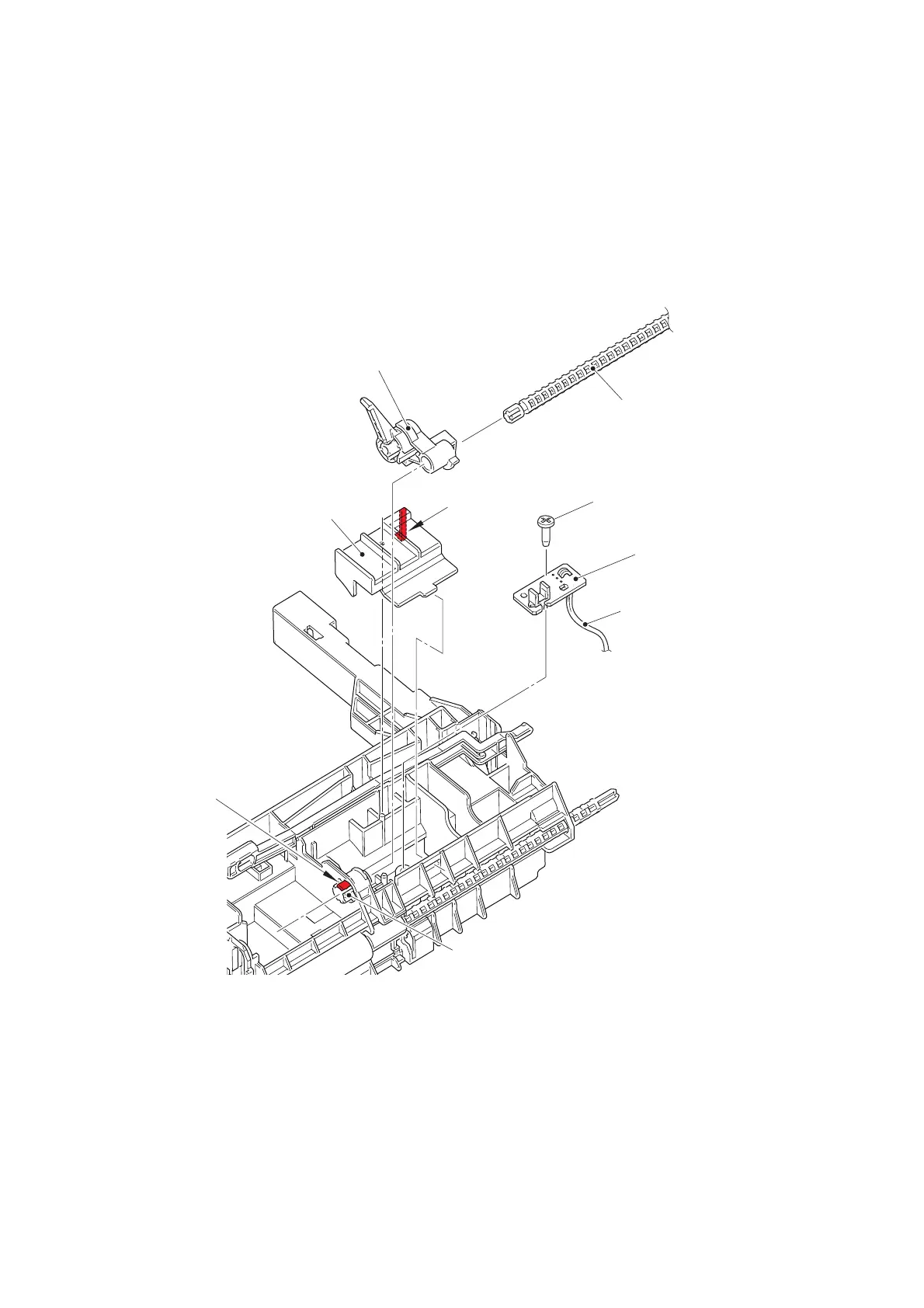

Fig. 3-140

LT paper empty actuator

LT paper empty actuator cover

LT paper empty sensor

PCB ASSY

LT separate roller shaft

LT paper empty sensor

harness

Hook

Taptite bind B M3x10

Bushing
