7-20

Confidential

2.6 PF kit 2/3/4/5

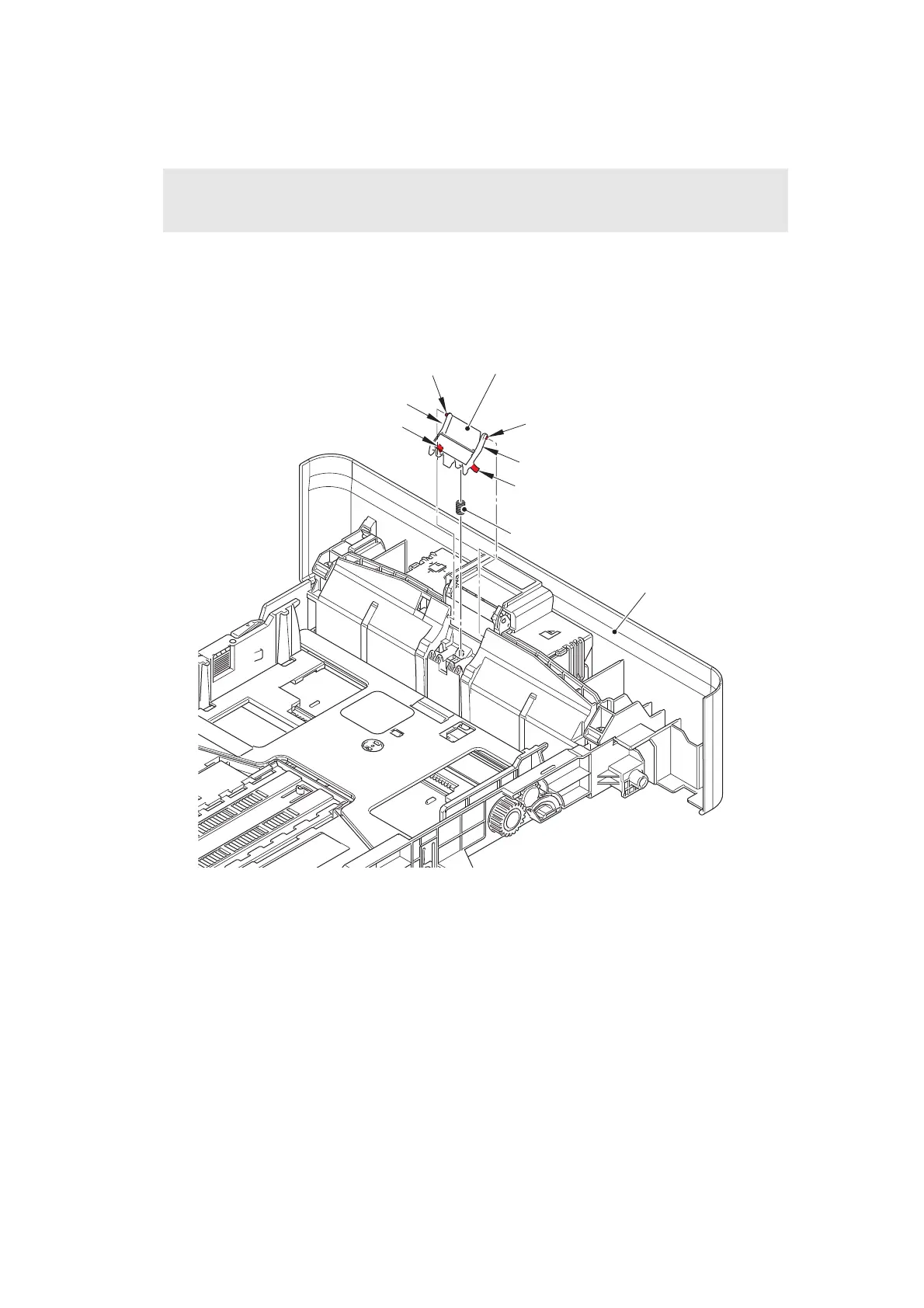

(1) Release the two hooks on the separation pad ASSY from the paper tray.

(2) Push both side arms on the separation pad ASSY inwards to remove the pins, and

remove the separation pad ASSY from the paper tray.

(3) Remove the separation pad spring from the separation pad ASSY.

Fig. 7-23

Note:

• Disassembly procedures of the PF kit are common to LT and TT.

Separation pad ASSY

Hook

Arm

Separation pad spring

Paper tray

Hook

Arm
