Page #239 background image

Loading...

Page #239 background image

3-79

Confidential

9.19 External temperature/humidity sensor

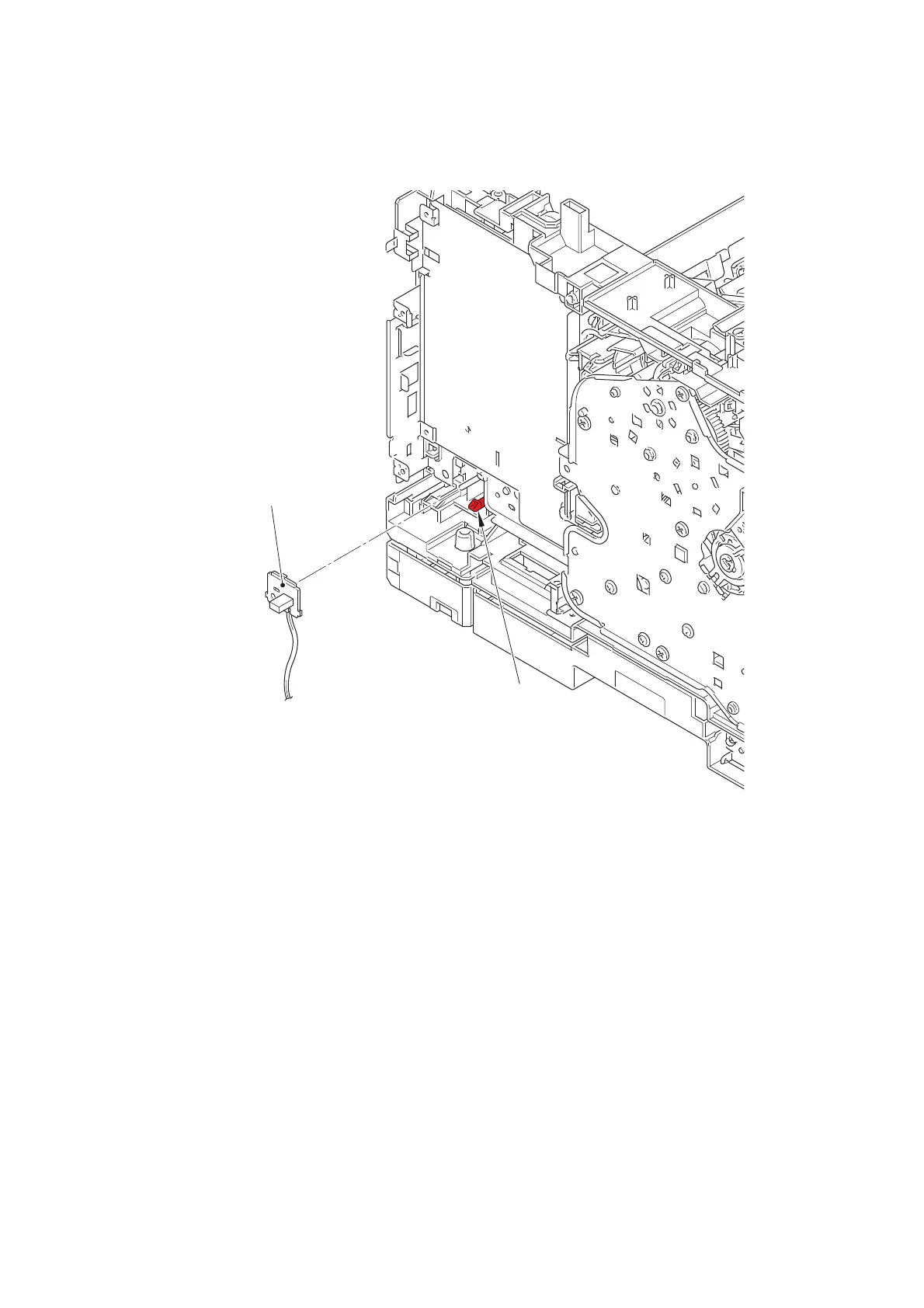

(1) Release the hook, and remove the external temperature/humidity sensor.

Fig. 3-77

External temperature/

humidity sensor

Hook
