3-40
Confidential
9.10 ADF/document scanner unit
(1) Remove the tape to remove the modem FG harness L from the main shield plate.
(2) Remove the three screw cup M3x8 screws (Black), and remove the ADF FG harness,
FB FG harness, modem FG harness L and main shield plate.
(3) Remove the taptite cup S M3x8 SR screw, and remove the panel FG harness.

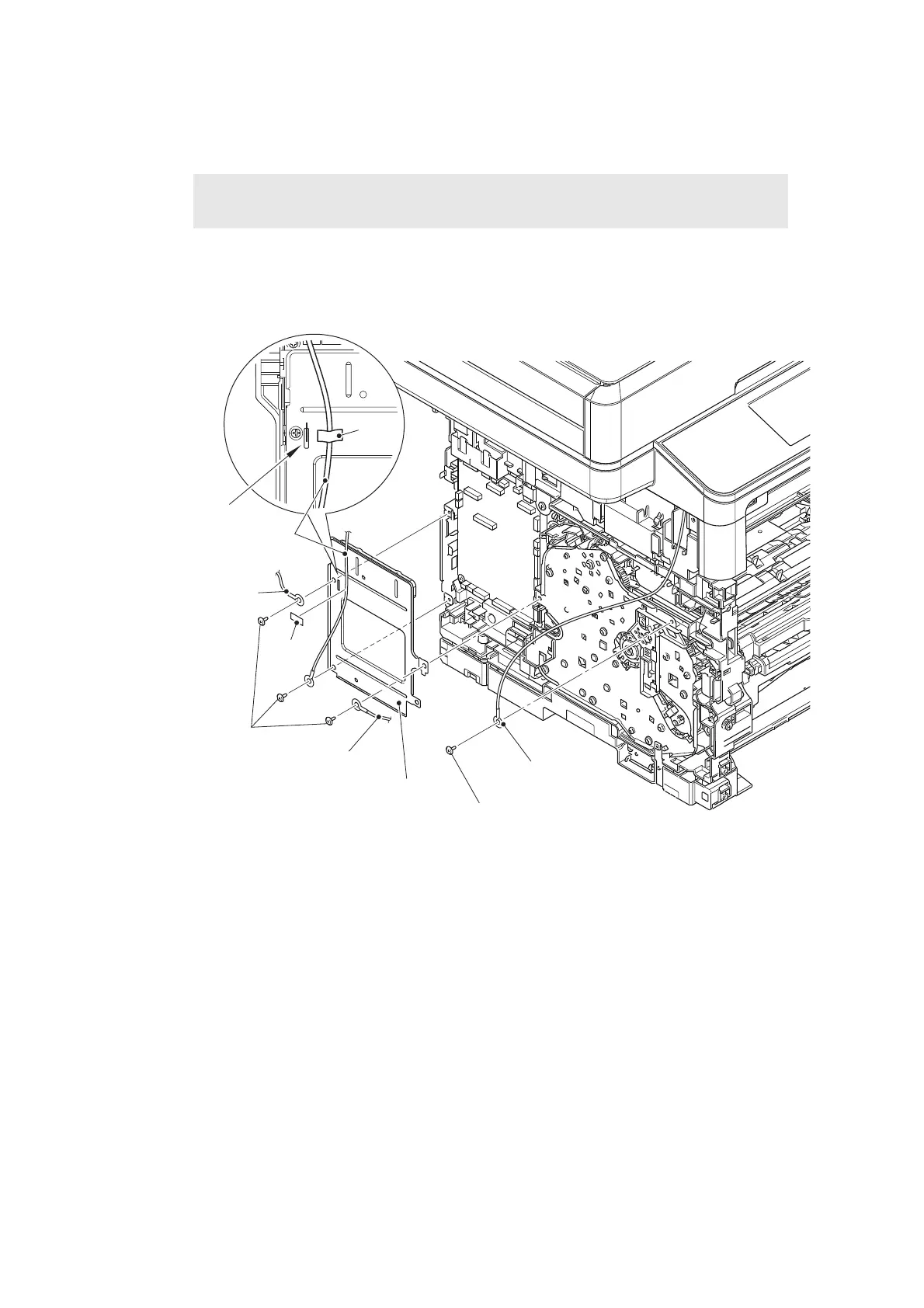

Fig. 3-30
Harness routing: Refer to “1. ADF unit - Main PCB ASSY”, “2. Document scanner unit -
Main PCB ASSY”.
Assembling Note:
• Attach the modem FG harness L on the right side than “A” using a tape.
Panel FG harness
Taptite cup S M3x8 SR
Screw cup M3x8
(Black)
ADF FG harness
Modem FG harness L
Main shield plate
FB FG harness
Tape
“A”
Tape
To Next Page
