3-107
Confidential
9.38 LT/TT connector
For models with 520-sheet T1
(1) Remove the three taptite bind B M4x30 screws, and remove the bottom frame L from the
main frame L ASSY. Then pull out the LT/TT connector harness from the hole of the
main frame L ASSY.
(2) Release the two hooks A, and remove the LT/TT connector from the bottom frame L.
For models with 250-sheet T1
(3) Release the two hooks A, and remove the LT/TT connector from the main frame L ASSY.
Common to all models
(4) Release the two hooks B to disconnect the LT/TT connector harness from the LT/TT
connector.

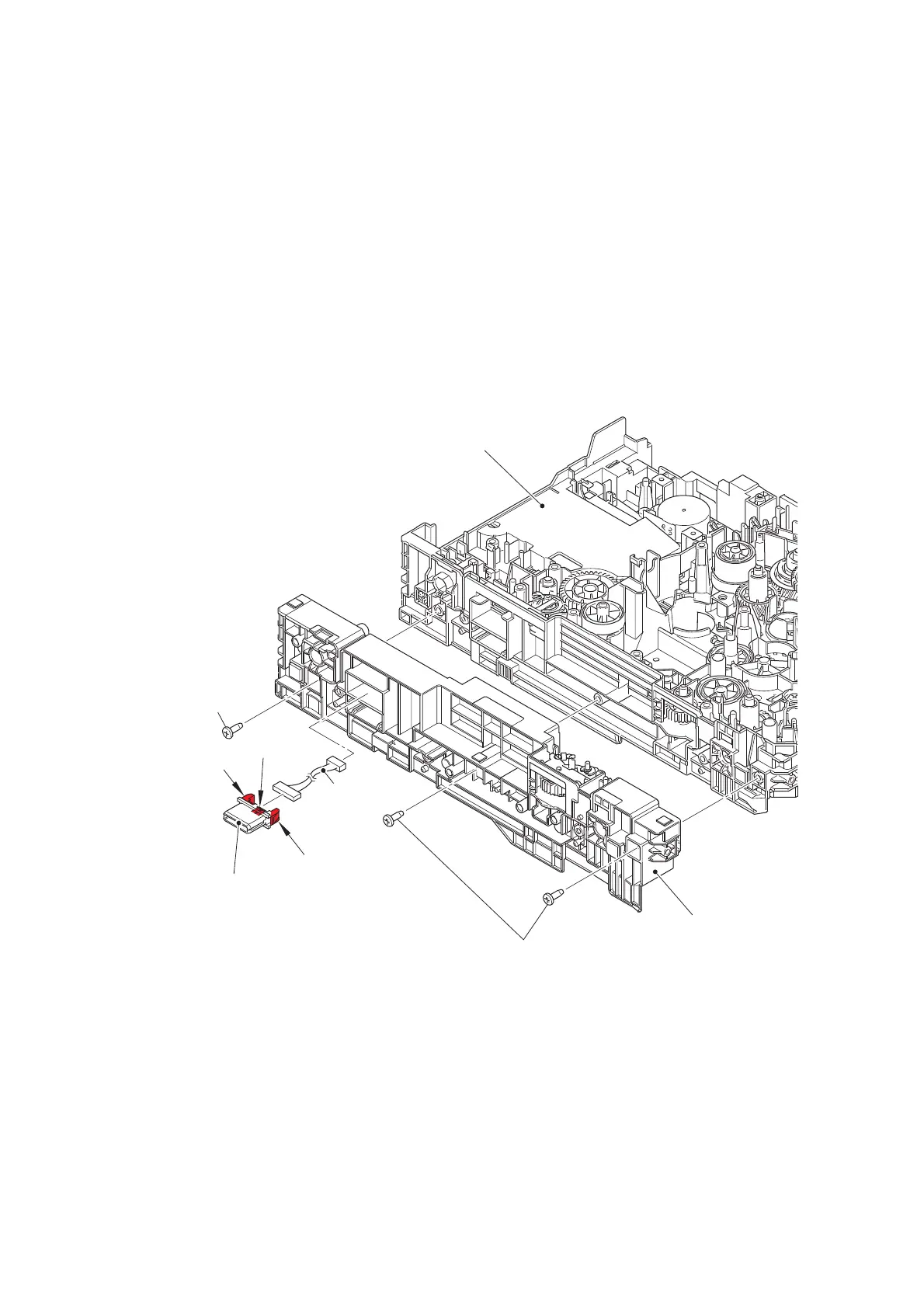

Fig. 3-107
Bottom frame L
Main frame L ASSY
Taptite bind B M4x30
LT/TT connector
harness
Taptite bind B M4x30
Hook A
Hook A
LT/TT connector
Hooks B
To Next Page
