3-64

Confidential

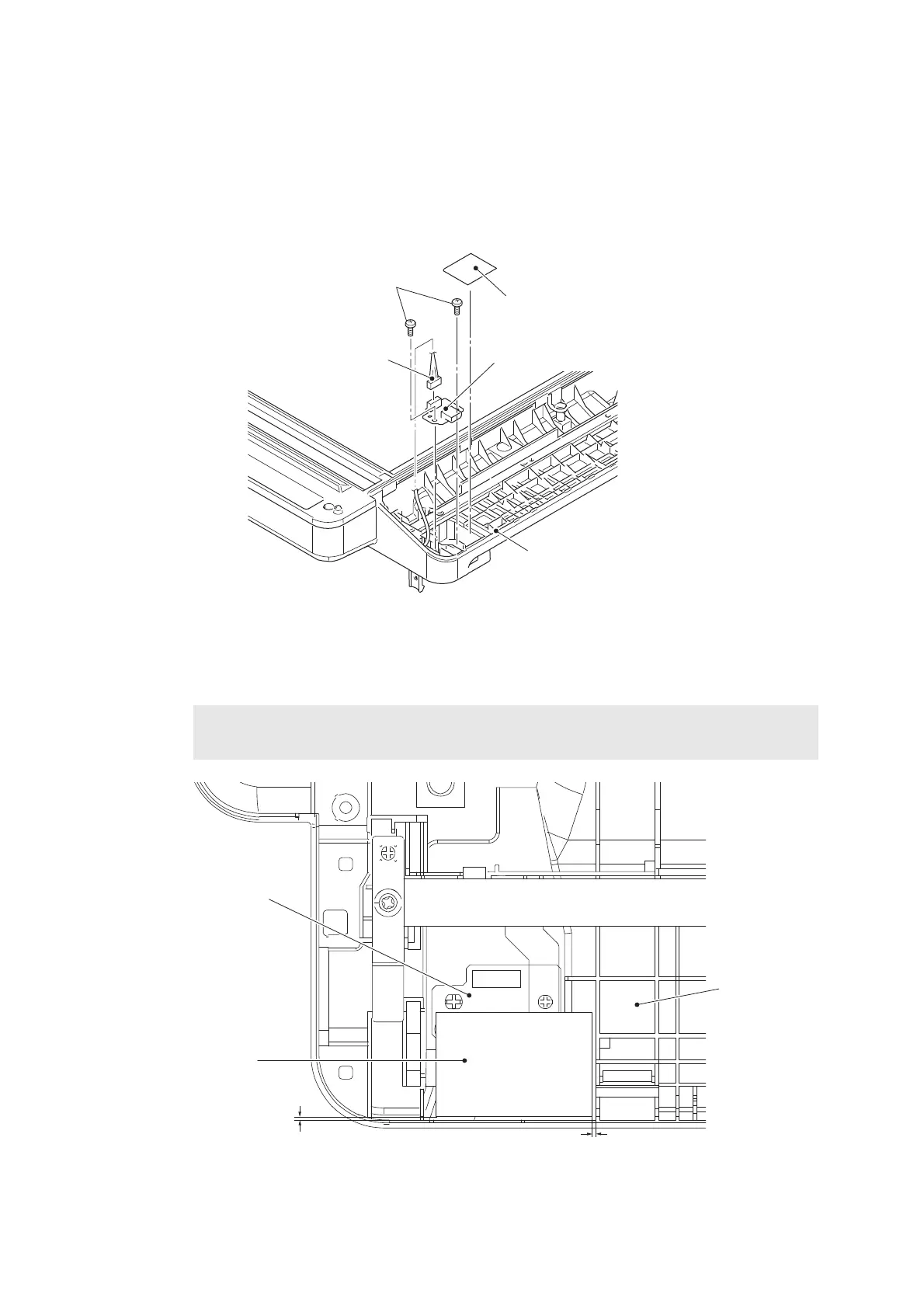

9.13 USB host PCB ASSY

(1) Remove the USB protection sheet.

(2) Remove the two taptite bind B M4x12 screws to remove the USB host PCB ASSY from

the document scanner unit. Disconnect the USB host harness from the USB host PCB

ASSY.

Fig. 3-59

Harness routing: Refer to “5. Document scanner unit”.

Fig. 3-60

Assembling Note:

• Attach the USB protection sheet at the position shown in the illustration below.

USB protection sheet

Taptite bind B M4x12

USB host harness

USB host PCB ASSY

Document scanner unit

USB protection sheet

USB host PCB ASSY

Document

scanner unit

0 to 1 mm
