3-130
Confidential
10.8 LT release clutch
For models with 520-sheet
(1) Remove the two taptite bind B M4×12 screws, and remove the under bar front.
(2) Remove the taptite cup S M3x8 SR screw, and remove the under bar ground plate L
(520).
For models with 250-sheet
(3) Remove the two taptite bind B M4x12 screws and two taptite cup S M3x8 SR screws
(3a) (3b) to remove the under bar front.
Common to all models
(4) Remove the two taptite bind B M4x12 screws, and remove the under bar.

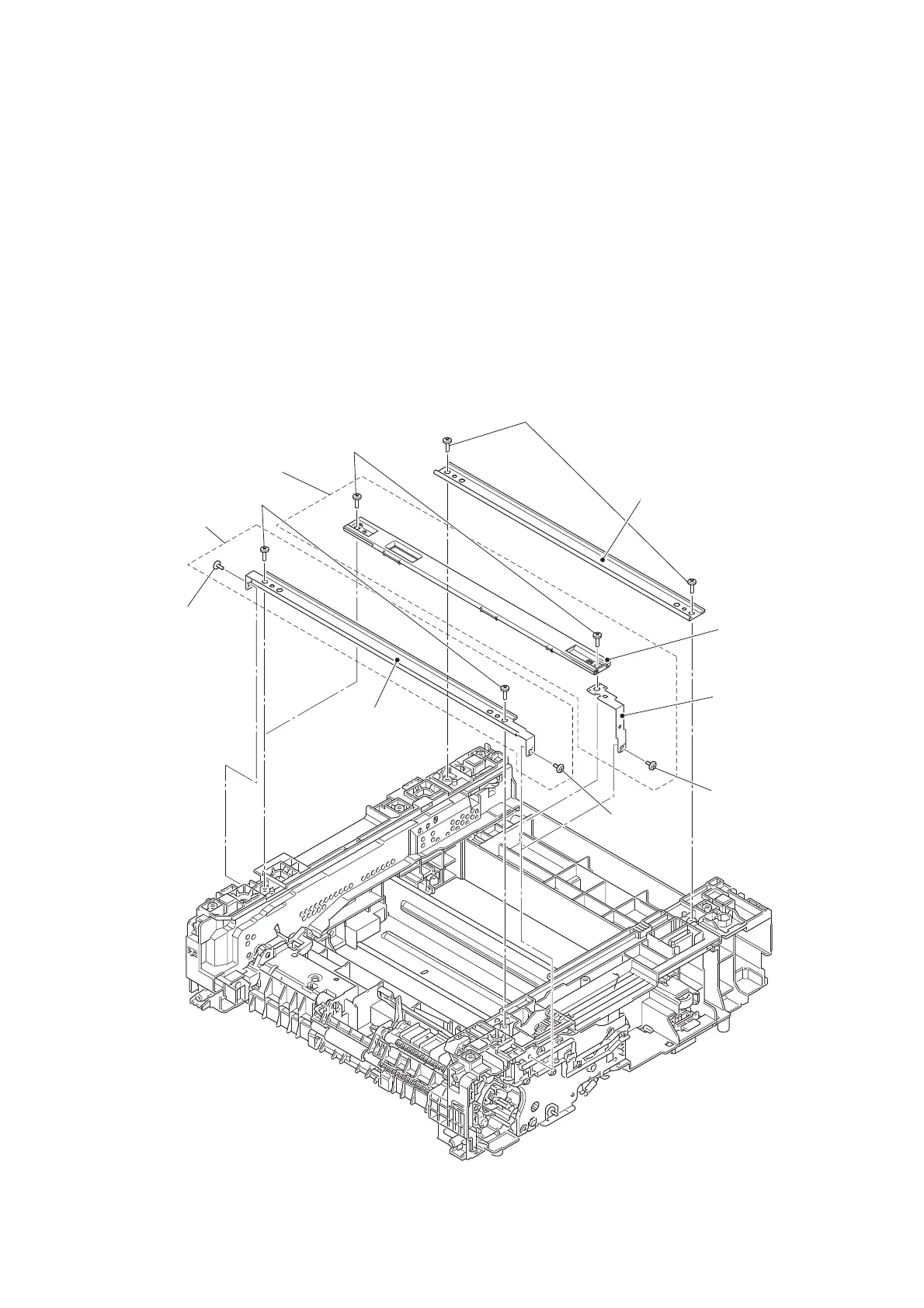

Fig. 3-132
Under bar
Under bar front
Taptite bind B M4x12
Taptite bind B M4x12
Taptite cup S
M3x8 SR (3a)
Taptite cup S
M3×8 SR (3b)
Under bar front
Under bar
ground plate L
(520)
Taptite cup S
M3×8 SR
Taptite bind B M4x12
For models with 520-sheet
For models with
250-sheet
