3-126

Confidential

10.4 LT side cover R

(1) Remove the two taptite bind B M4x12 screws. Release each hook, and remove the LT

side cover R from the LT unit.

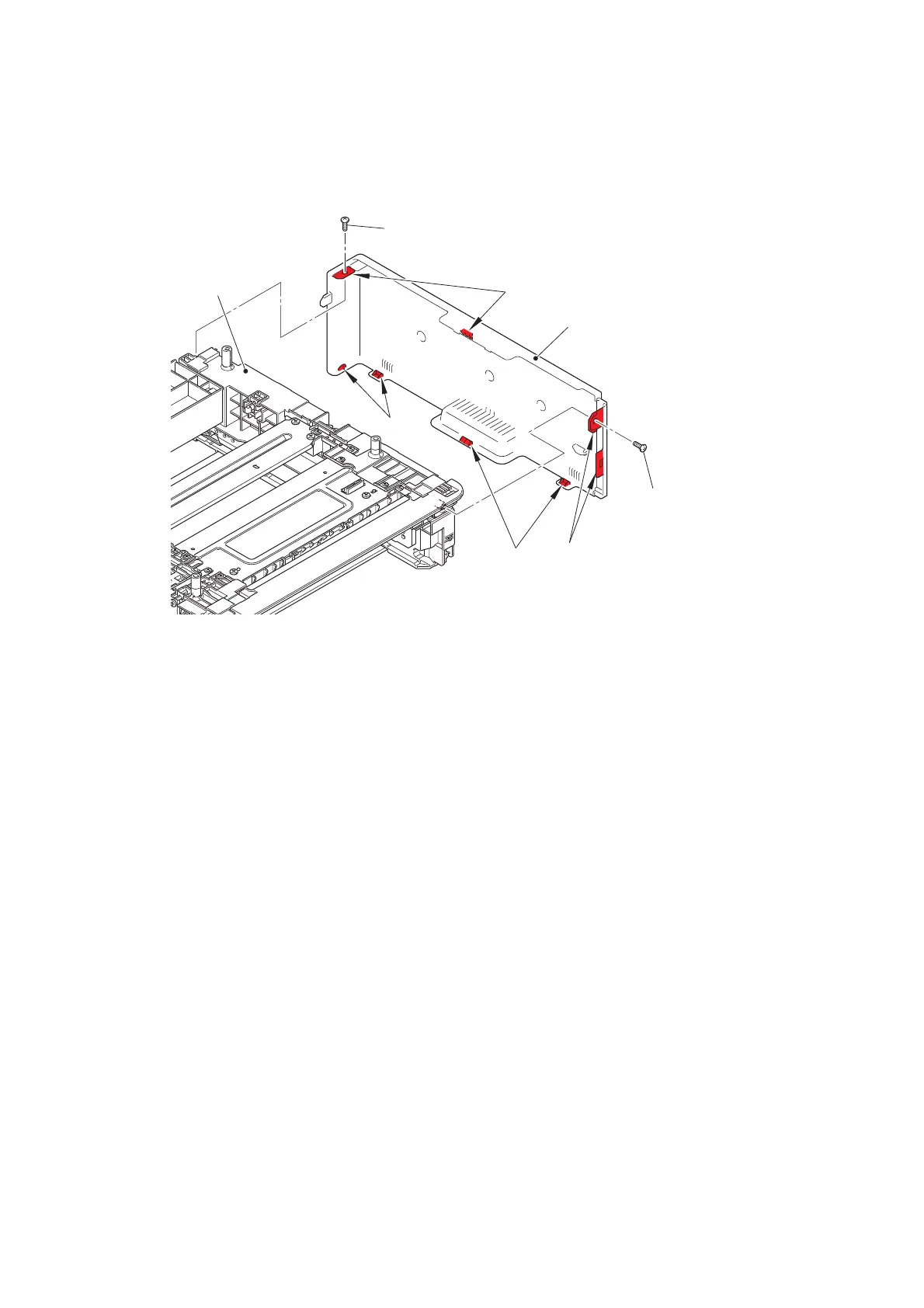

Fig. 3-127

Hooks

Taptite bind B M4x12

Hooks

LT side cover R

Hooks

LT unit

Taptite bind B M4x12
