9.11.4Gear cover, ADF front cover, Document sub tray

(1) Release each hook to remove the gear cover from the ADF unit.

(2) Remove the two taptite cup B M3x10 screws. Release each hook to remove the ADF

front cover from the ADF unit.

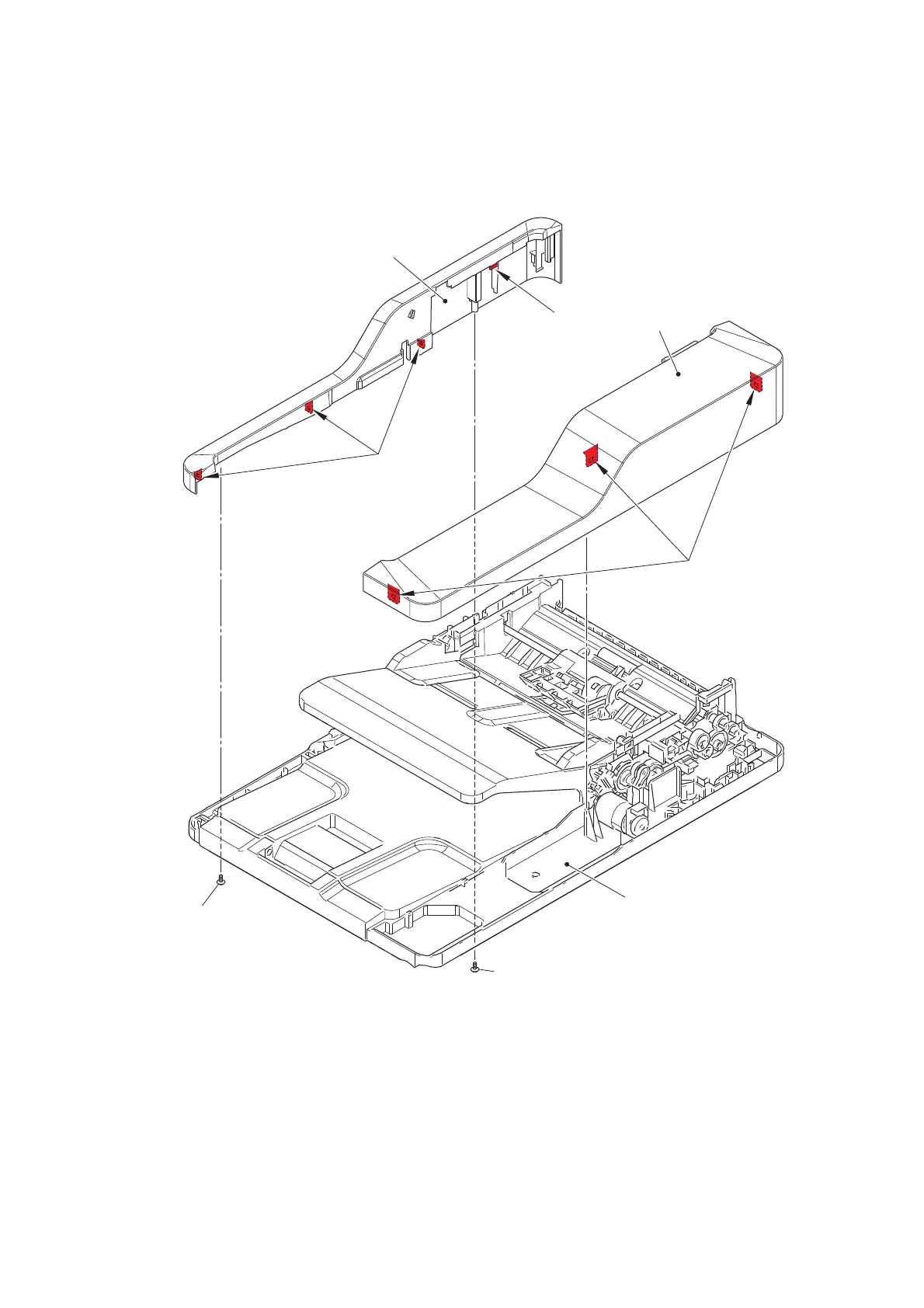

Fig. 3-38

ADF unit

Hooks

ADF front cover

Gear cover

Taptite cup B M3x10

Hook

Taptite cup B M3x10
