9.22 Low-voltage power supply PCB ASSY

(1) Remove the taptite cup S M3x8 SR screw and screw cup M3x8 (black) screw to remove

the scanner ground plate.

(2) Remove the three screw cup M3x8 (black) screws, taptite bind B M4x12 screw, screw

pan M4x8 screw, washer spring 2-4, and washer 5 to remove the LV shield plate cover.

(3) Remove the LVPS insulation sheet.

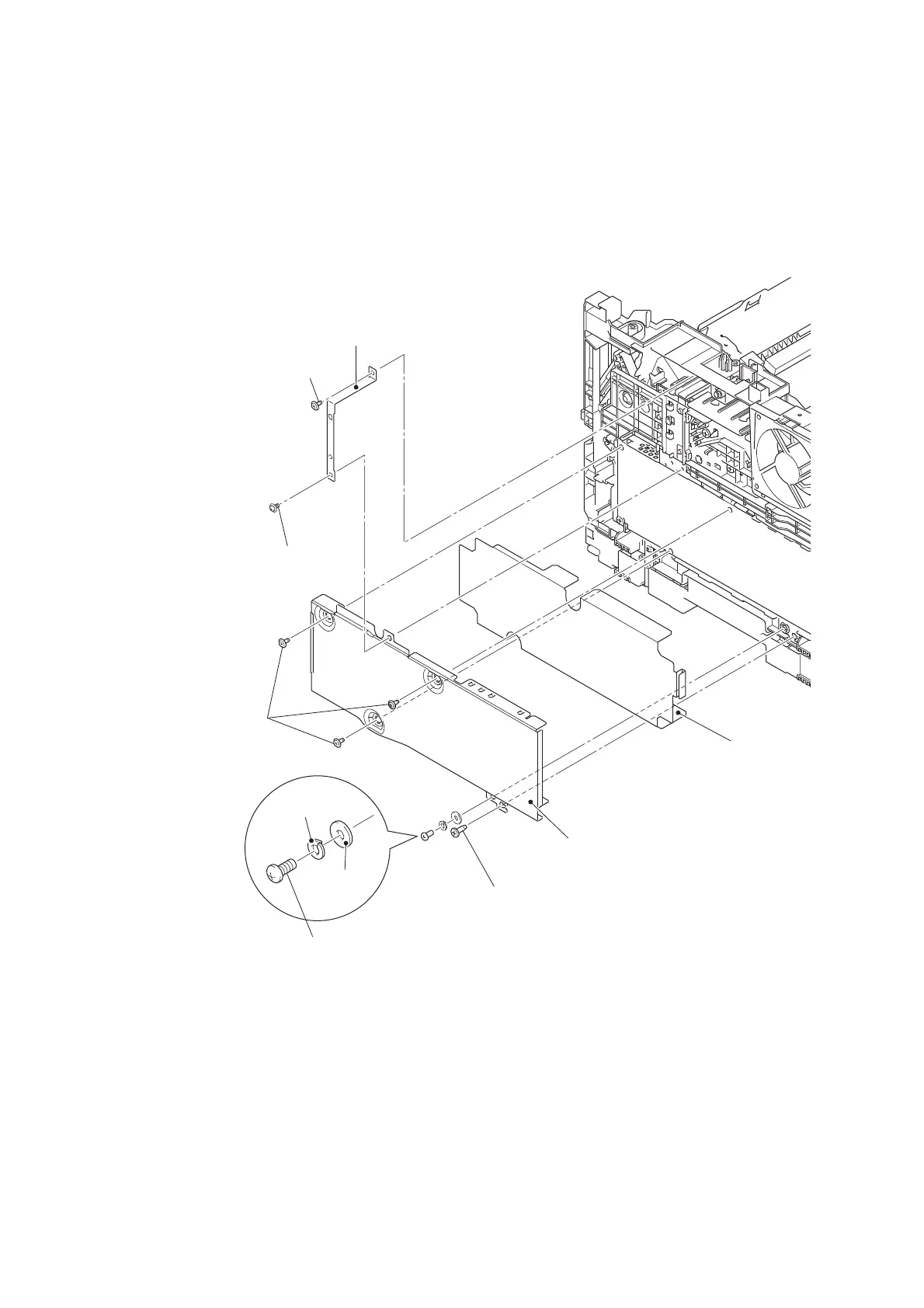

Fig. 3-82

LVPS insulation sheet

LV shield plate cover

Scanner ground plate

Taptite cup S M3x8 SR

Screw cup M3×8 (black)

Screw cup M3×8

(black)

Taptite bind B M4x12

Screw pan M4x8

Washer 5

Washer spring 2-4
