9.12.5NFC PCB ASSY (Models with NFC only)

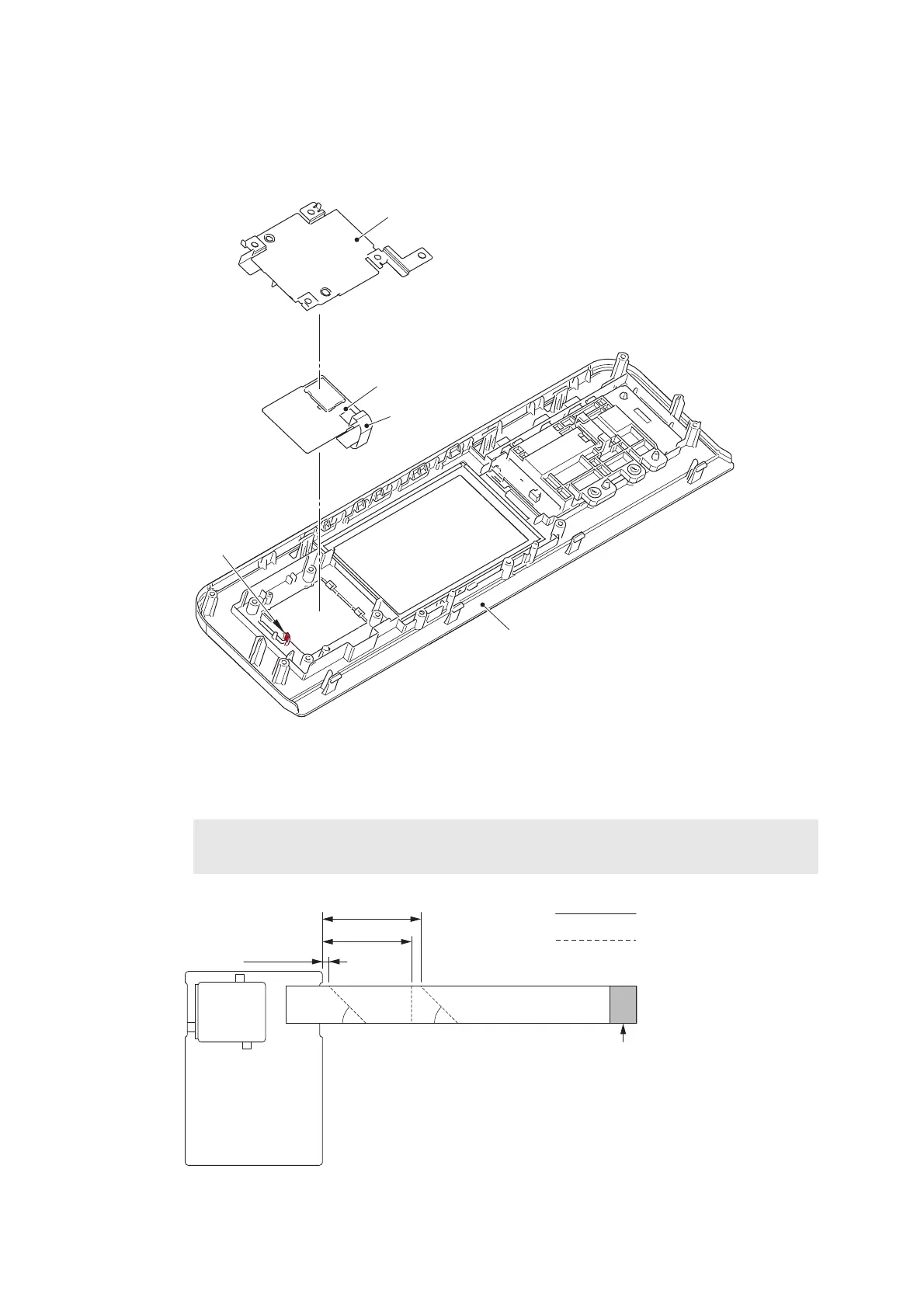

(1) Remove the shield plate base / protection film from the panel unit.
(2) Release the hook to remove the NFC PCB ASSY from the panel unit.
Fig. 3-57
Harness routing: Refer to “7. Panel unit (3.7 inch model)”.
Fig. 3-58
Assembling Note:
• Fold the NFC flat cable at the positions shown in the figure below.
Panel unit
Hook
NFC PCB ASSY
Shield plate base / Protection film
NFC flat
cable
2±1
45°45°
29±1
26±1
Mountain fold
Valley fold
Panel PCB
side
Reinforcing plate
