Brother MFC-8535DN Service Manual

3-114
Confidential
(4) Turn the T1 paper feed actuator in the direction of the arrow 4a, and push the hook on
the T1 paper feed actuator holder to slide the T1 paper feed actuator in the direction of
the arrow 4b to remove it from the T1 paper feed actuator holder.
(5) Remove the T1 paper feed actuator spring from the T1 paper feed actuator.
(6) Remove the securing fixtures of the T1 paper feed sensor harness from the T1 paper
feed actuator holder. Release the hook, and remove the T1 paper feed sensor PCB
ASSY from the T1 paper feed actuator holder.

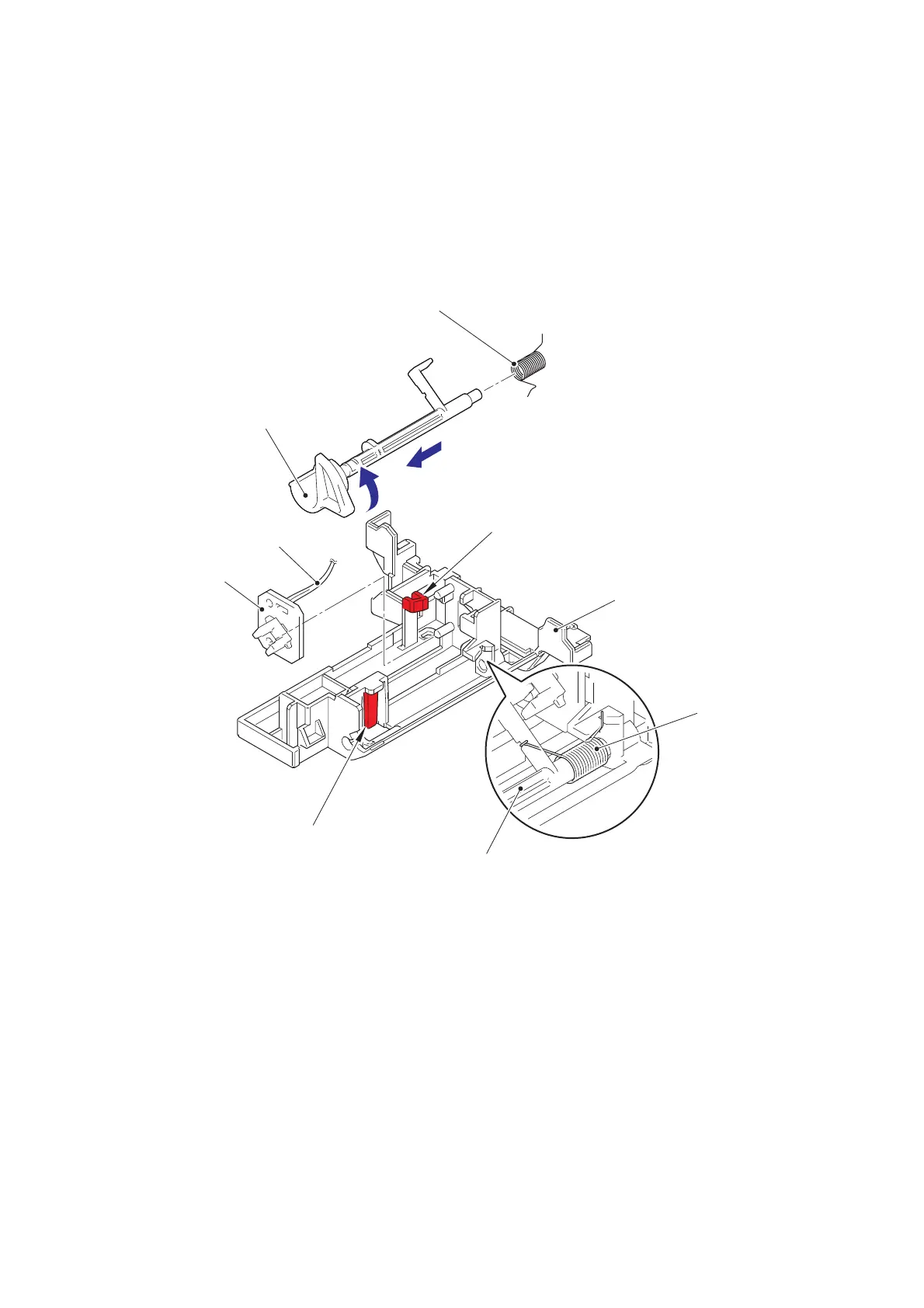

Fig. 3-115
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
T1 paper feed actuator
T1 paper feed
actuator holder
T1 paper feed actuator spring
T1 paper feed sensor harness
Hook
T1 paper feed sensor
PCB ASSY
4a
4b
Hook
T1 paper feed actuator
T1 paper feed
actuator spring
