7-4
Confidential

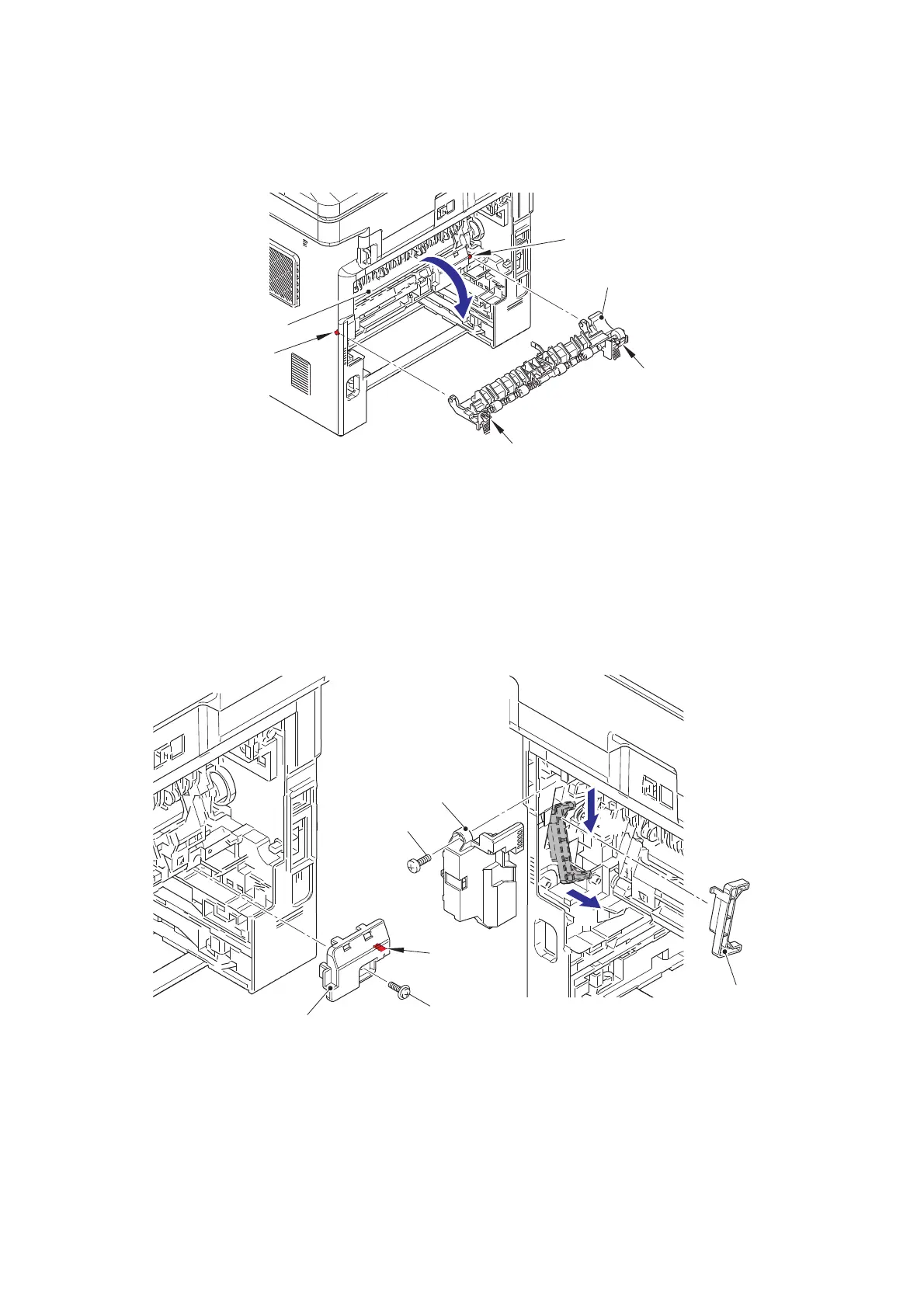

(5) Push the two knobs on the fuser cover, and pull the fuser cover down in the direction of
the arrow.
(6) Remove the fuser cover from the bosses on the fuser unit, and remove the fuser cover.
Fig. 7-4
(7) Remove the taptite bind B M4x12 screw, and remove the fuser unit line cover R.
(8) Open the front cover, and release the nip of the pressure roller.
(9) Slide the lower rear nip release link in the direction of the arrow 9b while pulling it in the
direction of the arrow 9a to remove the rear nip release link.
(10) Remove the taptite pan B M4x14 screw. Release the hook, and remove the fuser unit
line cover L.
Fig. 7-5
Fuser cover
Knob
Fuser unit
Boss
Knob
Boss
Fuser unit
line cover R
Fuser unit line cover L
<Frame R side><Frame L side>
Rear nip release link
Taptite pan B M4x14
Taptite bind B M4x12
Hook
9a
9b
